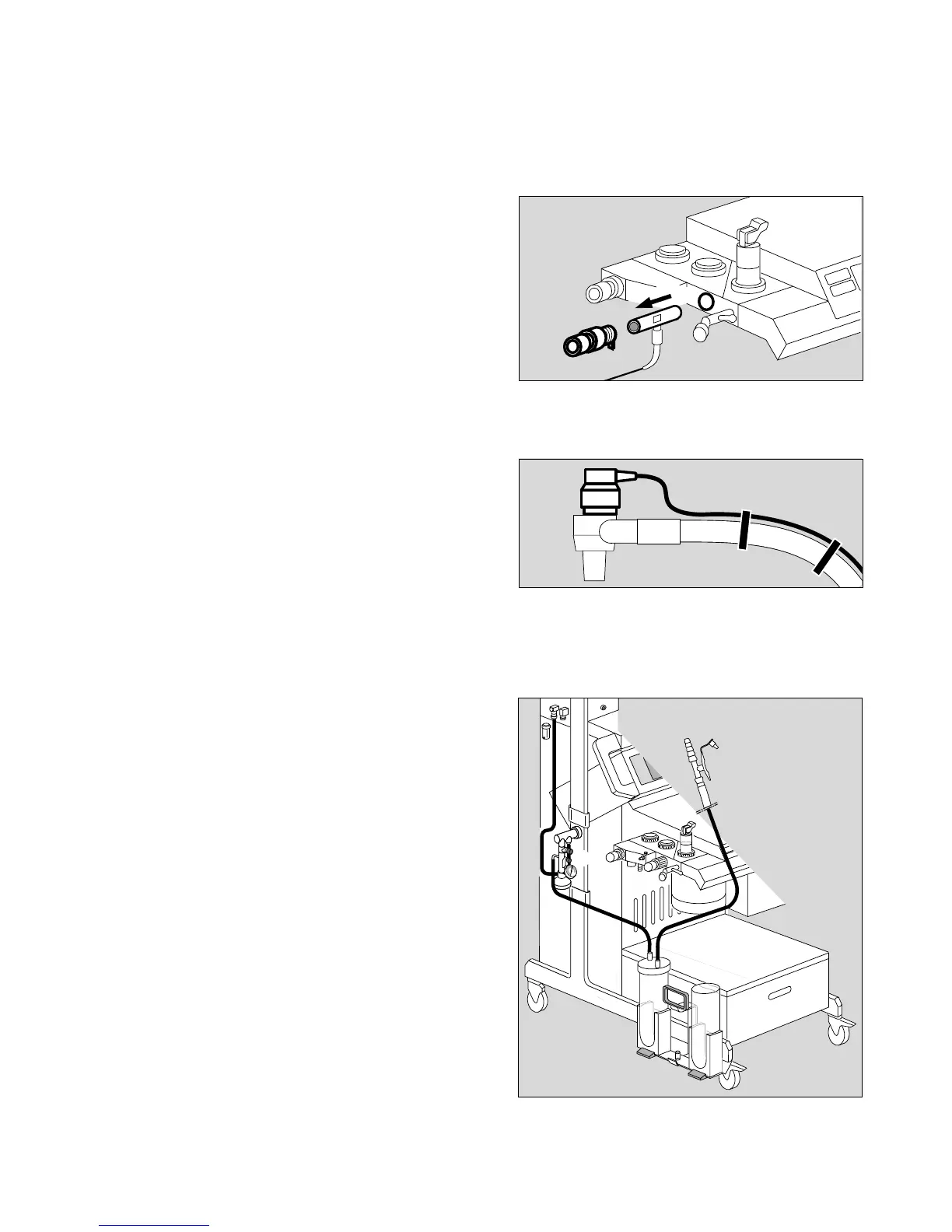

Fit flow sensor
1 Unscrew expiration nozzle.
2 Slide flow sensor into housing.
1 Screw expiration nozzle back into place.
Fit microbial filter
● Fit a microbial filter with ISO nozzle on both the
inspiration and expiration legs.
Fit temperature sensor
(Optional) with: Y-piece M 30 543 and
hose clips 84 04 047.
The T-piece must be used for anaesthetic gas measure-
ment in this case!
3 Insert temperature sensor 84 05 371 as far as
possible into the hole in the Y-piece.
After securing the Y-piece, align the sensor to face
upwards so that it remains free from condensation.
4 Route the sensor lead back to the machine with hose
clips along the inspiration hose of the anaesthetic
system.
Install secretion aspirator
● Position the secretion aspirator on the mount on the
frame with two secretion collecting vessels.
5 Install hose between negative pressure outlet and
secretion collecting vessels.
6 Connect the gas outlet on the Cato to the ejector.
7 Plug the aspiration hose with handpiece onto the inlet.
● Secure the aspiration hose in the clamp.
Secretion aspirator may only be used in
»MAN/SPONT« mode or with disconnected
Y-piece.
93
Care
Reassembling system
Fit flow sensor and microbial filter
Fit temperature sensor
Install secretion aspirator
3
4
4
D
G
A
S
7
5
6
1
2
[
