Vigor2860 Series User’s Guide
3
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
AN
1~6
Right
LED
Off The port is connected with 10/100Mbps
Switch on Rear Side (Available for Vigor2860L)

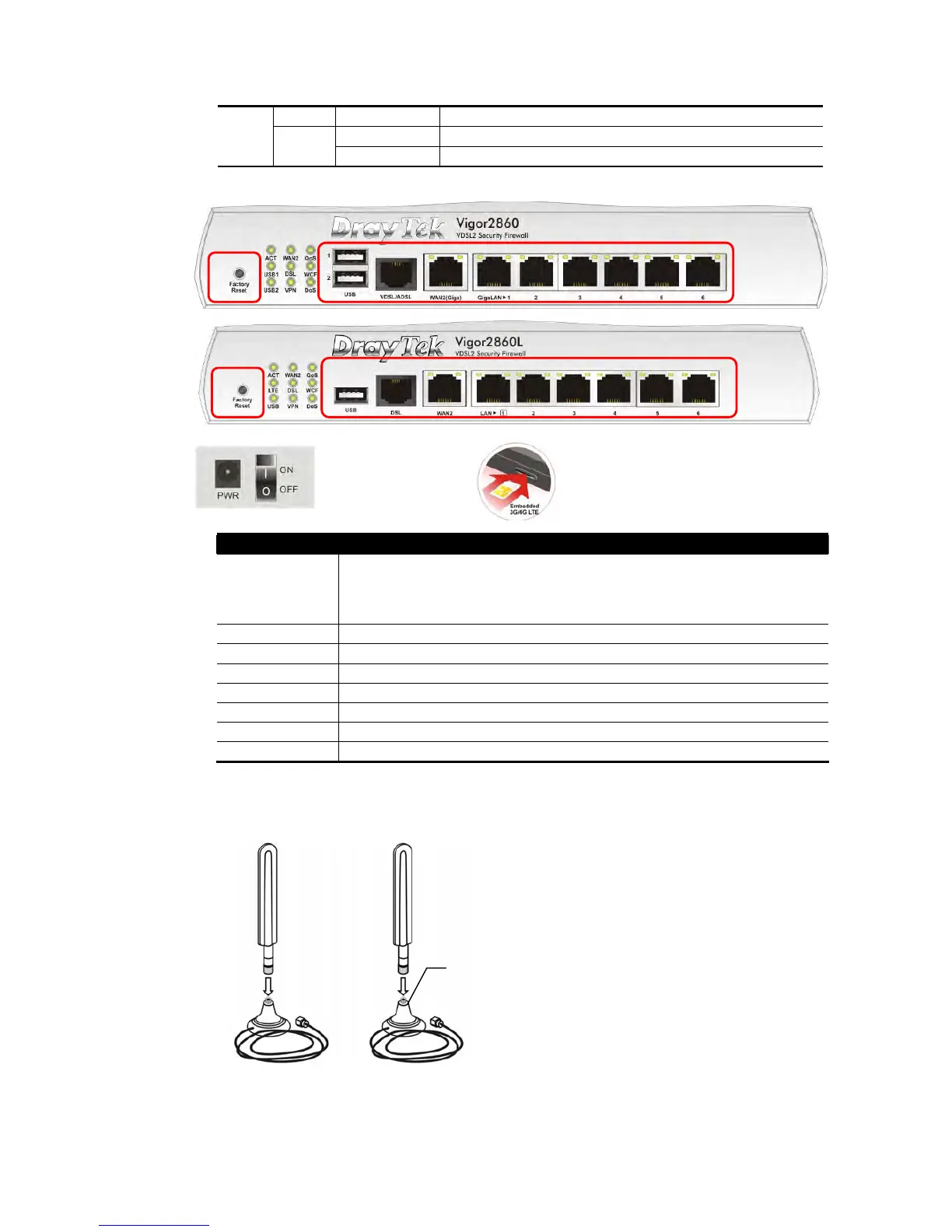

Interface Description
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is
blinking). Press the hole and keep for more than 5 seconds. When you
see the ACT LED begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default configuration.
USB1~2 / USB Connecter for a USB device (for 3G/4G USB Modem or printer).
VDSL/ADSL Connecter for accessing the Internet.
WAN2 Connecter for local network devices or modem for accessing Internet.
GigaLAN (1-6) Connecters for local network devices.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
SIM Card Slot Connector for a SIM card.
