Other Functions

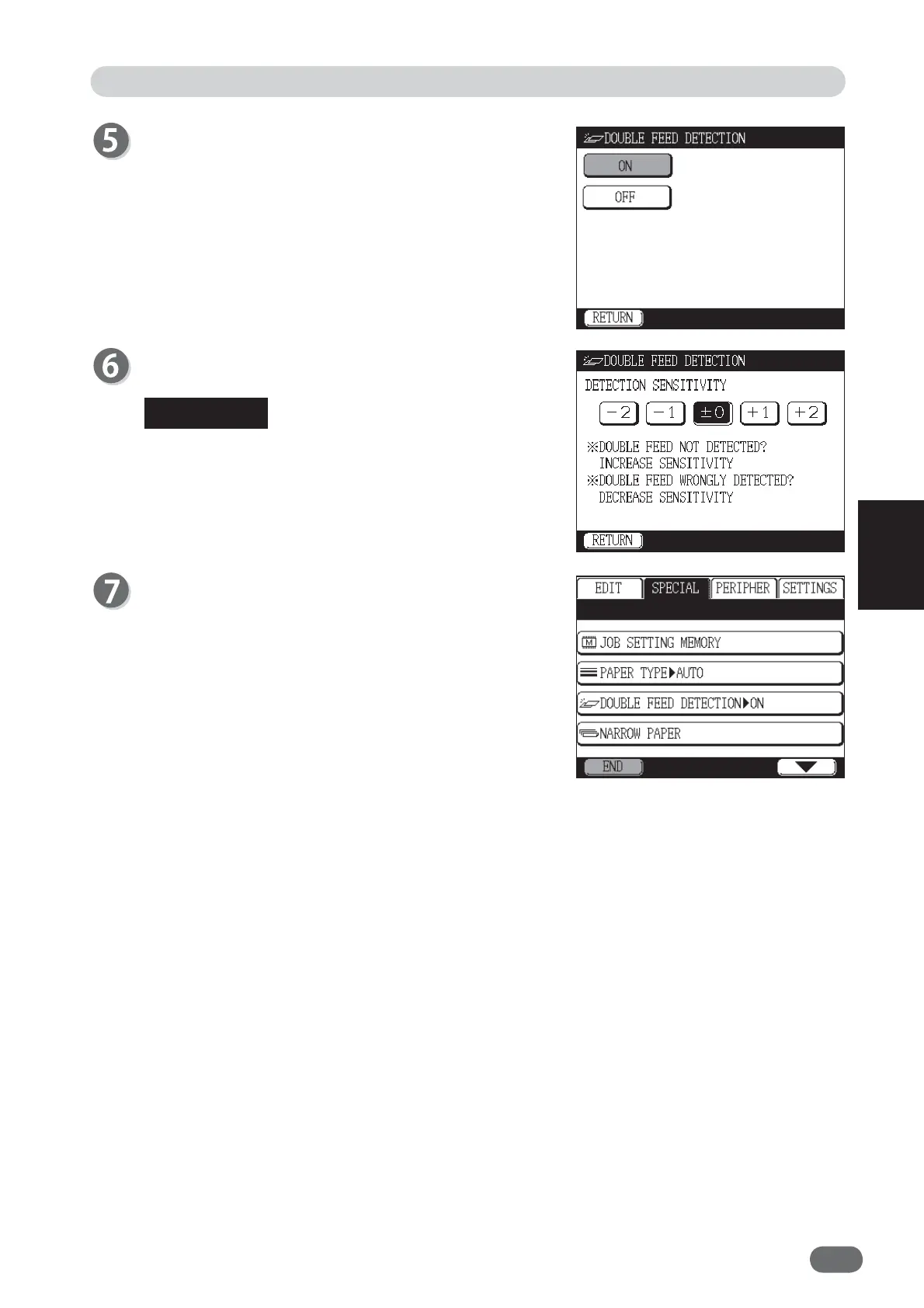

Select detection sensitivity
.
“DOUBLE FEED DETECTION” is set.
●
When double feed is not detected adequately
,
increase detection sensitivity
.
●
When double feed is wrongly detected, decrease
detection sensitivity
.
T
ouch "END".
Special Function: Double Feed Detection
T
ouch "ON".
REFERENCE
126
128
