Replacing Consumables

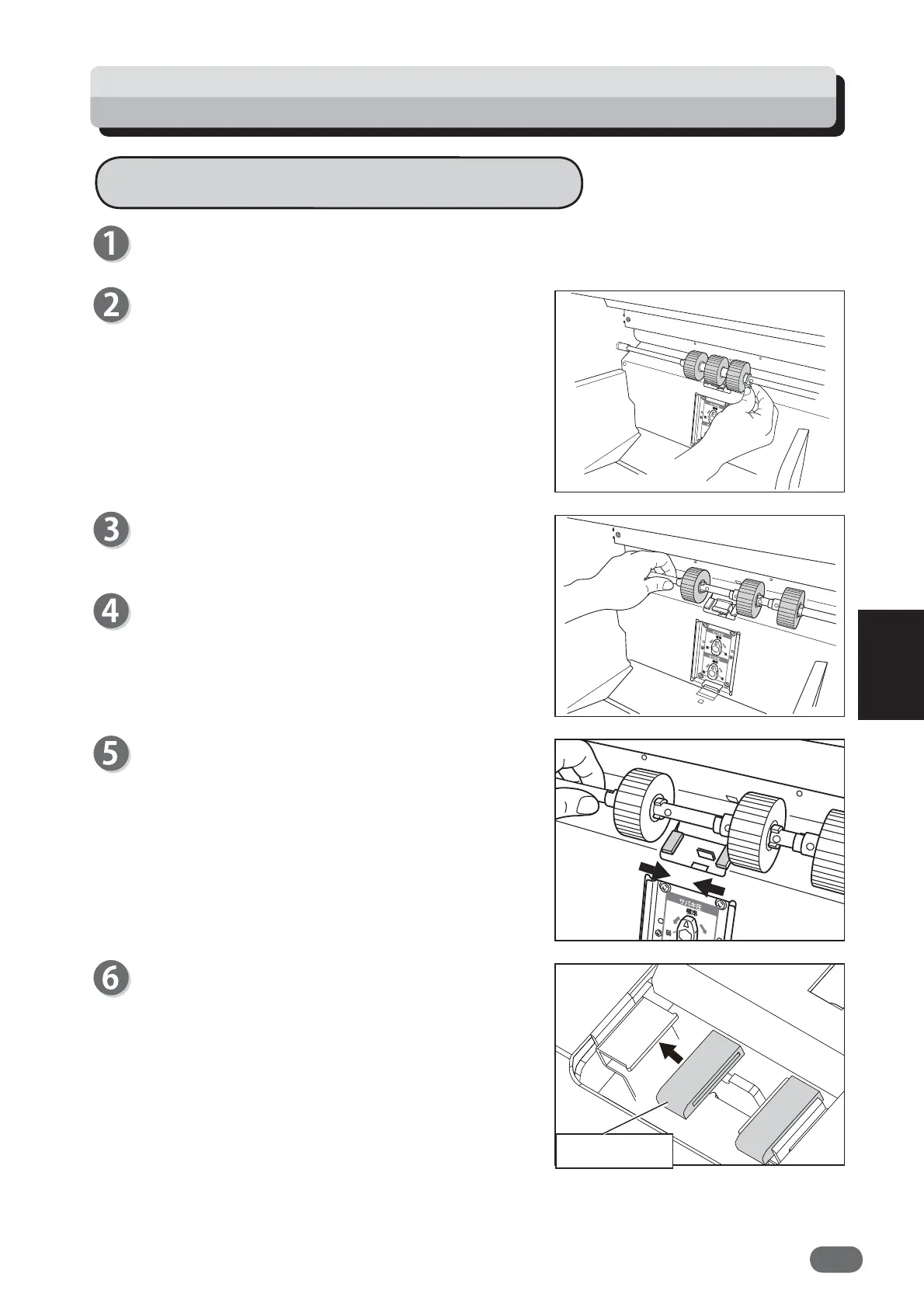

Replacing Side Separator Unit
Replacing Side Separator Unit
Turn off the power to the machine.
Pull the “clip” on the right side of the right paper
feed roller towards you.
Slightly lift up the “shaft” as shown in the right picture
and move the “right paper feed roller” and the ”center
paper feed roller” to the right side.
Remove the "separator unit".
Be careful of installing direction of the
"side separators".
Remove the "side separators" and replace it with
new ones.
V3M0534
V3M0535
V3M0536
Chamfered side
fore and up
V3M0537
To Next Page
