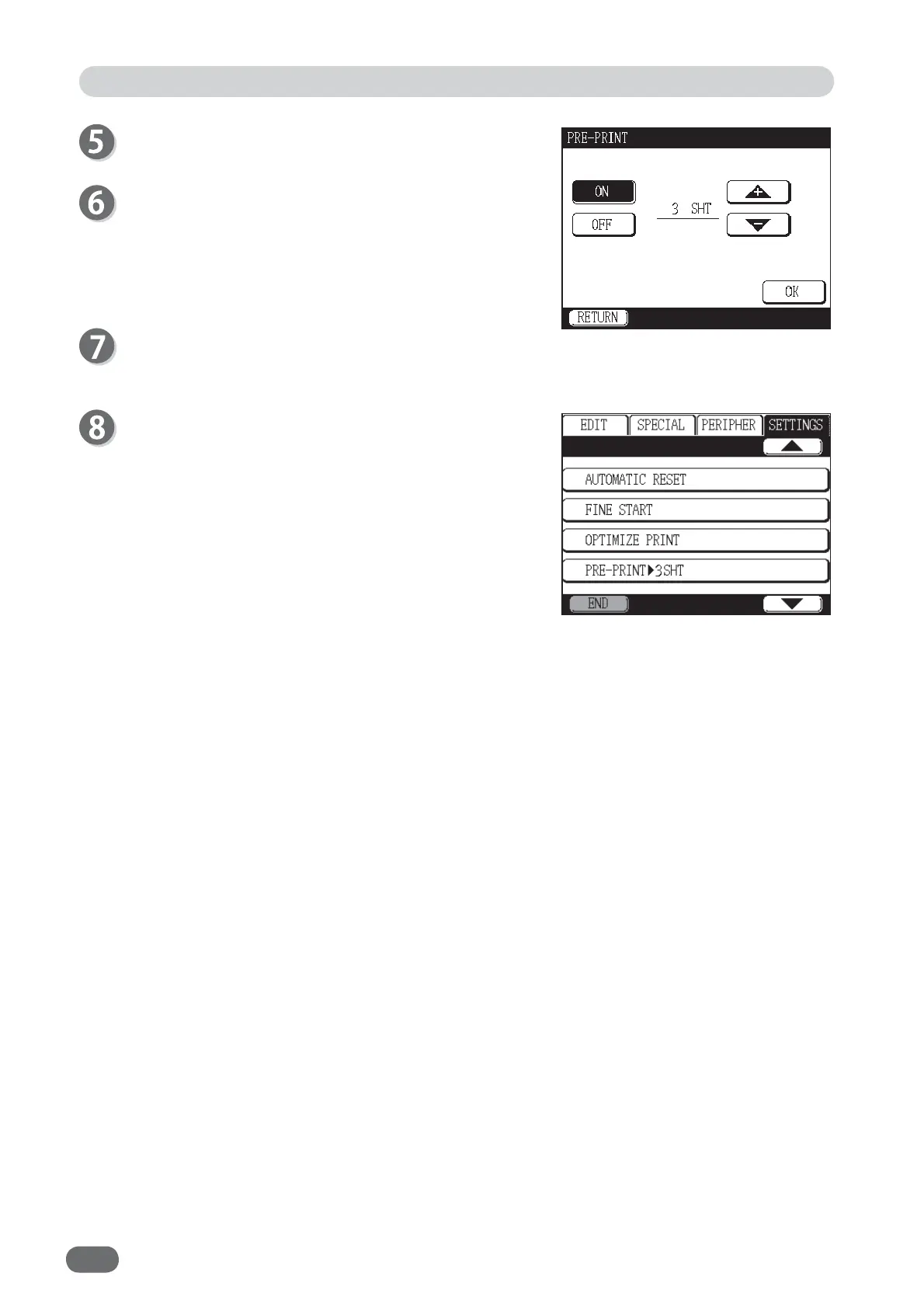

150
T
ouch "ON".
Set the number of pre-print.
T
ouching “+” increments the value.
T
ouching “-” decrements the value.
Y
ou can set the number from 1 to 99 sheets.
The value can be also entered using the NUMERIC
keys.
T
ouch "OK".
"PRE-PRINT" is set.
T
ouch "END".
Setting Function: Preprint
167
169
Table of Contents
Default Chapter
6
Notes on Safety (Please Read and Observe)
6
Safety Precautions
6
Precautions for Use
6
Locations of Warning Labels
11
Function Index
13
Chapter 4 Chapter 3
17
Other Functions
17
Table of Contents
19
Before Use
19
Chapter 1 Part Names and Their Functions
26
Printer Appearance
26
Inside of Machine
27
Outside/Inside of Print Output Side
28
Control Panel (DP-U850/U650/U620)
30
Control Panel
30
Main Screen
31
Turning Power ON/OFF
32
Turning Power on
32
Turning Power off
32
Key Card Counter (Optional)
33
Standard Mode
33
Document/Printing Paper Specifi Cations
34
Acceptable Documents
34
Acceptable Printing Paper
34
How Master Making and Printing Are Performed
36
Master Making
36
Printing
36
Chapter 2 Basic Operations
37
Preparing for Printing
38
How to Set Papers
38
When no Heavy Weight Paper Is Fed or Two Sheets of Light Weight Paper Are Fed
39
How to Supply or Replace Paper While Printing
40
How to Set the Print Tray
41
Loading Documents
42
How to Load Document
42
How to Load Document on the Glass Plate
42
How to Load Document on the Document Glass Plate
42
Loading Document in Automatic Document Feeder (ADF)(Optional)
43
Basic Printing
45
Printing Using Basic Functions
45
Enlargement/Reduction
47
Enlargement and Reduction from Standard-Size Documents to Standard-Size Paper[European]
47
Enlargement and Reduction from Standard-Size Document to Standard-Size Paper [European]
47
Enlargement and Reduction from Standard-Size Document to Standard-Size Paper [U.S.]
48
Selecting Printing Paper Size
49
Master Making Area by Paper Size [European]
49
How to Set Paper Size
49
Master Making Area by Paper Size [U.S.]
50
How to Set Paper Size
50
How to Set "CUSTOM" in Paper Size Setting
51
Print Speed Adjustment
52
How to Adjust Print Speed
52
How to Set TOP SPEED
53
Chapter 3 Enlargement / Reduction
56
Minor Reduction
57
Auto Zoom
58
Free Zoom
60
Custom Scaling
61
Adjusting Darkness
63
Scan Darkness
63
How to Adjust Scan Darkness
63
Adjusting Darkness Adjusting Darkness
63
Master Darkness
64
How to Adjust Master Darkness
64
Print Darkness
65
How to Adjust Print Darkness
65
Printing Photographs and Color Documents
67
Text, Text>Photo, Photo>Text, Photo, Pencil, Screen
67
Adjusting Print Position
69
Print Position Adjustment
69
Adjusting Print Position Print Position Adjustment
69
Edit Function
71
Preview
72
Checking Document to be Printed
72
Edit Function Preview
72
Multiple Exposure
75
Multiple Exposure on One Page
75
How to Set Multiple Exposure (2, 4, 8, and 16-Up)
77
One Page
79
How to Set 2 IN1
80
Custom
82
How to Set Custom
82
Book Shadow Erasure
84
Area of Shadow Erasure
85
How to Set Book Shadow Erasure
86
90° Rotation
89
How to Set 90° Rotation
89
Edit Image
91
Make up
91
How to Set Make up
92
Add Make Up,Switch Erase Area,New Make up
103
Trimming
107
How to Set Trimming
107
Document Memory
110
How to Set Document Memory
110
Document Size
112
How to Set Document Size
112
How to Set "Custom" in Document Size
113
Special Function Job Setting Memory
114
Job Setting Memory
114
Setting Functions
116
Retrieving Settings
119
Clearing Settings
122
Paper Type
124
How to Set Paper Type
124
Double Feed Detection
126
How to Set Double Feed Detection
126
Narrow Paper
128
How to Set Narrow Paper
128
Ink Saving Mode
130
How to Set Ink Saving Mode
130
Replenish Ink
132
Replenishing Ink
132
How to Replenish Ink
132
Confi Dential Safeguard
134
How to Set Confi Dential Safeguard
134
Document Darkness Detection
136
How to Set Document Darkness Detection
136
Interval Print
138
How to Set Interval Print
138
Batch Print Sequential Batch Print
140
Batch Print/Sequential Batch Print
140
How to Set Batch Print / Sequential Batch Print
141
How to Enter Batch Print / Sequential Batch Print
142
Separating Prints with Tape Strips(Available Only with Tape Cluster Unit)
143
Document Misset Detection
144
How to Set Document Misset Detection
144
Peripheral Function Online Mode
146
Online Mode
146
Making Prints Using Personal Computer
146
How to Set Online Mode
146
How to Cancel Reprint When in Manual Setting
147
Tape Cluster
148
Using Tape Cluster
148
How to Set Tape Cluster Mode
148
Drum Size
150
How to Set Drum Size
150
Setting Function Initial Confi Guration
152
Initial Confi Guration
152
How to Set Initial Confi Guration
152
Default Setting
153
Shortcut Setting
155
Energy Save Mode
157
How to Set Energy Save Mode
157
Automatic Power off
159
How to Set Automatic Power off
159
Automatic Reset
161
How to Set Automatic Reset
161
Fine Start
163
How to Set Fine Start
163
Optimize Print
165
How to Set Optimize Print
165
Pre-Print
167
How to Set Pre-Print
167
Repeat Counter
169
How to Set Repeat Counter
169
Print Position Adjustmen (While Printing)
171
Print Position Adjustment While Printing
171
Print Position Adjustment (While Printing)
171
How to Set Print Position Adjustment While Printing
171
Date & Time
173
How to Set Date & Time
173
Buzzer
175
How to Set Buzzer
175
LCD Reversing
177
How to Set LCD Reversing
177
Information
179
How to Confi Rm Information
179
Replacing Ink Pack
182
How to Replace Ink Pack
182
Replacing Roll Master
184
How to Replace Roll Master
184
Replacing Ink Pack
184
How to Dispose of Used Masters
187
Replacing Drum Unit
189
How to Remove Drum Unit
189
How to Set Drum Unit
190
Replacing Separator Unit
192
Replacing Side Separator Unit
193
Troubleshooting
195
Chapter 6
196
If Trouble Occurs
196
When Messages Appear
197
Supplying Paper While Printing
200
If Paper Runs out During Printing
200
Changing Paper Size
201
Paper Jams
203
Paper Jam on the Feeder Side (Feed Tray)
203
Paper Jams on the Feeder Side (Feed Tray)
203
Paper Jam on the Ejection Side (Print Tray Side)
204
Paper Adhering to Drum
205
When "MASTER EJECTION ERROR" Is Displayed
207
Removing the Master Adhering to the Drum
207
When Master Setting Error Has Occurred
210
How to Remove the Master
210
When "SET MASTER ROLL PROPERLY" Is Displayed
211
How to Set the Master Roll
211
Chapter 7
213
Daily Maintenance
213
Daily Maintenance
214
Specifi Cations / Information
215
Specifi Cations
216
Information on Replacing Battery
220
Chapter 8 Appendix
221
Index
222
