Set-up instructions
Operating manual 867 Version 01.0 - 12/2012 97
Fitting the Hall sensor
1. Remove the handwheel and handwheel cover.
2. Remove the valve cover.

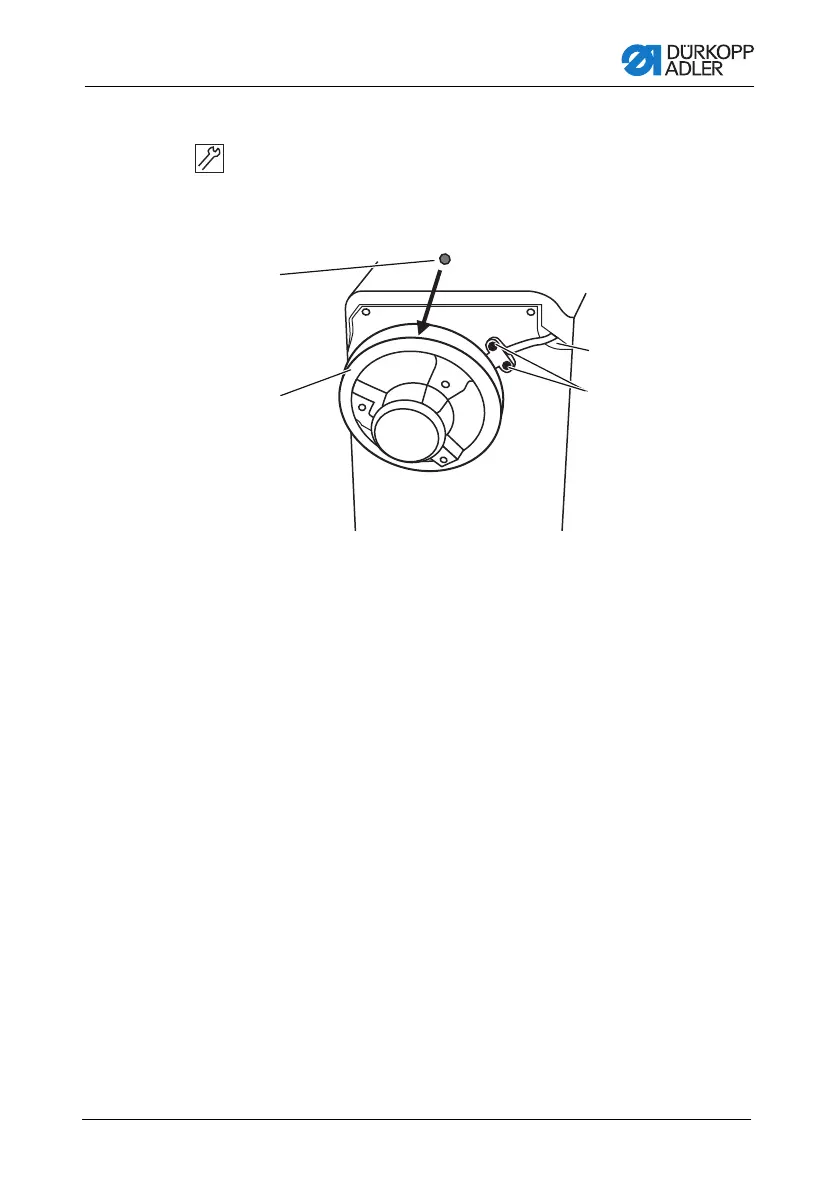

Figure 67: Fitting the Hall sensor
3. Fit the Hall sensor to the pre-drilled holes (3).
4. Feed the Hall sensor cable through the cable opening (4) down
to the controller
5. Check if a magnet is already fitted to the pulley wheel (2).
If a magnet is not already fitted:
Fit the magnet (1) provided in the Hall sensor accessory pack.
6. Insert the Hall sensor plug into socket B18 of the respective
controller. The connection diagram is provided in the
Operating manual for the respective controller:
• Efka DC1550/DA321G controller:
The operating manual is provided in the controller acces-
sory pack.
• DAC ECO and DAC CLASSIC controllers:
The operating manual is provided in the controller acces-
sory pack.
The operating manual is also available in the download
area at www.duerkopp-adler.com.
1
2
4
3
(1) - Magnet
(2) - Belt pulley
(3) - Pre-drilled holes
(4) - Cable opening
