CHAPTER 3
Extended Carriage
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
3-18
INSTALLING THE EXTENSION SUPPORT AND TRIKE CARRIAGE ADAPTER ASSEMBLY
1 Secure the left and right brackets to the extension support brace mount using two
3/8 x 1-inch hex bolts and two 3/8-16 nylock nuts each.
2 Secure each leveling mount using two 3/8-inch nuts.

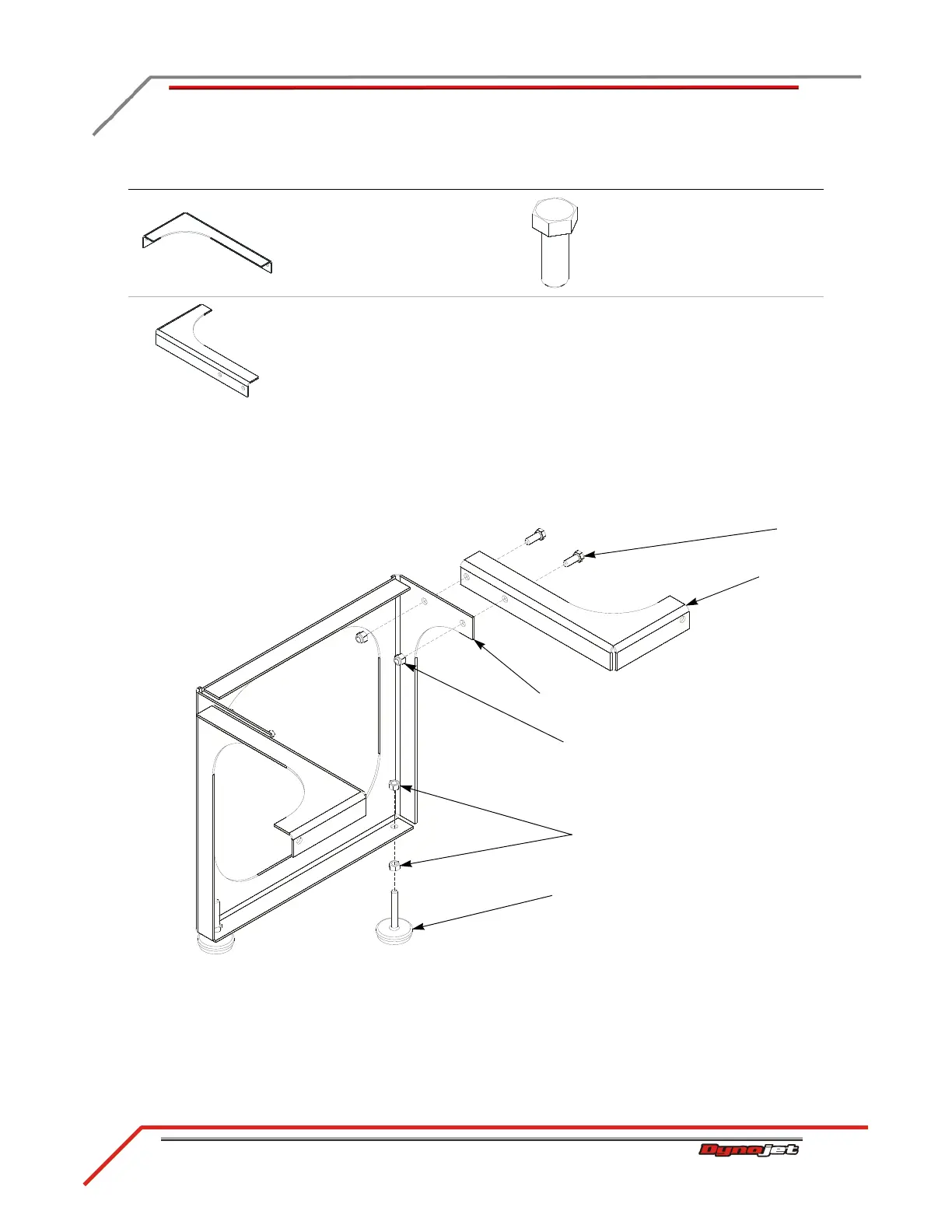

Figure 3-19: Assembling the Extension Support Brace
bracket, right
P/N 21200159
bolt, 3/8-16 x 1", hex (4)
P/N DM150-019-012
bracket, left
P/N 21200160
part description part description
extension support
brace mount
bolts
right bracket
nylock nut
leveling mount
hex nut
