Extended Carriage
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
3 Secure the extension support to the dyno using five 3/8 x 1/2-inch button-head
flange bolts.
4 Secure the extension support brace to the extension support and the dyno using
two 3/8 x 1/2-inch button-head flange bolts.
5 Use the leveling mounts to make the support brace snug against the floor.
6 Tighten the nuts to secure the leveling mounts.

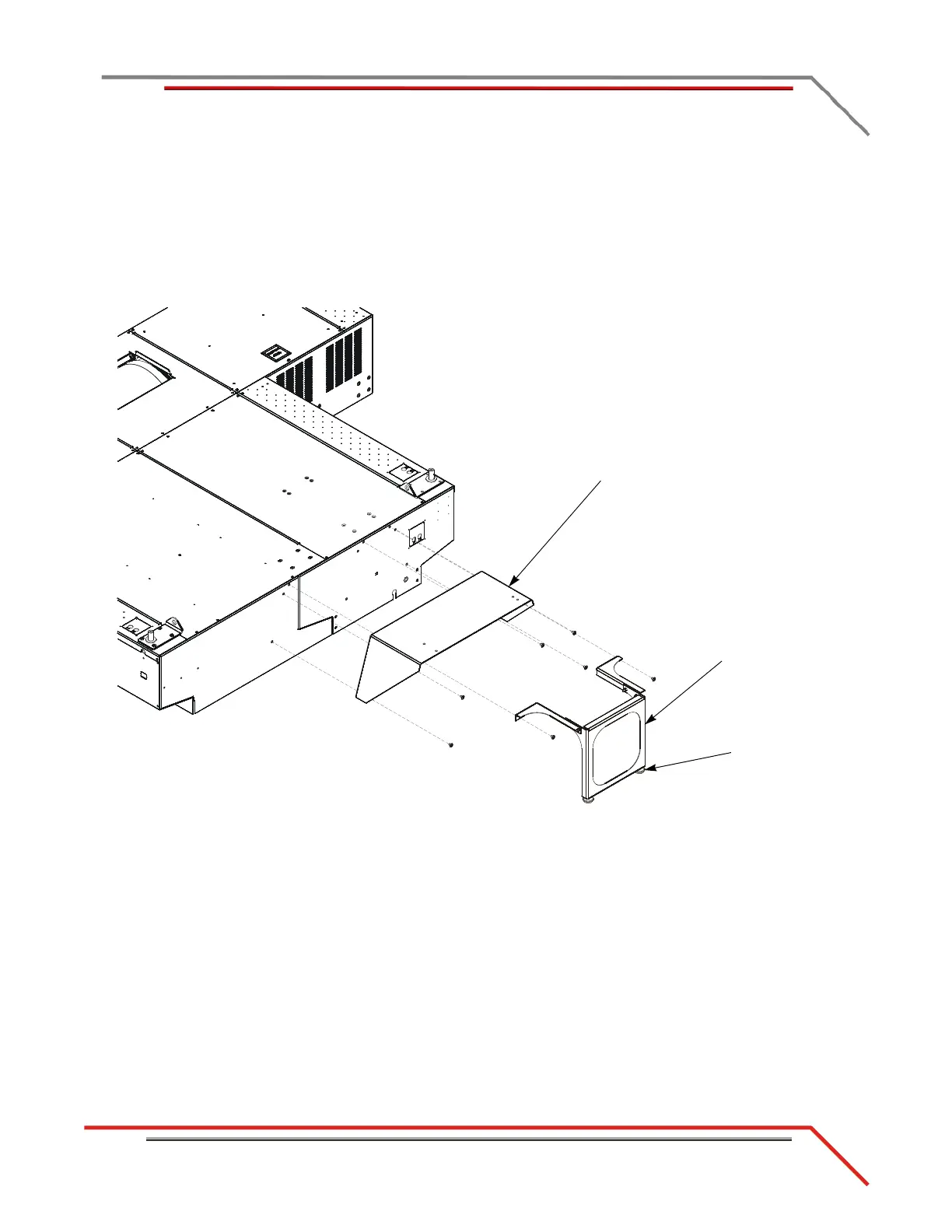

Figure 3-20: Installing the Extension Support and Brace
extension support
extension support
brace
leveling mount
