3-29
ACCESSORIES
Wheel Clamp
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
4 Bring the wheel clamp cable (three-pin connector) from the front of the dyno over
to the wheel clamp. Refer to “Routing the Power Carriage and Wheel Clamp
Cables” on page 2-38.
5 Install the wheel clamp cable strain relief to the side of the wheel clamp.
6 Plug the wheel clamp cable into the connector on the wheel clamp motor.

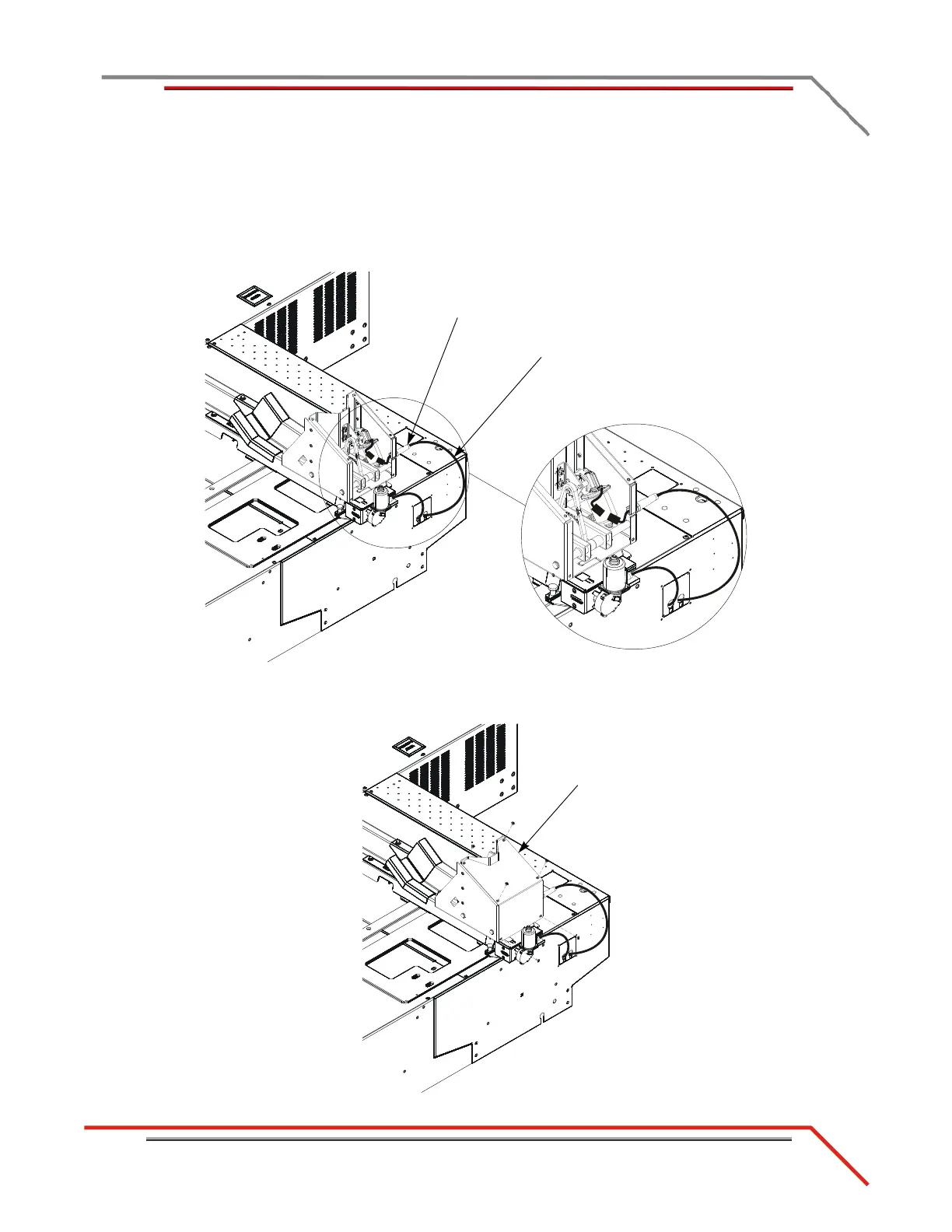

Figure 3-29: Install Wheel Clamp Strain Relief
7 Replace the wheel clamp cover.
Figure 3-30: Replace the Wheel Clamp Cover
WC014
strain relief
wheel clamp cable
WC015
cover
