RED HEAD ANCHOR INSTALLATION
Installation
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
3 Using a hammer, drive the anchor flush with the surface of the concrete, or below
the surface if the hole depth exceeds minimum embedment.

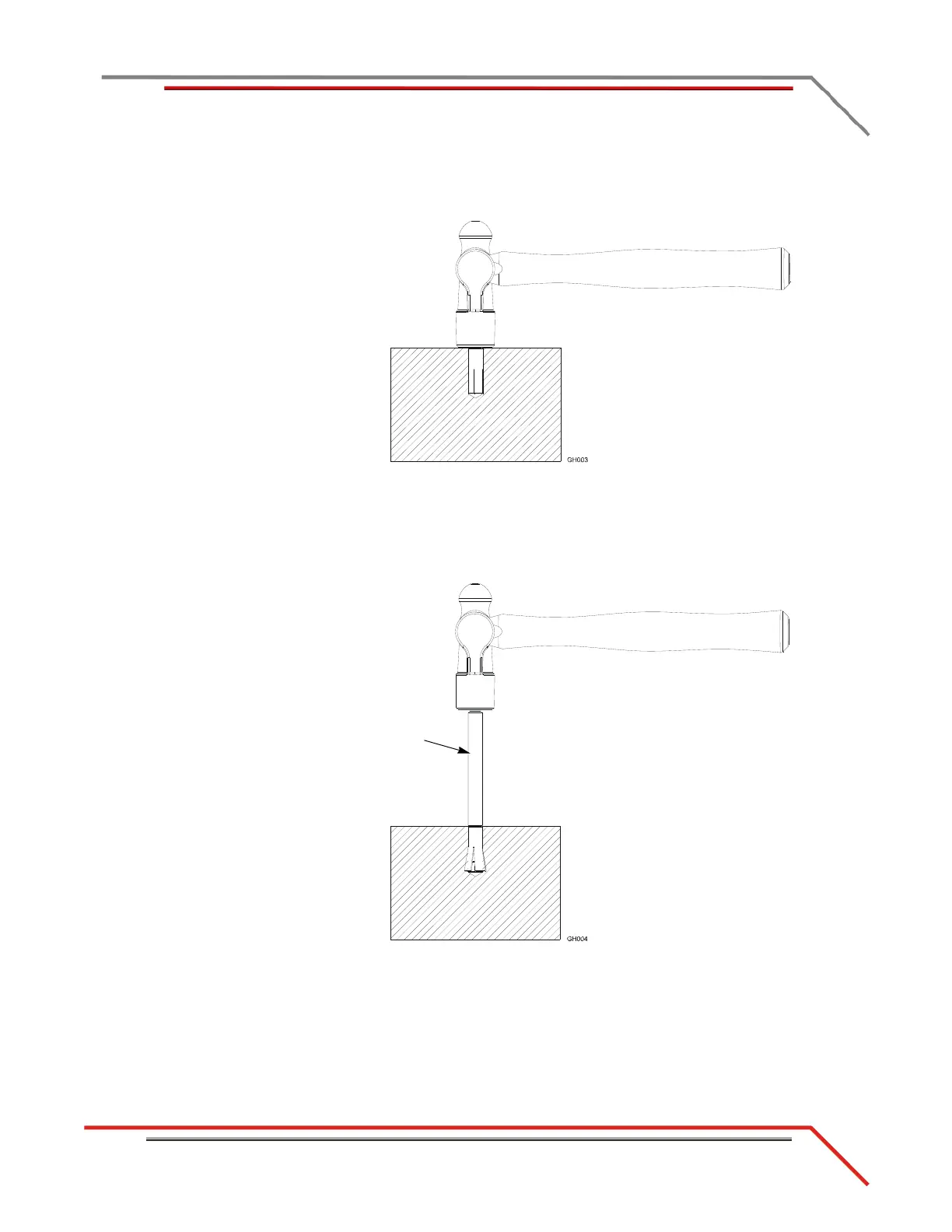

Figure A-3: Red Head Anchor—Drive the Anchor Flush
4 Using a hammer, expand the anchor with the setting tool. The anchor is properly
expanded when the shoulder of the setting tool is flush with the top of the anchor.
Note: Use only Ramset/Red Head setting tools to insure proper installation.
Figure A-4: Red Head Anchor—Expand the Anchor
