FOLDING RAMP INSTALLATION
Ramp Installation—Dyno
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
4 Slide the ramp up to the dyno.
5 Secure the top of the ramp to the dyno using the four button-head bolts removed
earlier.
6 Secure the sides of the ramp to the dyno using the two button-head bolts removed
earlier.

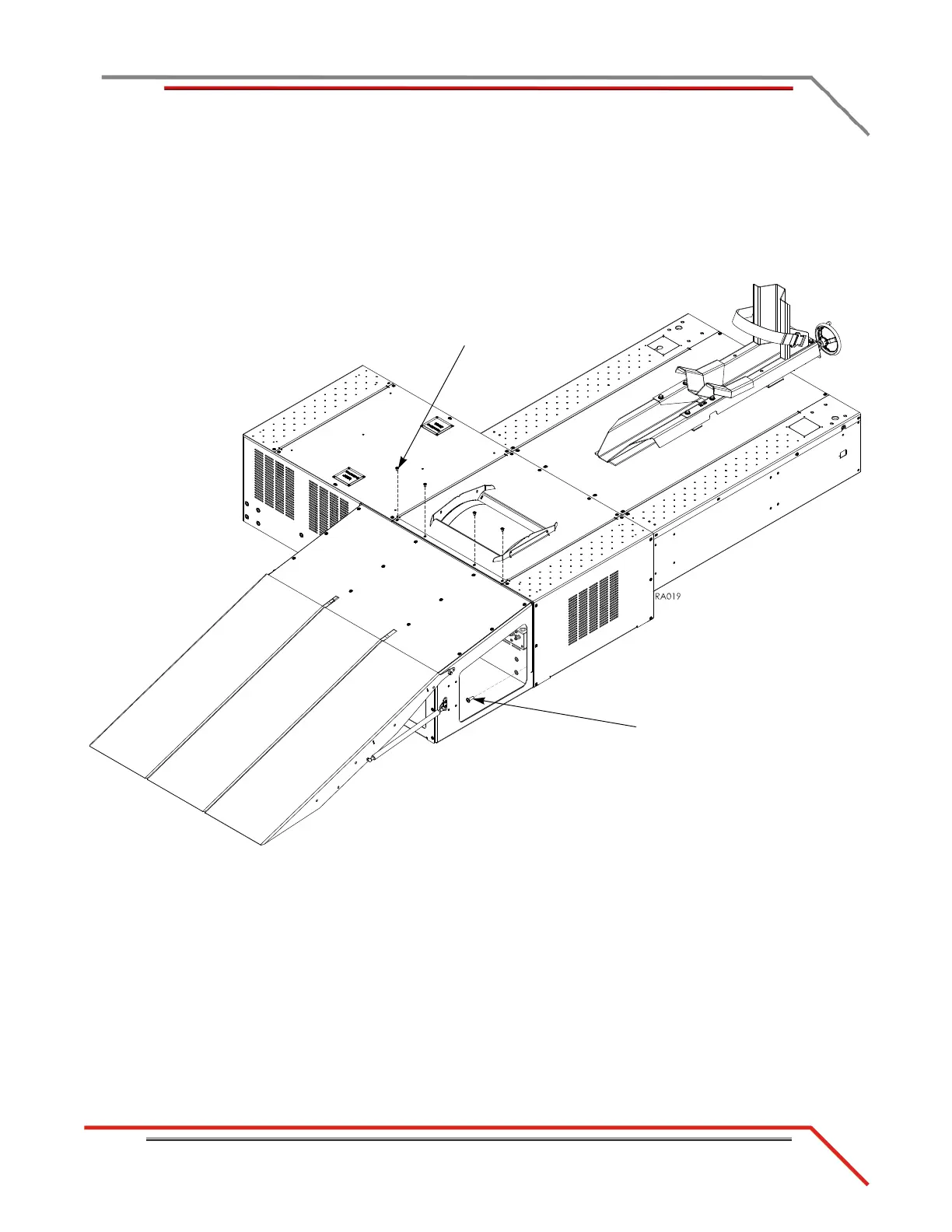

Figure D-9: Secure the Ramp to the Dyno
secure with four
top bolts
secure with two
back bolts
(only one visible)
