D-11
FOLDING RAMP INSTALLATION
Ramp Installation—iX Upgrade
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
5 Secure the ramp panel to the iX ramp using four 1/4-20 x 5/8-inch pan-head torx
screws and four 1/4-20 nuts.
6 Secure the ramp panel to the dyno ramp using four 1/4-20 x 5/8-inch pan-head
torx screws and four 1/4-20 nuts.
Note: If the dyno ramp does not have the holes, drill four 1/4-inch holes.

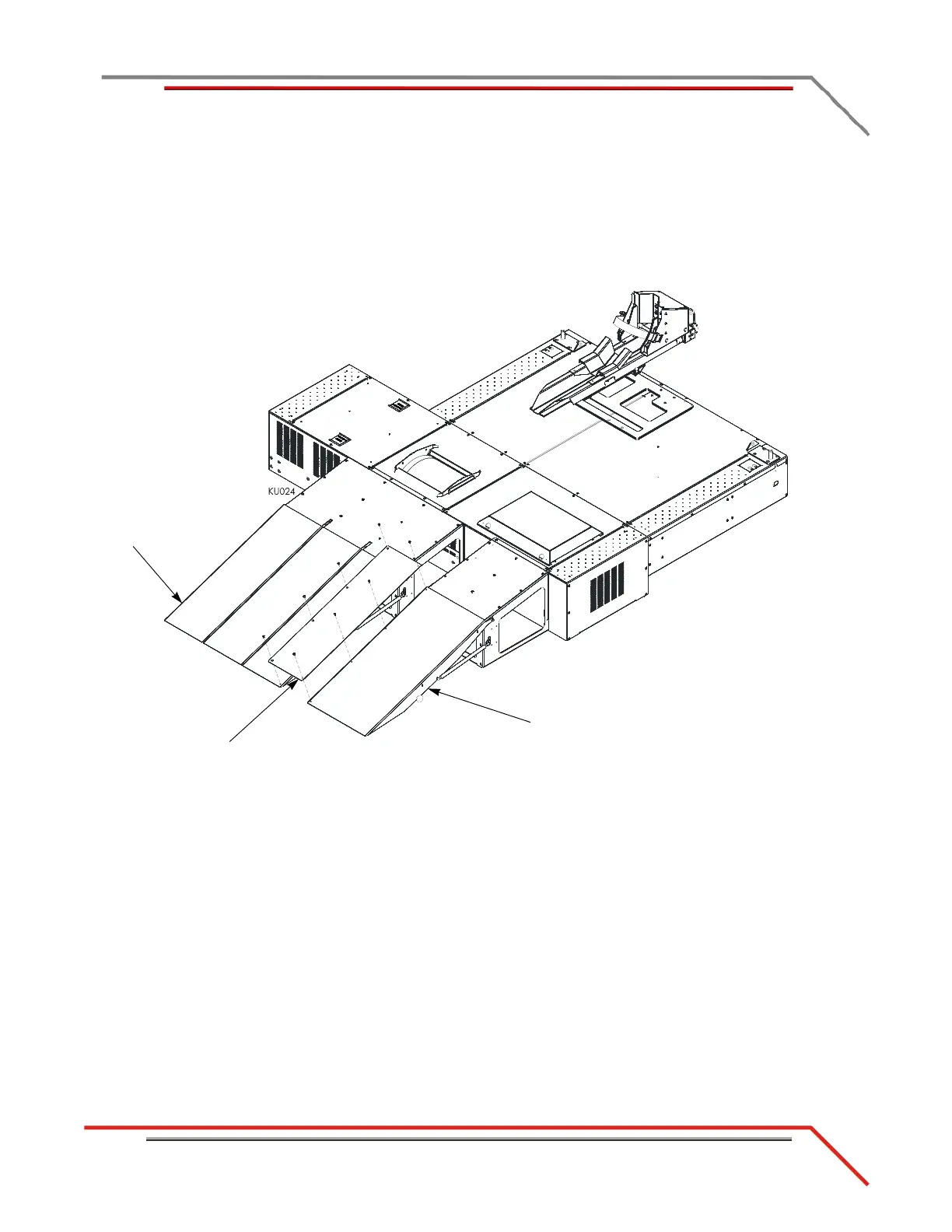

Figure D-11: Securing the Ramp Panel to the Ramp
iX ramp
ramp panel
dyno ramp
