INSTALLATION
Cable Routing
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
23 Remove the PCV CAN termination plug (U) from the front of the DynoWare RT
module and save for use with the PCV module.
23a Attach the PCV or OBD2 module using the CAN powersports cable (O).
23b Insert the PCV CAN termination plug (U) in the PCV module.
Note: If you are not using a PCV, be sure to save the PCV CAN termination
plug (U) for future use.

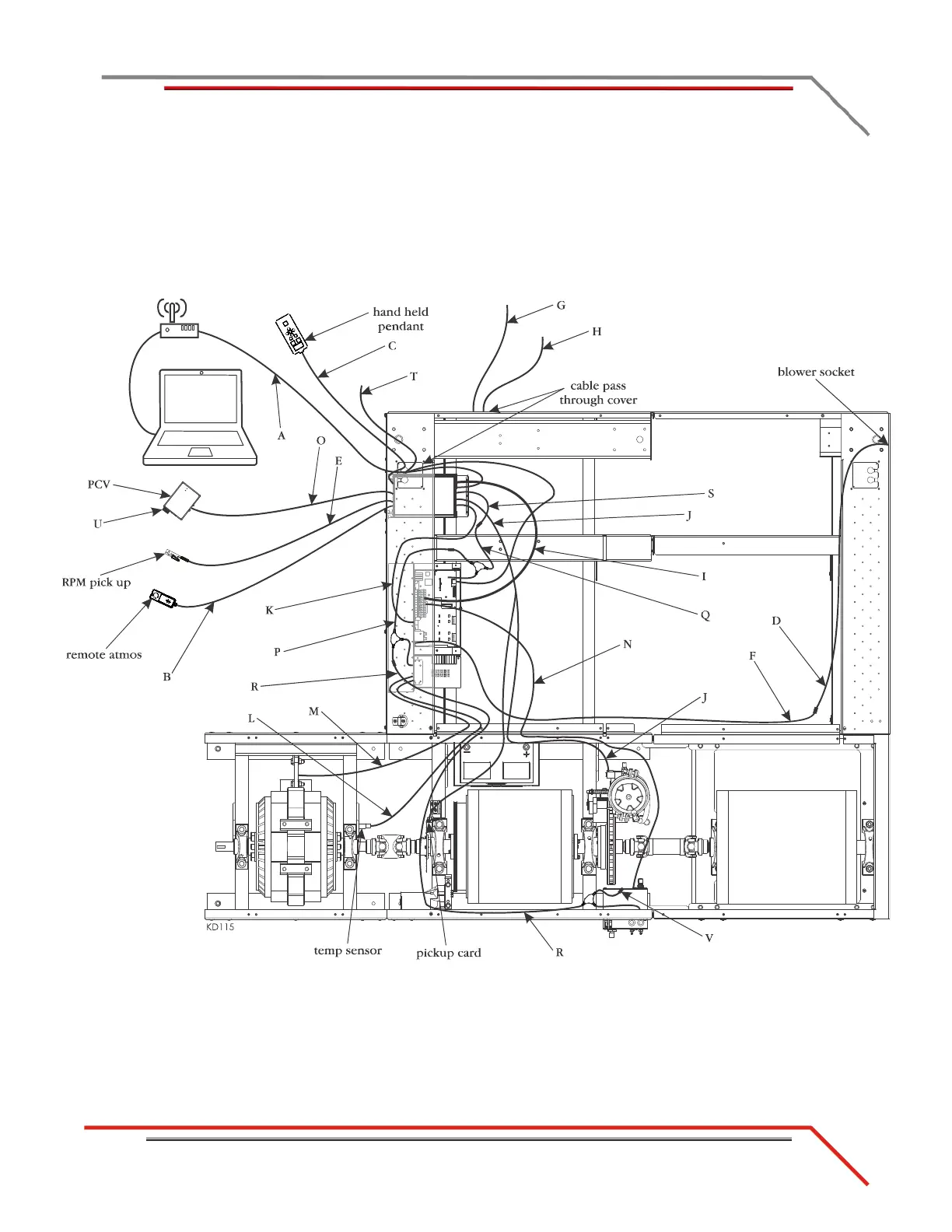

Figure 2-29: Routing the Cables
To Next Page
