INSTALLATION
Trike Carriage Adapter and Carriage Assembly
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
3 Starting from the back of the dyno, slide the carriage under the carriage clamps.
4 Slide the carriage screw and the bearing bracket toward the nut block until the
carriage screw is touching the nut block.
5 Slide the hand crank onto the end of the carriage screw.
6 Secure the hand crank to the screw shaft by tightening the set screw using a
5/32-inch allen wrench.
7 Using the hand crank, or the control panel to run the power carriage, run the
carriage screw through the nut block and into the screw support bracket on the
carriage assembly.
8 Secure the bearing bracket to the carriage assembly using the four
1/4-20 x 1/2-inch button-head screws removed earlier.
Note: If you ordered the power carriage accessory, refer to “Power Carriage” on
page 3-24 for installation instructions.

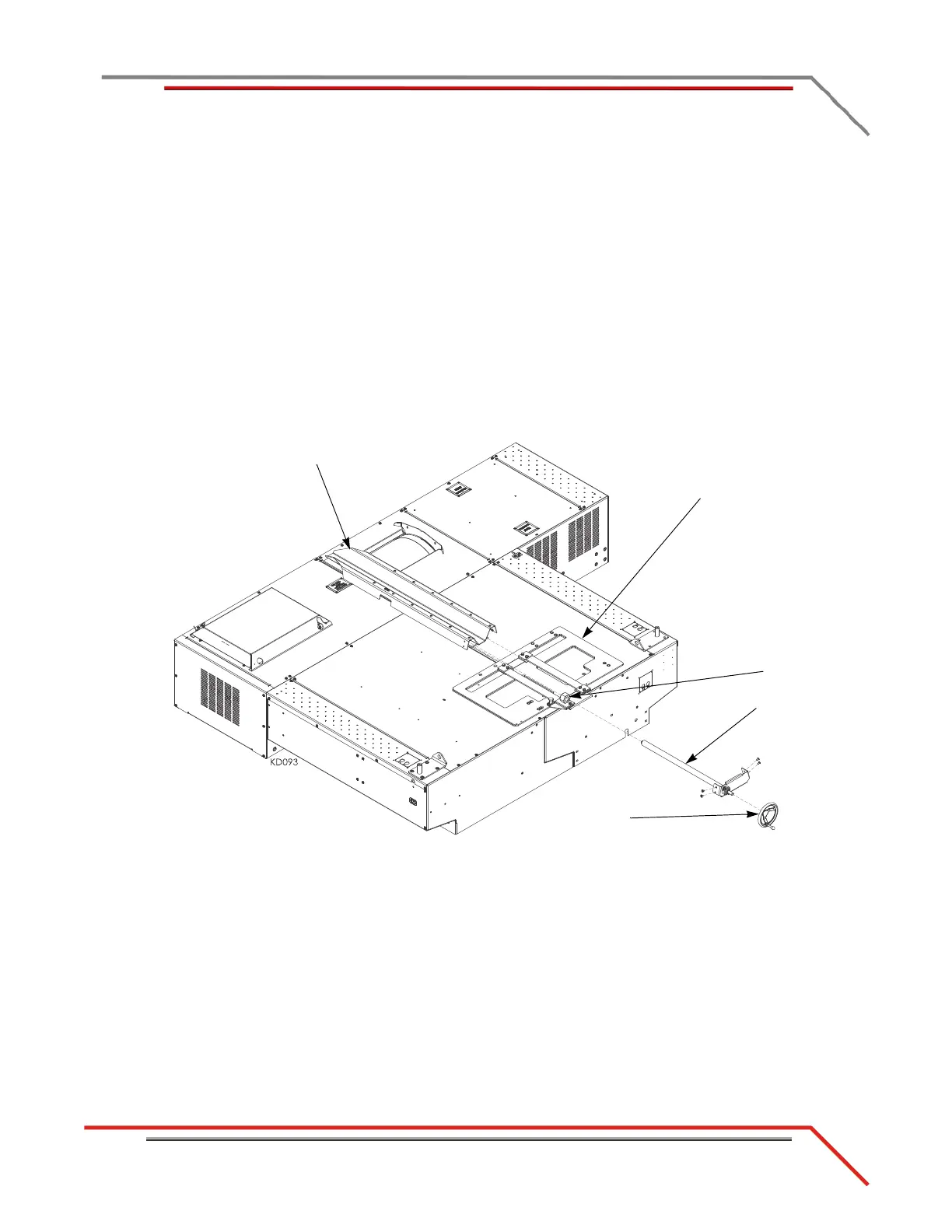

Figure 2-39: Installing the Carriage Assembly
carriage
trike carriage
adapter assembly
nut block
carriage screw
hand crank
