CHAPTER 2
Trike Carriage Adapter and Carriage Assembly
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
2-48
9 Secure the tire stop to the carriage using four 3/8-16 x 1/2-inch button-head
flange bolts.
10 Secure the tire lock to the carriage using four 3/8-16 x 1/2-inch button-head
flange bolts.
Note: If you purchased the wheel clamp accessory, refer to “Wheel Clamp” on
page 3-27 for installation instructions.

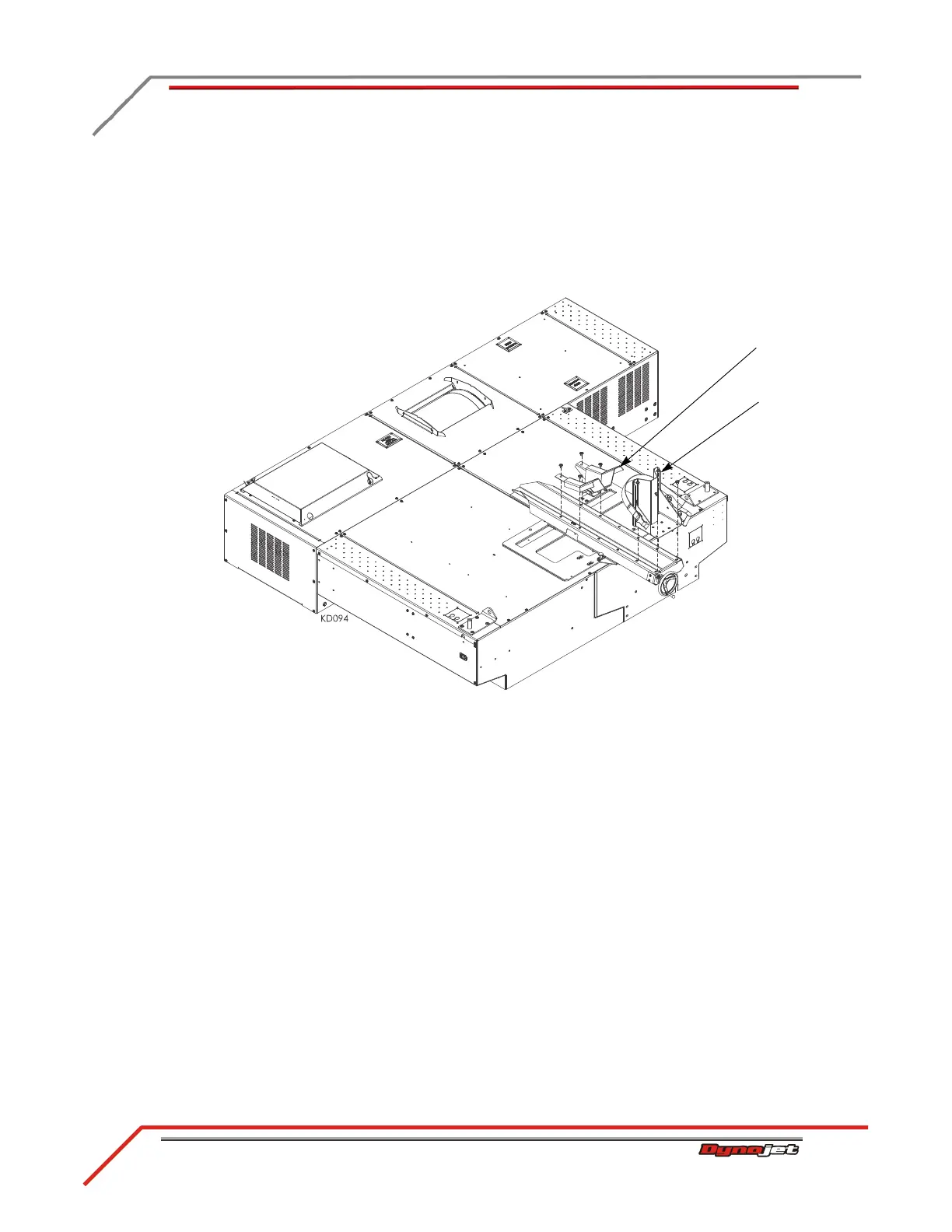

Figure 2-40: Install the Tire Lock and Tire Stop
