Eaton easy500, easy700

6  Internal
6.8 Soft
200 Operating instructions 05/10 MN05013003Z-EN www.eaton.com
6.8 Soft
easySoft-Basic and easySoft-Pro are PC programs for creating, testing and
managing easy circuit diagrams.
6.8.1 Program transfer between Soft and 500/700

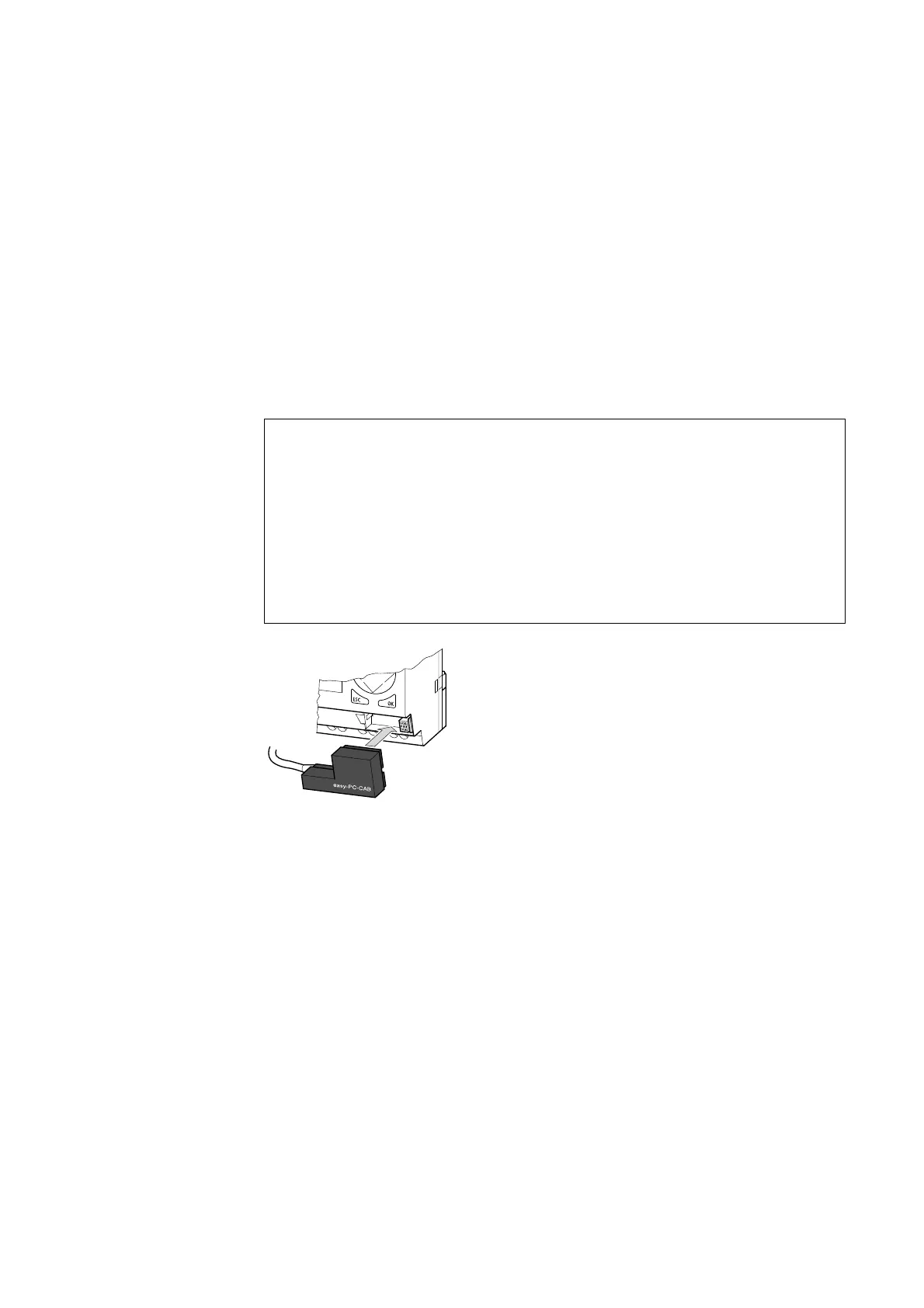

Figure 100: Plug in programming cable
▶ Connect the programming cable to the serial PC interface.
▶ Fit the easy plug into the opened multi-function interface.
▶ Activate the Status display on the easy.
The easySoft-Basic or
easySoft-Pro programming software allows you to transfer circuit diagrams
from the PC to the easy device or vice versa. You can also switch the device
to RUN mode from easySoft in order to test the program in the actual wiring.
￫
To transfer data between the PC and easy500/700 devices, only
use the original programming cable supplied as an accessory:
• EASY-PC-CAB or
• EASY-USB-CAB

DANGER
There is a danger of electric shock on easy AC devices if the L
phase conductor and N neutral conductor are reversed.
For your safety:
• Use of this original programming cable ensures that the PC
terminal is electrically isolated from the connection voltage
of the L phase conductor (100 to 240 V AC) if the phase
conductor and neutral conductor are reversed. The original
programming cables are optocoupled.
￫
easy cannot exchange data with the PC while the circuit
diagram display is on screen.
