Eaton SmartWire-DT SWD Series User Manual

4 PKE-SWD-32, interface for motor-starter combination with PKE PKE12/32
4.9 Programming
118 SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com

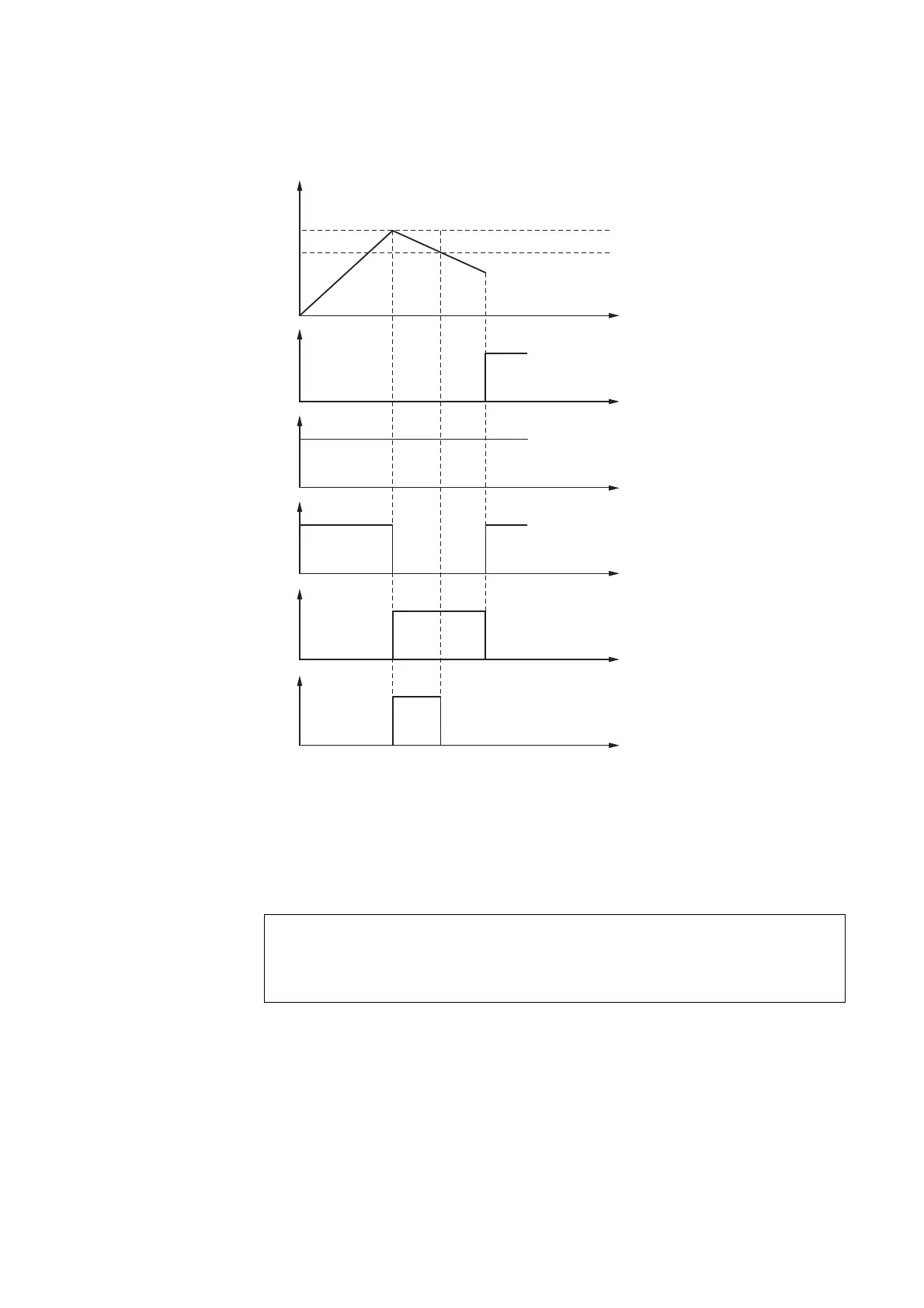

Figure 53: Acknowledgement of manual ZMR operating mode by changing the ZMR mode
a Thermal motor image
b ZMR M/A bit field status
c Switch command for contactor
d Switch status Contactor
e ACKR bit field status
f Trip indication: Overload with tripped ZMR function
ACHTUNG
The ZMR function cannot be deactivated until the thermal motor
image falls below the 100 % mark.
100%
110%
f
e
d
c
b
a
