ECD WaveRIDER Series User Manual

WaveRIDER 173
Maximum (+) Slope is the largest positive slope measured using a 2% of the total
points in the Profile length (x-axis) differential. Thus, the equation for slope calculation is
as follows:
Slope at point X = (Value at point (X + 10) – Value at point X) / (10 * Log interval in
seconds)

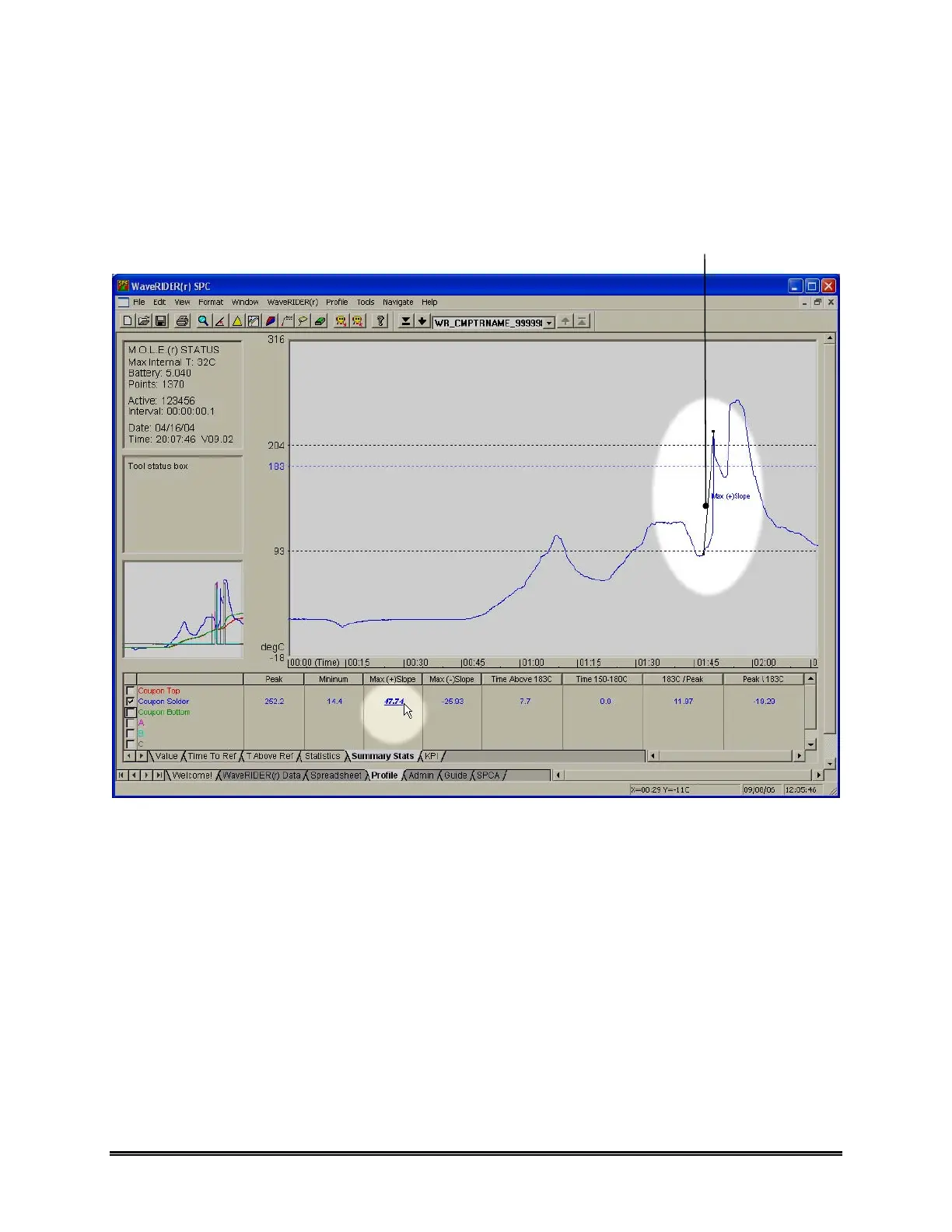

Figure D- 3: Max (+) Slope
The values below are the largest positive slope values calculated for each channel. The
larger the slope, the faster the temperature is increasing (heating).
MAX (+) SLOPE
