Data analysis
If you have racing track data saved on a pendrive, you can analyse it further using Windows
software. After inserting a pendrive into a computer USB port, select an option from the
Devices/Receive log file menu or use the SHIFT+F4 shortcut.

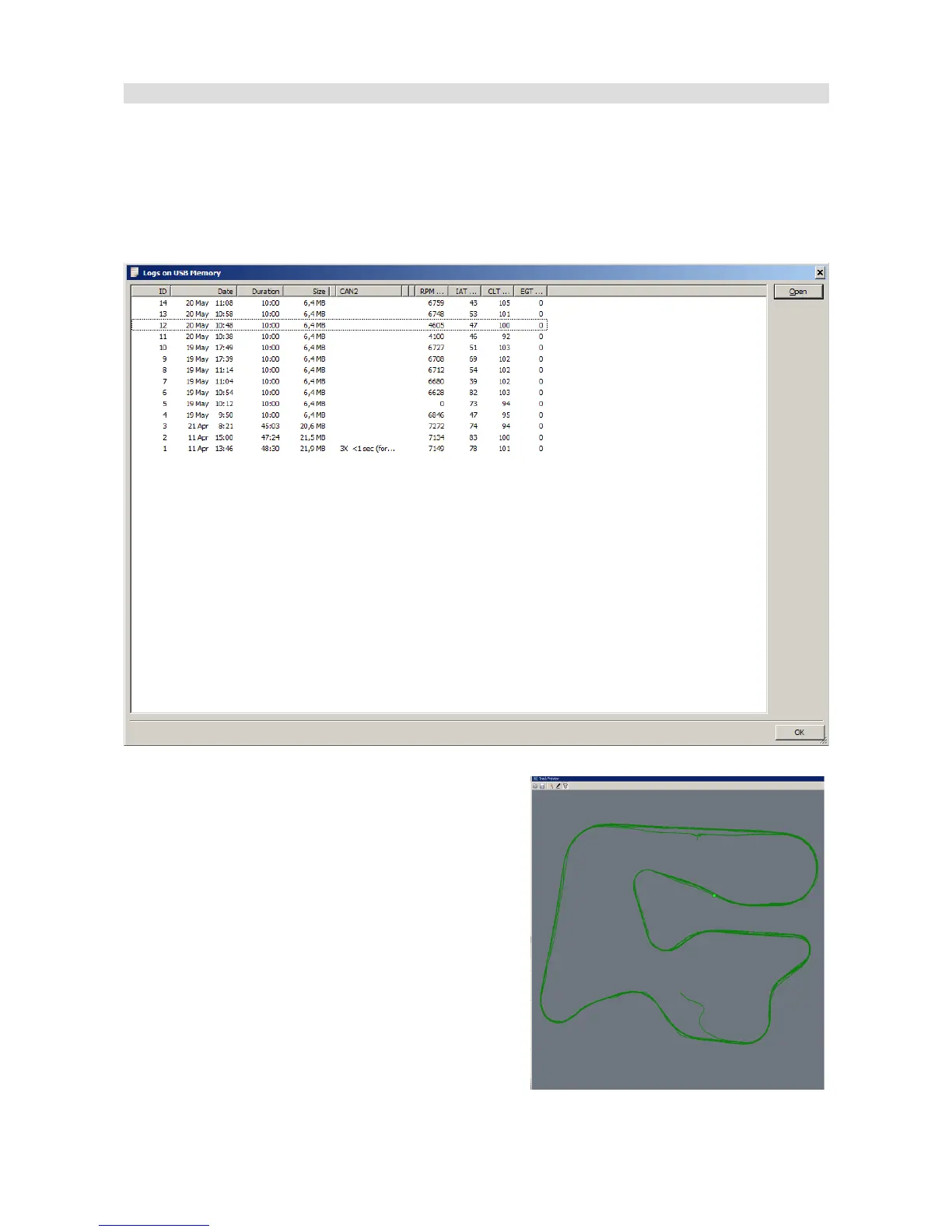

A dialog window with a log files selection will appear.
To upload the desired log, double click on it with the left
button.
Then move on to the Track tab. The Track Preview
pane should display the entire track covered by the car
as saved in the file. Example shown below:
To analyse your run, you need to generate the track
contour based on the collected data. To do this, press
the magic wand icon in the tool bar of the track preview
pane.
The following dialog should pop up:
Page 132/137
