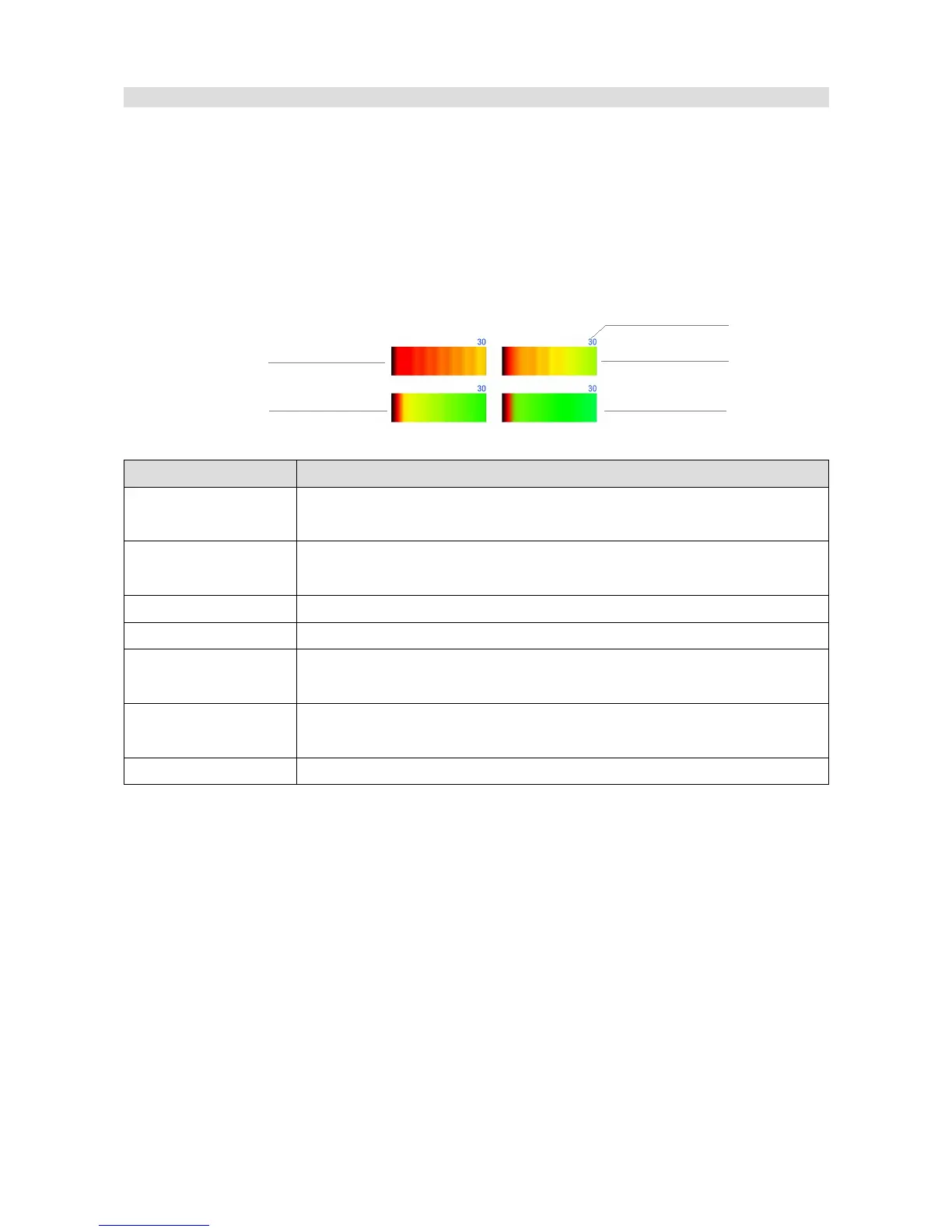

Tire temperature graph
The Tire temperature graph object displays the tire temperature gradient from thermal imaging
cameras. The tire temperature can be presented as gradients or tires. Configuration of the
measurement range of the cameras can be found in: ADU/Configuration/Tire temperature
cameras
Parameter Description
Position X,Y Object position on the page The reference point is the upper-left corner
of a rectangle around the object.
Style Tires – temperature displayed as tires
Bar – temperature displayed as gradients
Width Object width (available only for the Bar style)
Height Object height (available only for the Bar style)
Spacing X The distance on the horizontal axis between gradients representing tires
(available only for the Bar style)
Spacing Y The distance on the vertical axis between gradients representing tires
(available only for the Bar style)
Scale Object size (available only for the Tires style)
Page 69/137
Front left tire
Object description
Tire temperature
graph
Rear right tire
Rear left tire
Front right tire
Max temperature
