Ecumaster PMU
If connecting the ADU to a system that includes a PMU, it is recommended to connect CAN1 of the
PMU with the CAN1 bus of the ADu. This allows for easy communication with a PC and between
the devices.

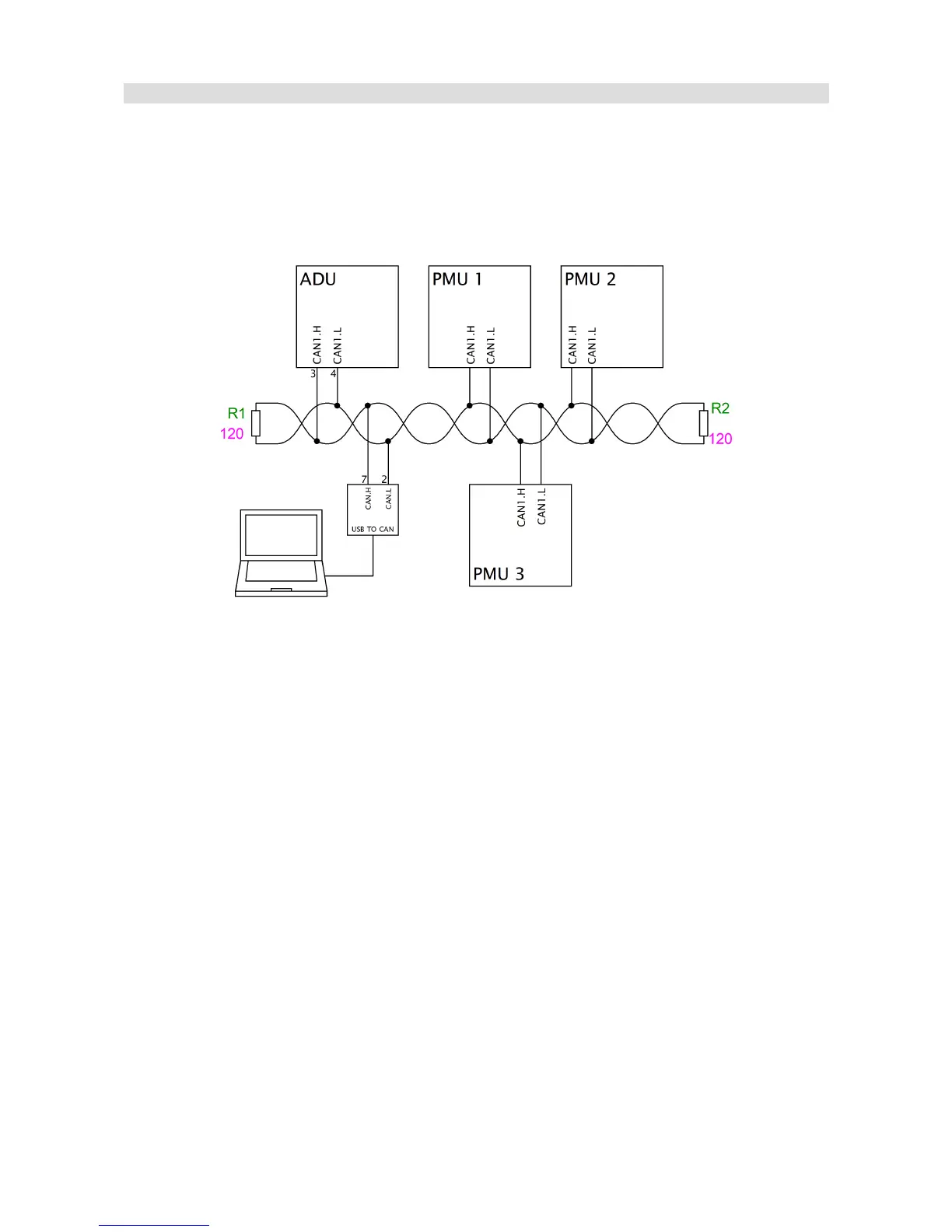

A sample connection diagram is presented below:
Page 22/137
