Analogue inputs
Analogue inputs are designed to measure signals from 0-5V (voltages above 5V are read as 5V) at
a frequency of 500Hz.
The primary use for these inputs is to display and log signals from analogue sensors such as
pressure sensors (oil, fuel, water, etc.) or thermistors (e.g. oil temperature sensor, fuel level
sensor.). These inputs can also used to connect switches.
The voltage of all analogue inputs may be transmitted to other devices (e.g. EMU, EMU BLACK)
using the CAN bus.

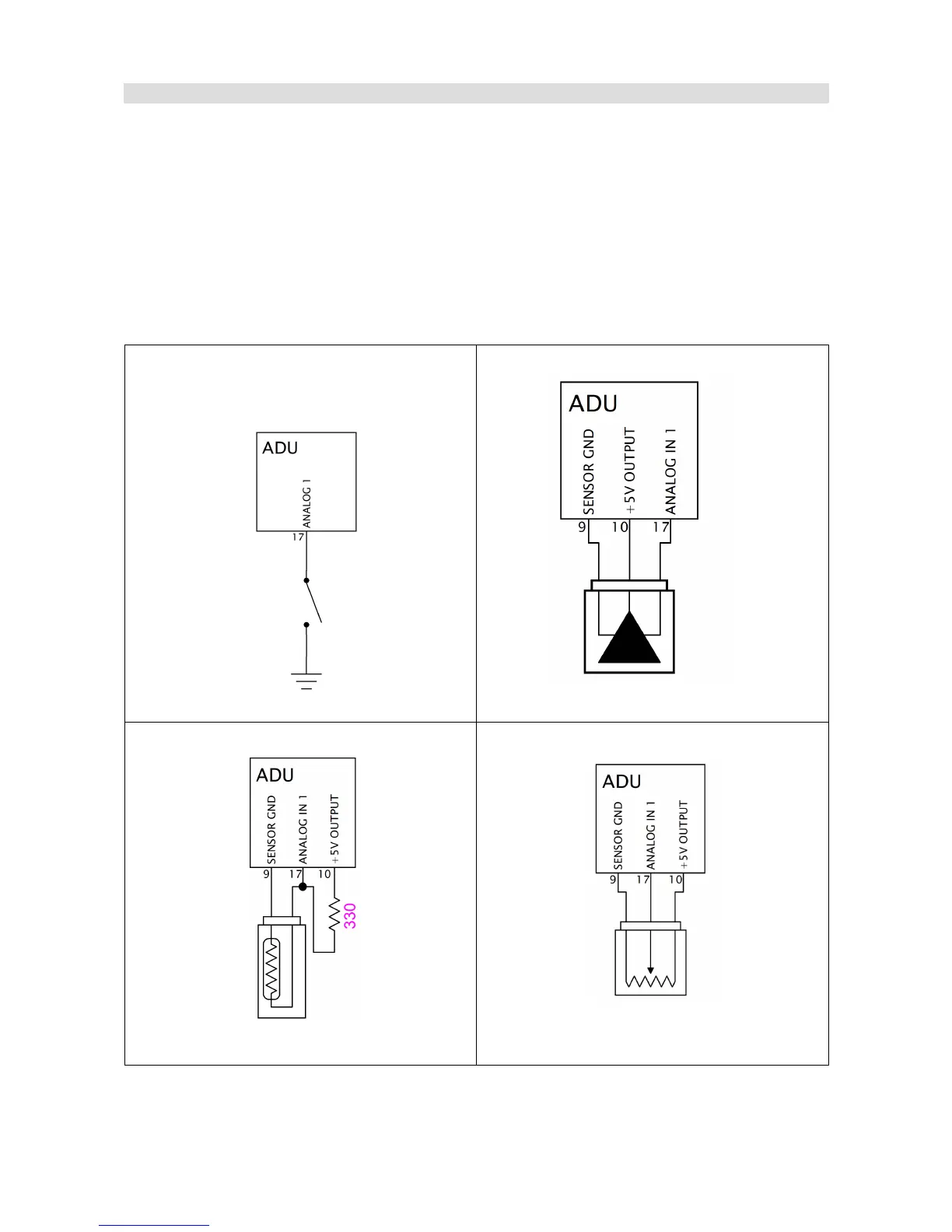

Switch connection to analogue input
example
Oil pressure sensor connection example
Oil temperature sensor connection example Potentiometer
Page 24/137
