Classic gauge

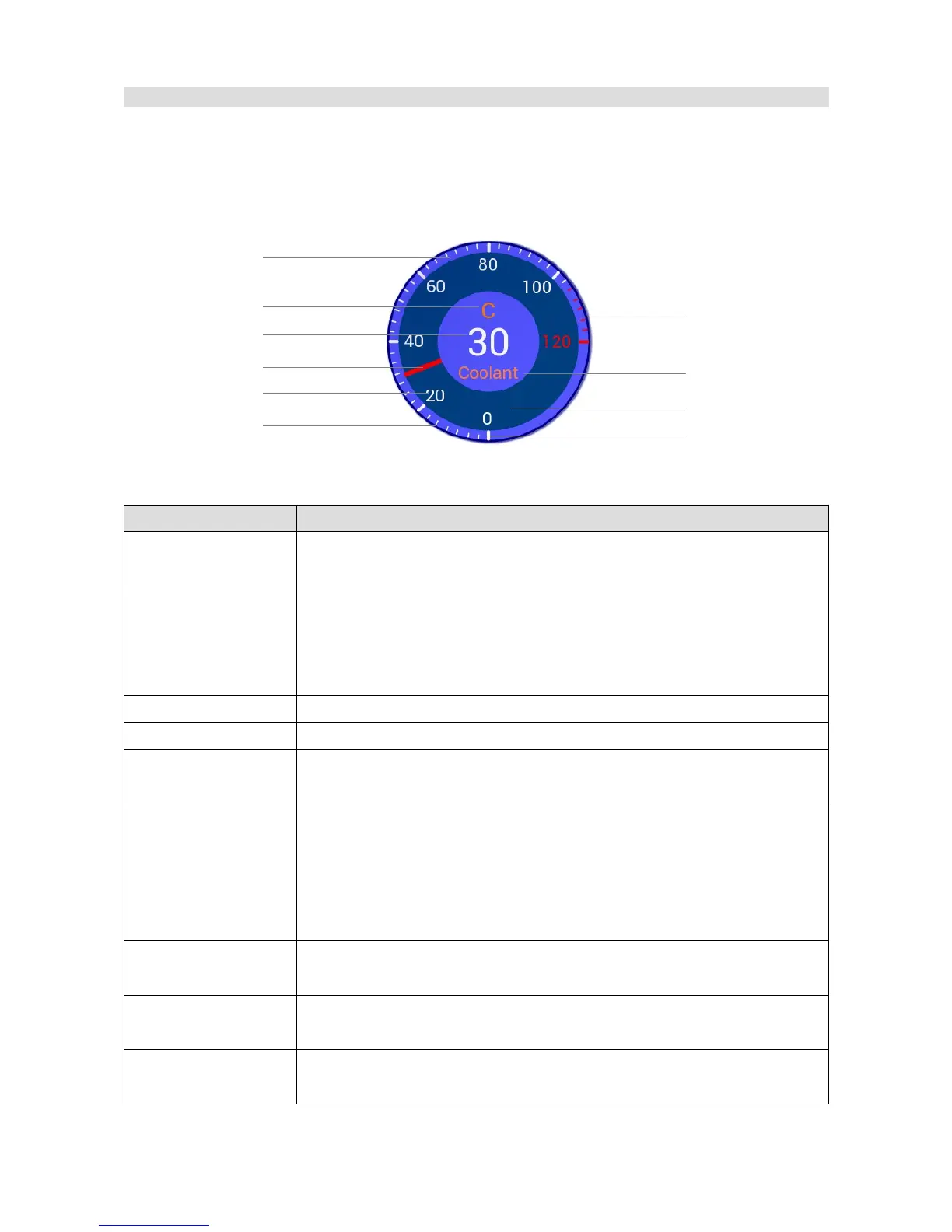

A Classic gauge allows you to display a numerical value similar to classic car gauges.
A numerical value is displayed in the center, along with a hand on the dial.
Parameter Description
Position X,Y Object position on the page The reference point is the upper-left corner
of a rectangular boundary around the object.
Channel Name of a channel or a variable that will be displayed in the Value field
and that will be represented on the gauge. Here you can also enter a
numerical value without a decimal separator to test the operation of the
gauge.
Decimal places The number of decimal places displayed for Value and Legend
Min, Max The minimum and maximum value displayed by the indicator
Display value This parameter allows you to hide the Value displayed in the gauge
center
Update frequency The update frequency on the Value parameter screen. The screen is
updated 50 times per second (50Hz). Variables that change quickly are
very difficult to read at this frequency. This parameter allows you to
decrease the frequency (e.g. to 5Hz) to make the Value parameter easier
to read.
Display unit This option allows you to display a unit (Unit) A unit is displayed above
the Value parameter.
Unit Selection of a unit to display (e.g. kPa, Bar, Psi). You can define your own
unit in the Custom unit field. To this end, select User in the Unit field.
Custom unit This field is used for entering a user-defined measurement unit. To use it,
select User in the Unit field.
