Objects
Gauge

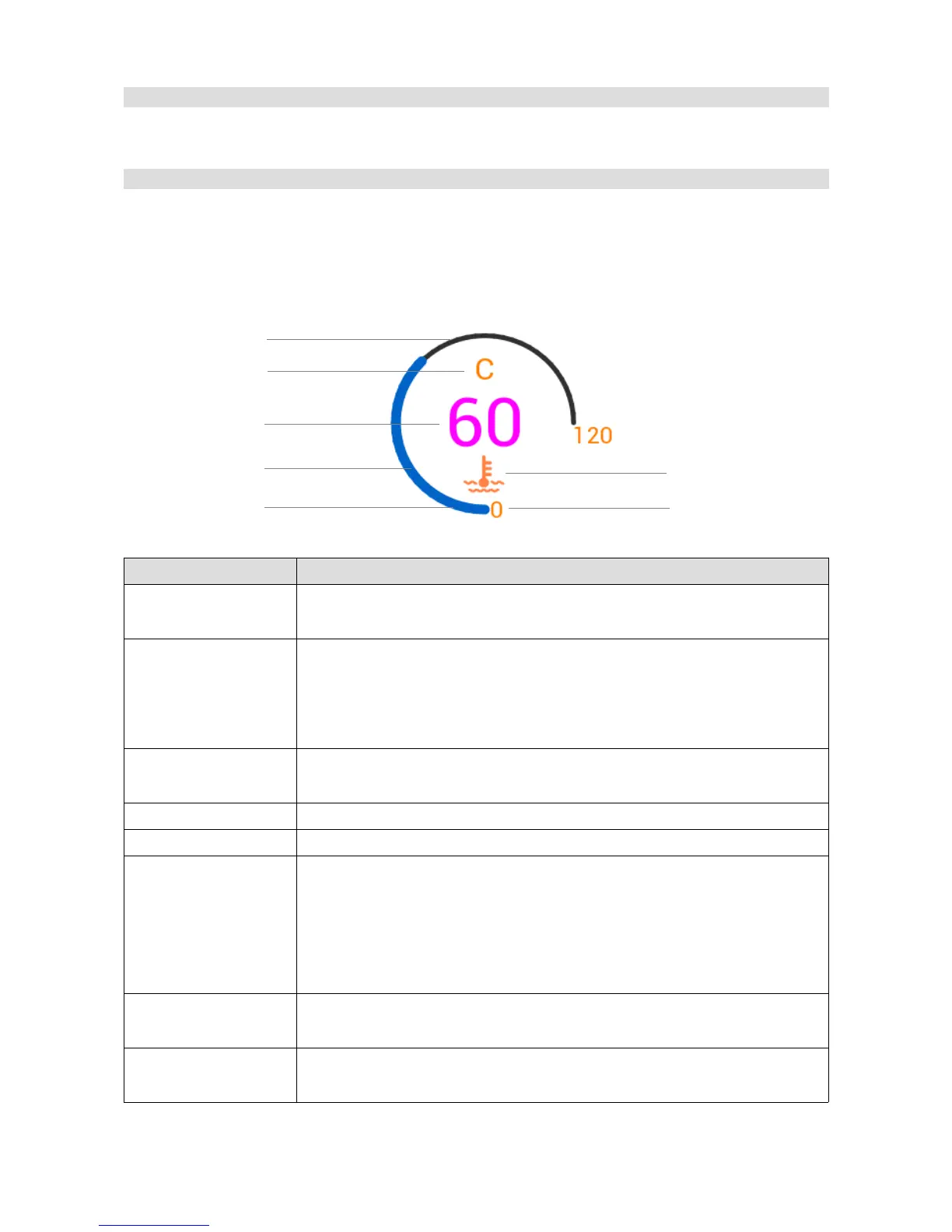

Gauge objects display data by means of a circular segment. You may further modify a gauge with
a numerical value, a description, an icon and a unit in which the value is expressed.
Parameter Description
Position X,Y Object position on the page. The reference point is the upper-left corner
of a projected rectangular boundary around the gauge.
Channel Name of a channel or a variable that will be displayed in the Value field
and that will be represented on the gauge. Here you can also enter a
numerical value without a decimal separator to test the operation of the
gauge.
Decimal places The number of decimal places displayed for the Value and Legend
parameters
Min, Max The minimum and maximum value displayed by the indicator
Display value This option allows you to show or hide the displayed Value parameter
Update frequency The update frequency on the Value parameter screen. The screen is
updated 50 times per second (50Hz). Quickly changing variables are
very difficult to read at this frequency. This parameter allows to decrease
the frequency (e.g. to 5Hz), which makes the Value parameter easier to
read.
Display unit This option allows to display a unit (Unit) A unit is displayed above the
Value parameter.
Unit Selection of a unit for displaying a value (e.g. kPa, Bar, Psi). You can
define your own unit in the Custom unit field. To do this, select User in
