used by the crankshaft/ camshaft position sensor. For a 60-2 toothed wheel
the number will be 58, for a 12+1 wheel - 13, etc.
Multiplier The value by which the input frequency (Frequency) or the engine speed
(RPM) will be multiplied. This allows you to calibrate values such as
turbocharger speed or vehicle speed.
Divider The value by which the input frequency (Frequency) or the engine speed
(RPM) will be divided. This allows for the calibration of values such as
turbocharger speed or vehicle speed.
Timeout Time to reset freqency if there is no incoming signal pulse

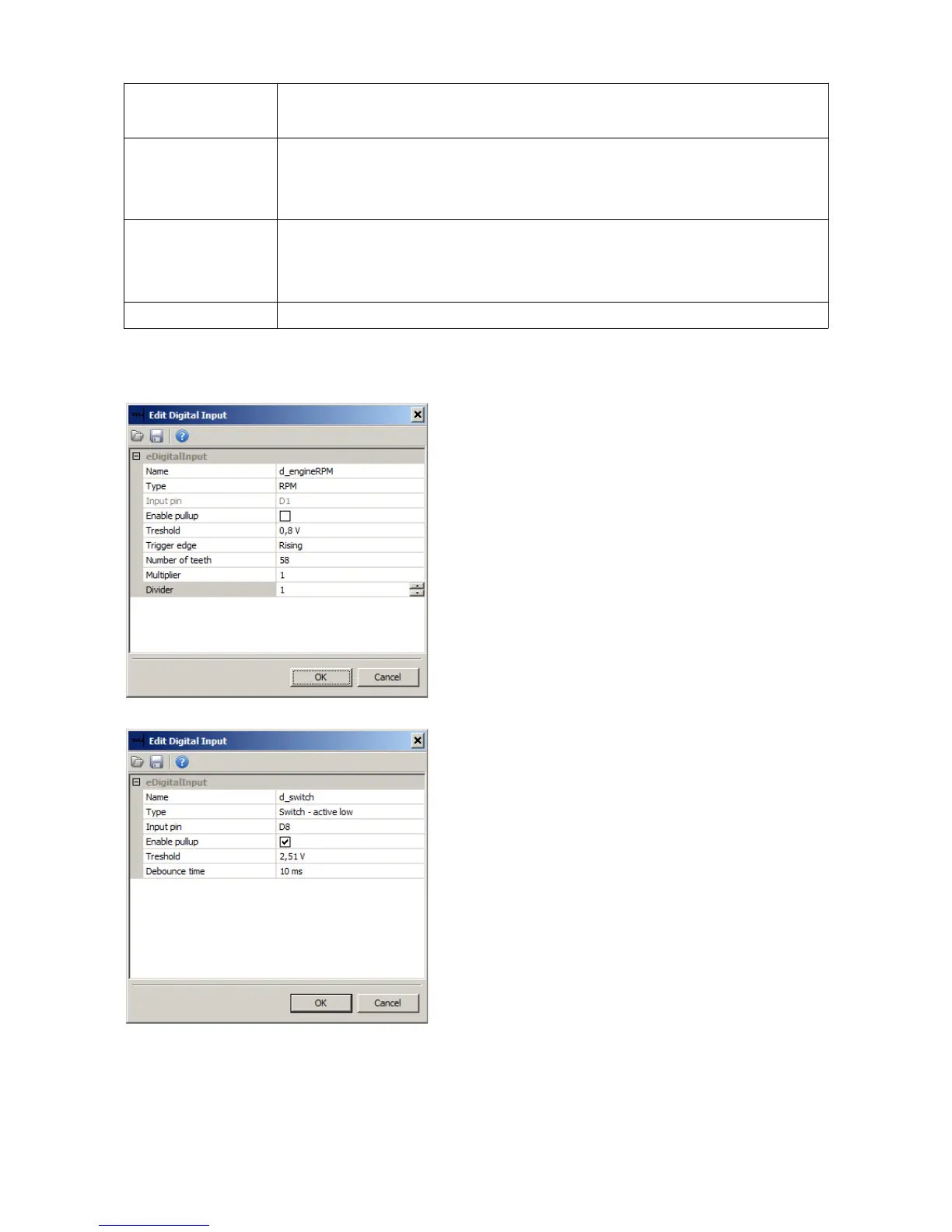

Example configurations:
Engine speed (RPM) read-out configuration from an
inductive crankshaft position sensor and a 60-2 trigger
wheel. When using the engine speed read-out, the
sensor must be connected to Digital Input 1
Configuration of the status read-out of the button
connected to Digital Input 8. The button must
connect the signal to ground. The d_switch variable
assumes a value of 0 when the button is not pressed
and 1 when it is.
