Rev. A Disassembly, Assembly, and Adjustments 5-47
TM-U950/U950P Technical Manual

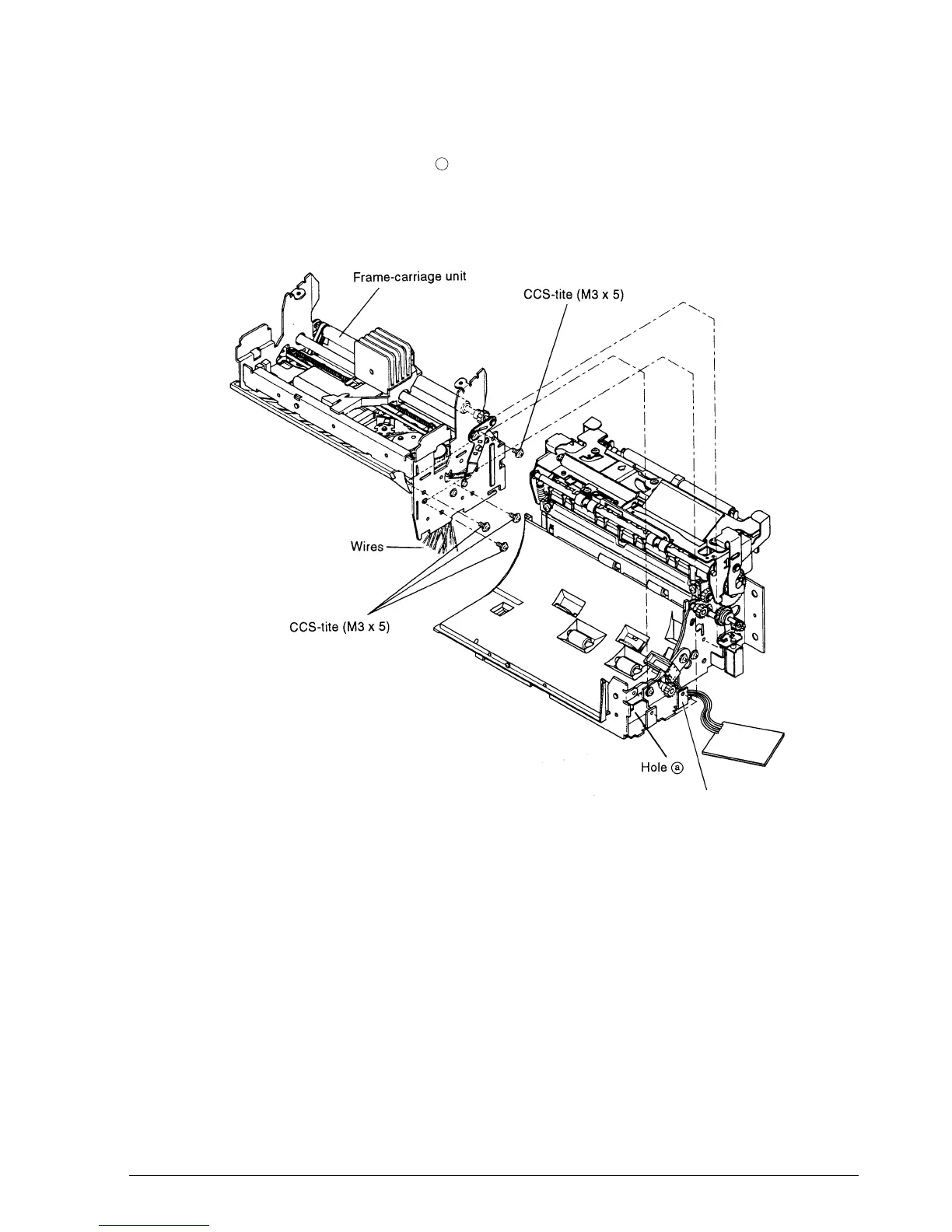

Main Assembly 1-7: Attachment of Frame-Carriage Unit
1. Pass the lead wires through hole .
2. Mount the frame-carriage unit on the frame-main assembly and tighten the screws
provisionally. (Final tightening is done in Adjustment C on the next page.)
a
Frame-main assembly
