5-48 Disassembly, Assembly, and Adjustments Rev. A

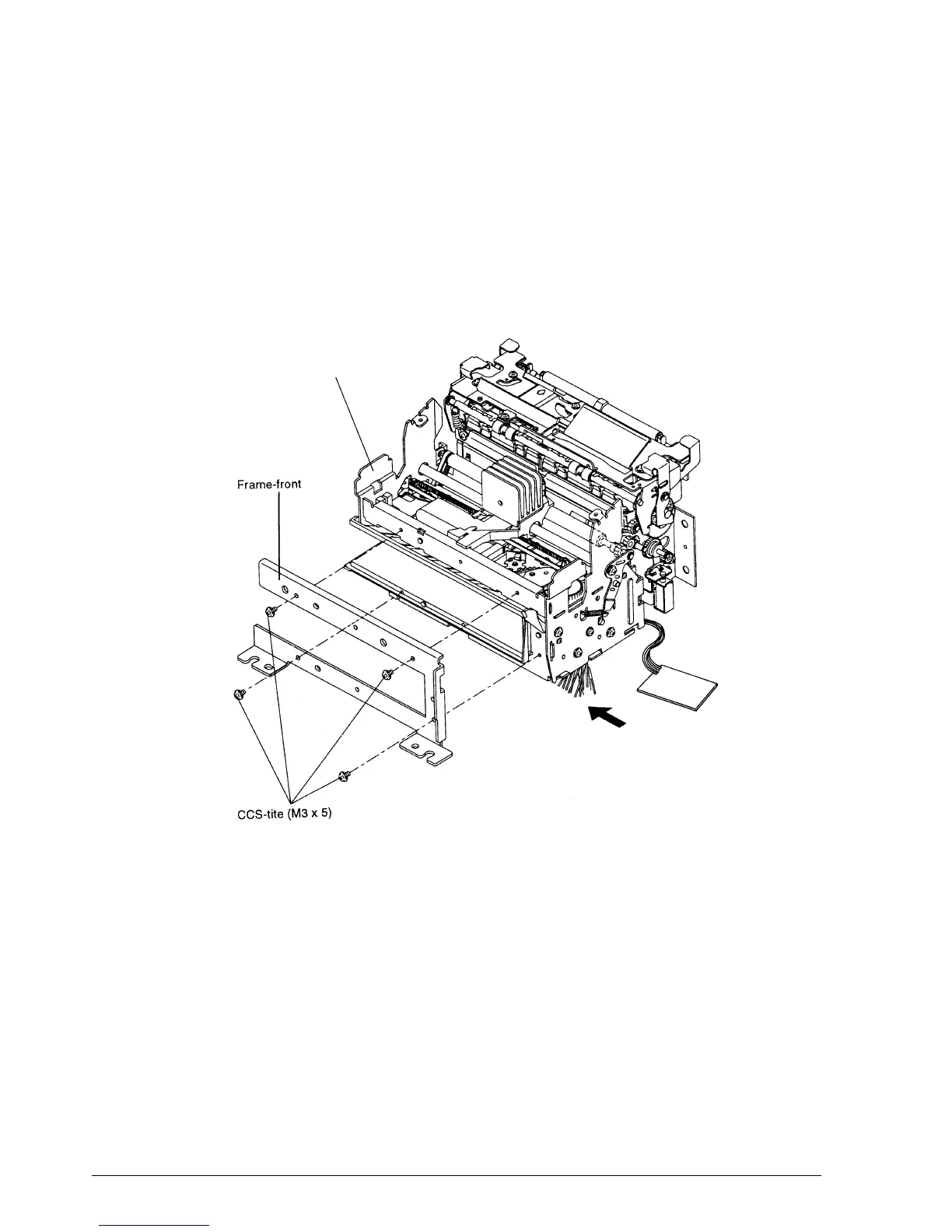

Main Assembly 1-8: Attachment of Frame-Front
1. Mount the frame-front on the frame-main assembly by sliding the frame-front from the
direction of the arrow and tighten the screws.
[Adjustments] See pages 5-55 through 5-57 for details of these adjustments.
Slip paper guide adjustment (Adjustment C)
Carriage transmission belt tension adjustment (Adjustment D)
Slip paper feed parallelism adjustment (Adjustment E)
Frame-main assembly
