Rev. A Disassembly, Assembly, and Adjustments 5-49
TM-U950/U950P Technical Manual
Main Assembly 1-9: Attachment of Frame-Paper Take-up Assembly

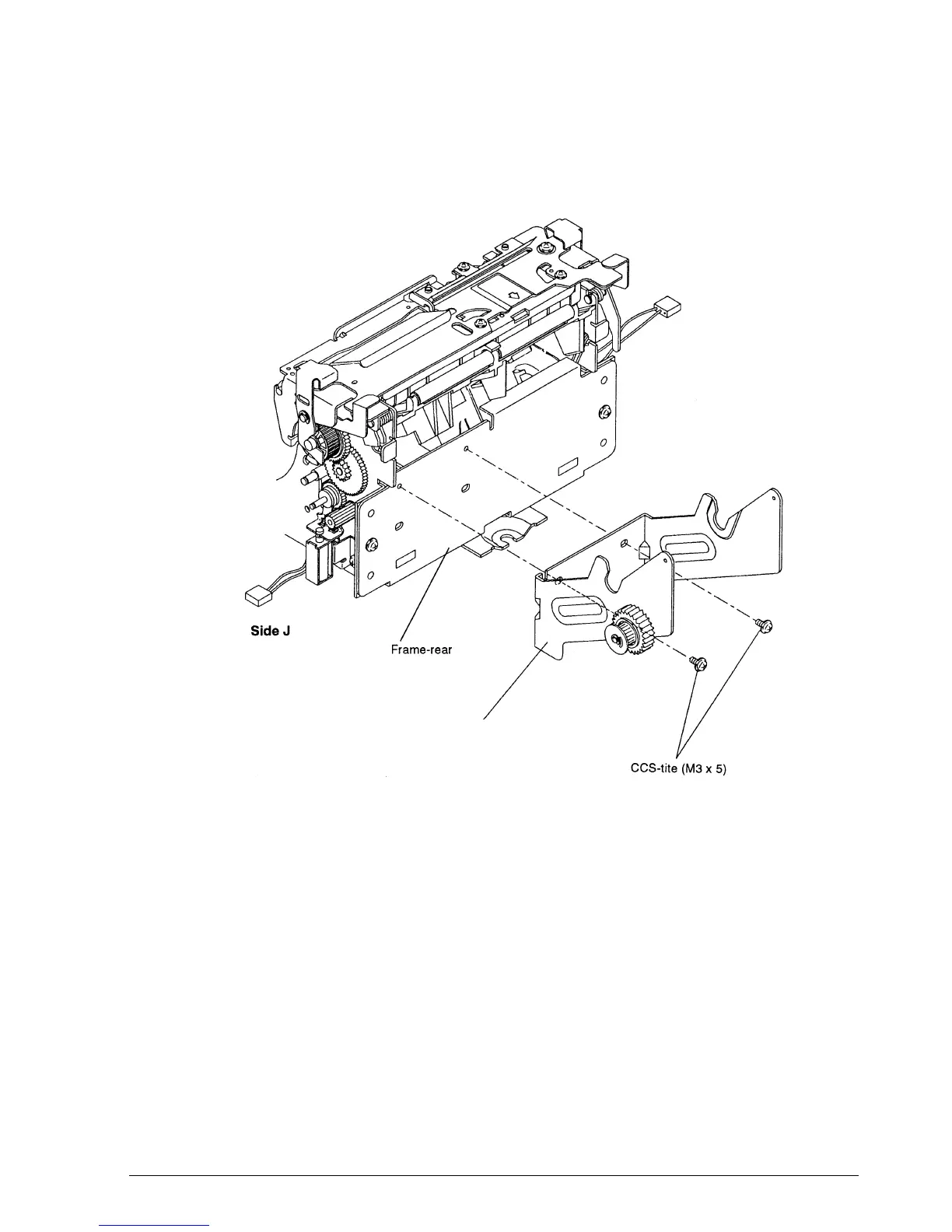

1. Mount the frame-paper take-up assembly on the frame-rear by fully aligning the frame to
side J and tighten the screws.
Frame-paper take-up assembly
