5-50 Disassembly, Assembly, and Adjustments Rev. A

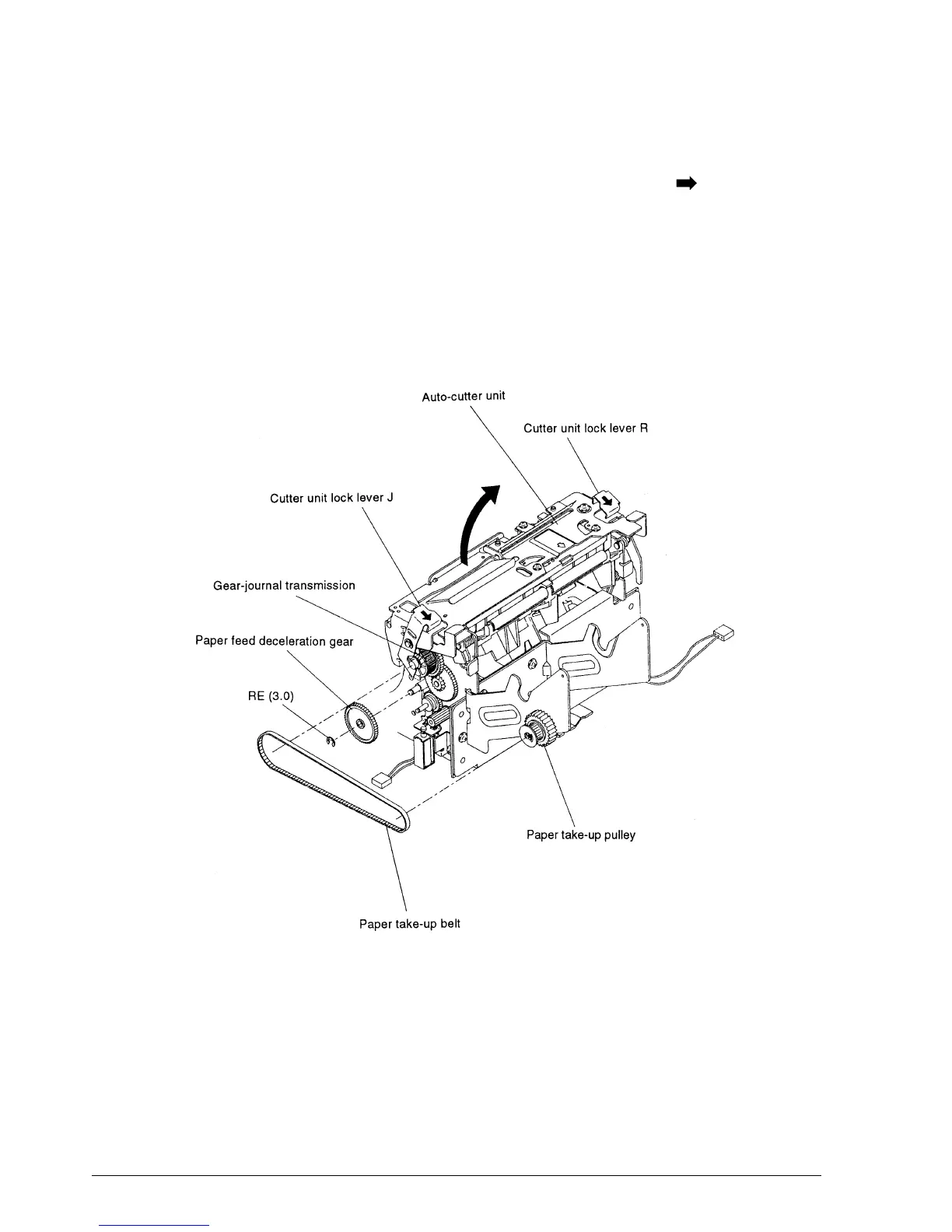

Main Assembly 1-10: Attachment of Paper Take-up Belt and Paper Feed
Deceleration Gear
1. Release the cutter unit lock levers of the auto-cutter unit and lift the unit in the direction.
2. Mount the paper feed deceleration gear and fasten it with the RE.
3. Engage the paper take-up belt on the gear-journal transmission and the paper take-up
pulley.
✔
Checkpoint
Print head and platen gap adjustment. (See Adjustment F on page 5-58.)
CONFIDENTIAL
To Next Page
