5-52 Disassembly, Assembly, and Adjustments Rev. A
Main Assembly 1-12-(1): Soldering of Lead Wires (for printers without a MICR reader)

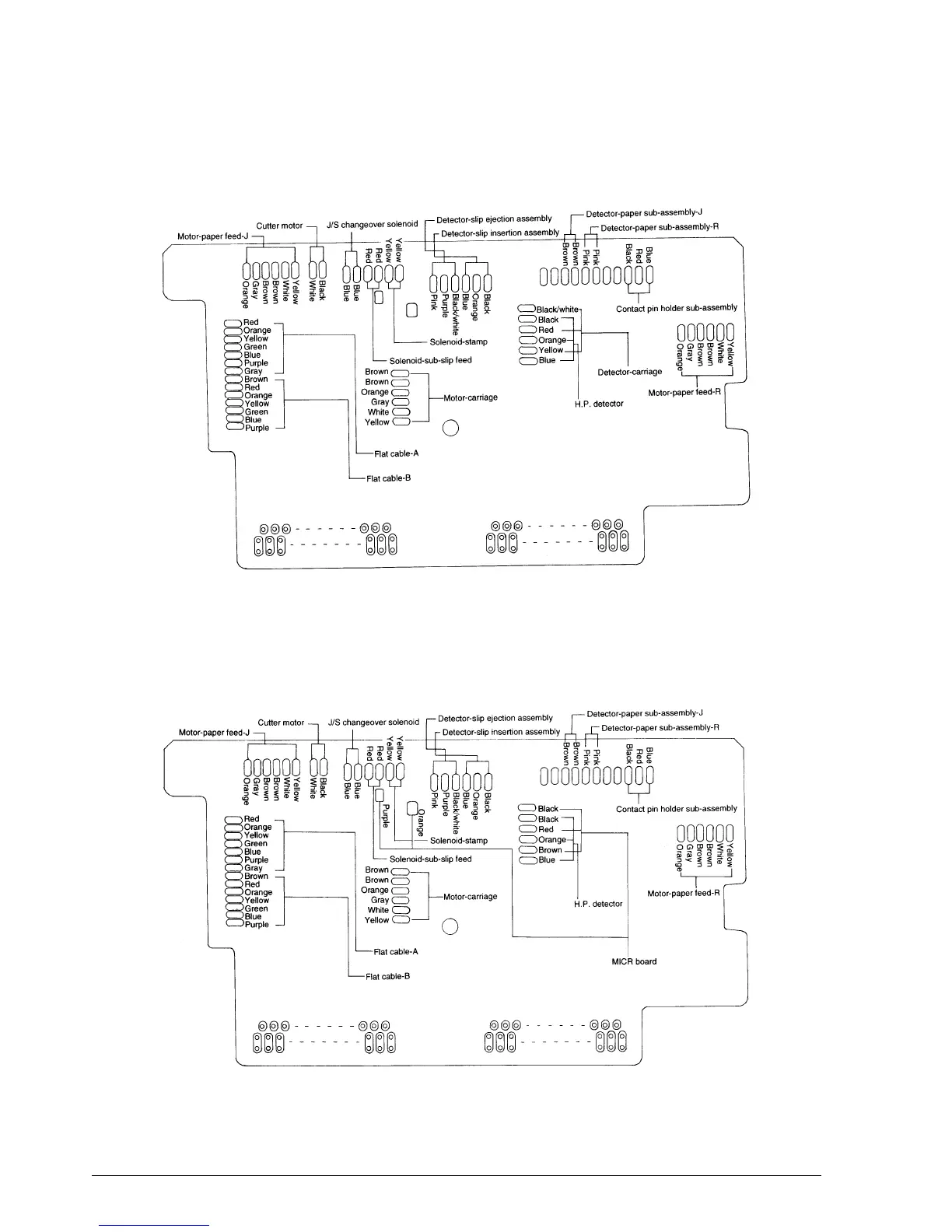

1. Solder the wires as shown in the illustration.
Main Assembly 1-12-(2): Soldering of Lead Wires (for printers with a MICR reader)
1. Solder the wires as shown in the illustration.
