Epson TM-U950 Technical Manual

5-56 Disassembly, Assembly, and Adjustments Rev. A

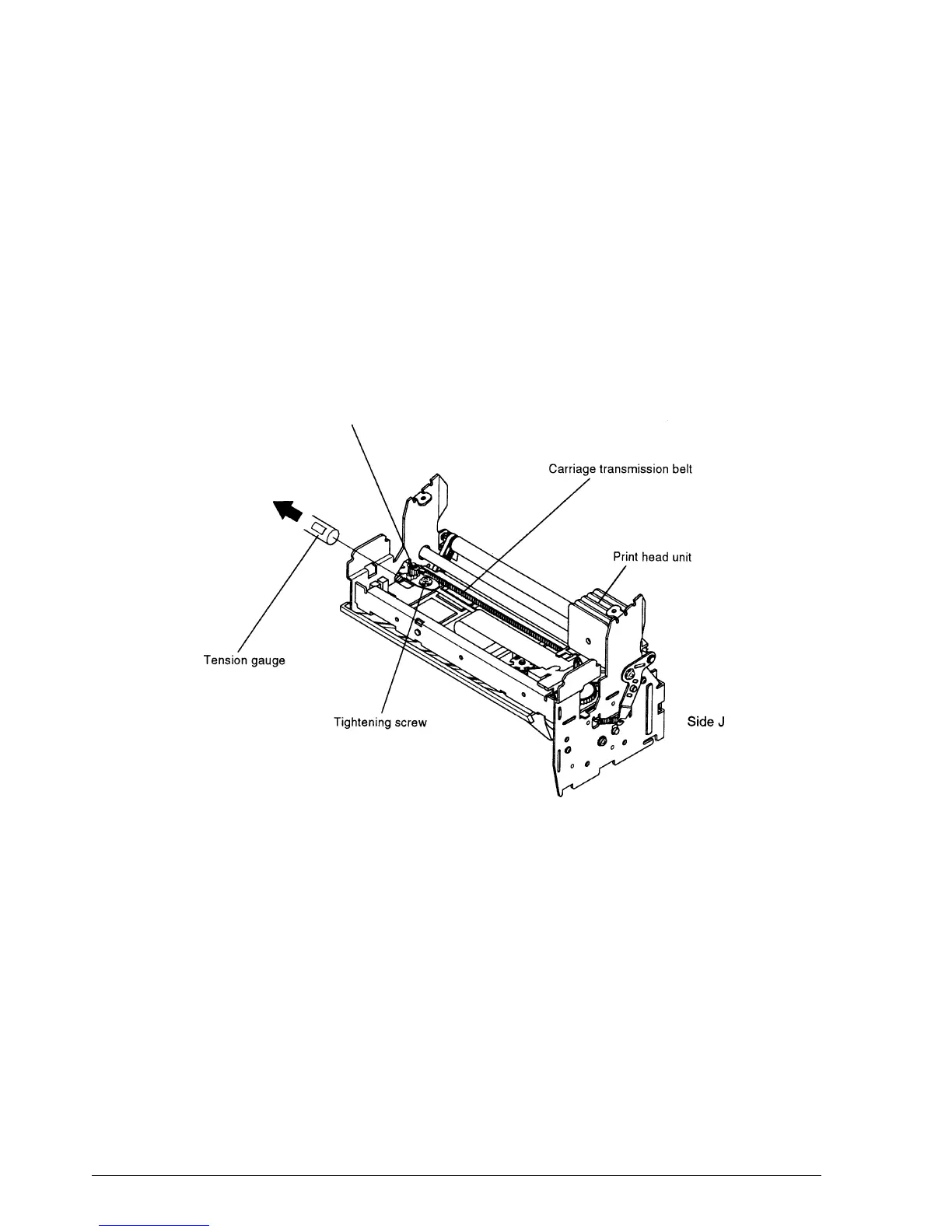

Adjustment D: Carriage Transmission Belt Tension
1. Move the print head unit to the J side.
2. Loosen the fastening screw of the pulley base-carriage transmission assembly.
3. Apply a tension gauge to the pulley base-carriage transmission and adjust the tension while
pulling the base horizontally.
4. Firmly tighten the fastening screw of the pulley base-carriage transmission.
✔
Checkpoint
Nominal tension value: 190 g ± 10 g (.42 ± .022 lbs)
Pulley base-carriage transmission assembly
CONFIDENTIAL

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
