Operating of the Machine
Paraquda Startup & Safety © Essemtec AG
4-21
0000003/11 / November 4, 2014
Check correct Function
Produce
Pick Control

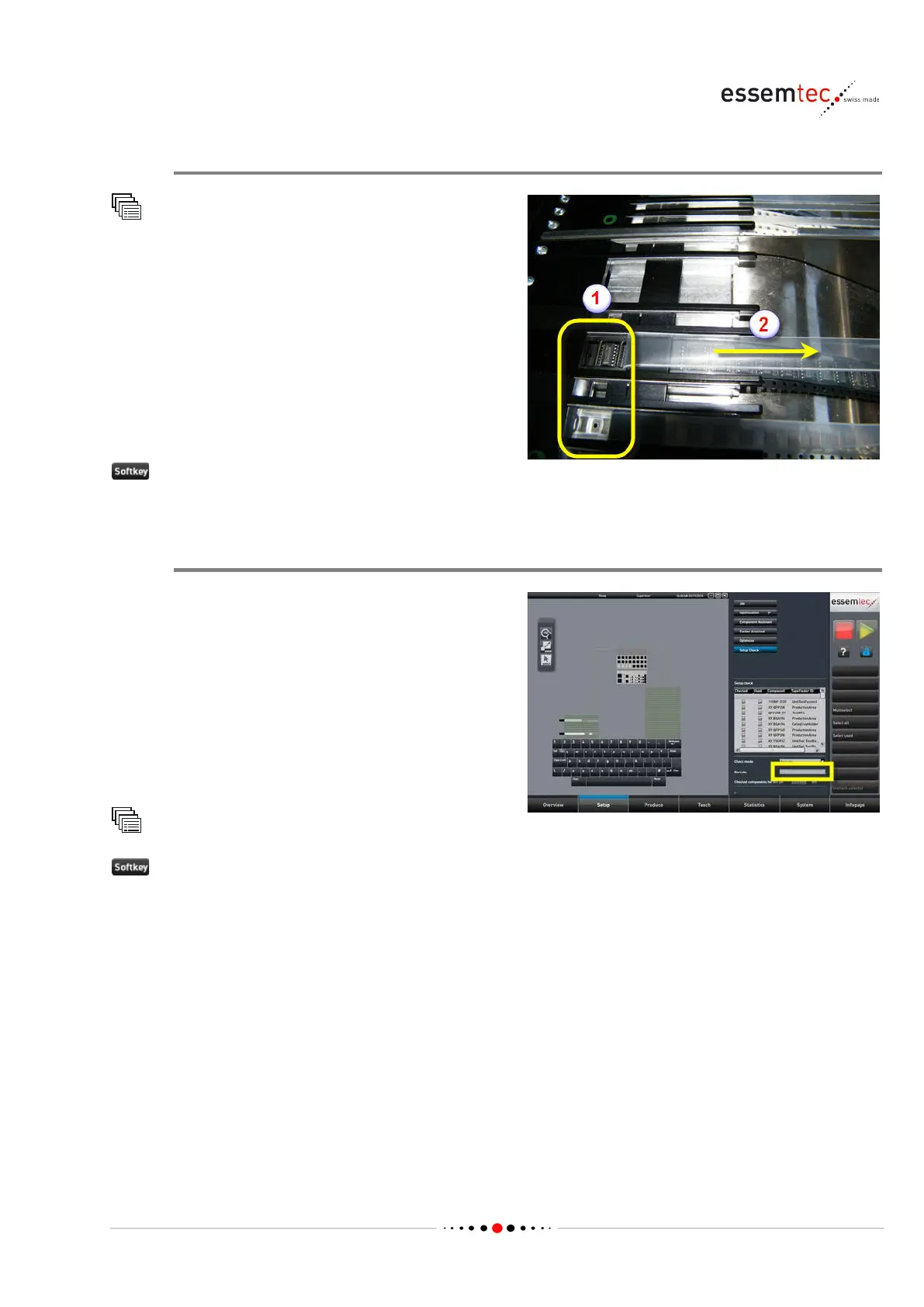

Check the correct feeding of the component, it
must be presented correctly, ready for picking
(1). Check also for correct orientation of the
component.
Check the correct feeding of cover tape (2).
Select appropriate Feeder Lane by double
clicking. The camera window opens
automatically and the camera
moves to the
correct pick up position.
Advance / Single Advance
until a component is
presented.
Setup Check (if used)
After the components are physically present on
the feeder lan
es, the setup check can be done.
With the setup check the barcode of the feeder
lane and the barcode of the component (on reel)
is read. This real assignment of feeder lane and
component is compared with the virtual or
logical assignment (stored as 'kitted
' in the
machine) to ensure the reality is equivalent to
the virtuality. This guarantees the placing of the
correct components on the PCB.
Setup
Setup Check
Parameter text field
Barcode and enter the
barcode of the feeder lane and the barcode of
the co
mponent on the tape, or use the barcode
reader to read both barcodes.
If the comparison is successful the component
will get the checked status.
