Test Setup - Test Configurator, Timer, and System
Power Blazer 135
Modify Structure Button
 Unframed (Interop) is only available with optical interface up
to 25GE:
For Seed A and Seed B, available with 10G LAN and 25G, the
pattern is generated by the PCS scrambler from a specific seed.
The pattern is not encoded.
For PRBS31 Unscrambled, available with 10G LAN and 25G, the
pattern is generated at the PCS layer. The pattern is not encoded
and not scrambled.
For PRBS and User Pattern: Pattern generated by the PCS
scrambler. The pattern is encoded.

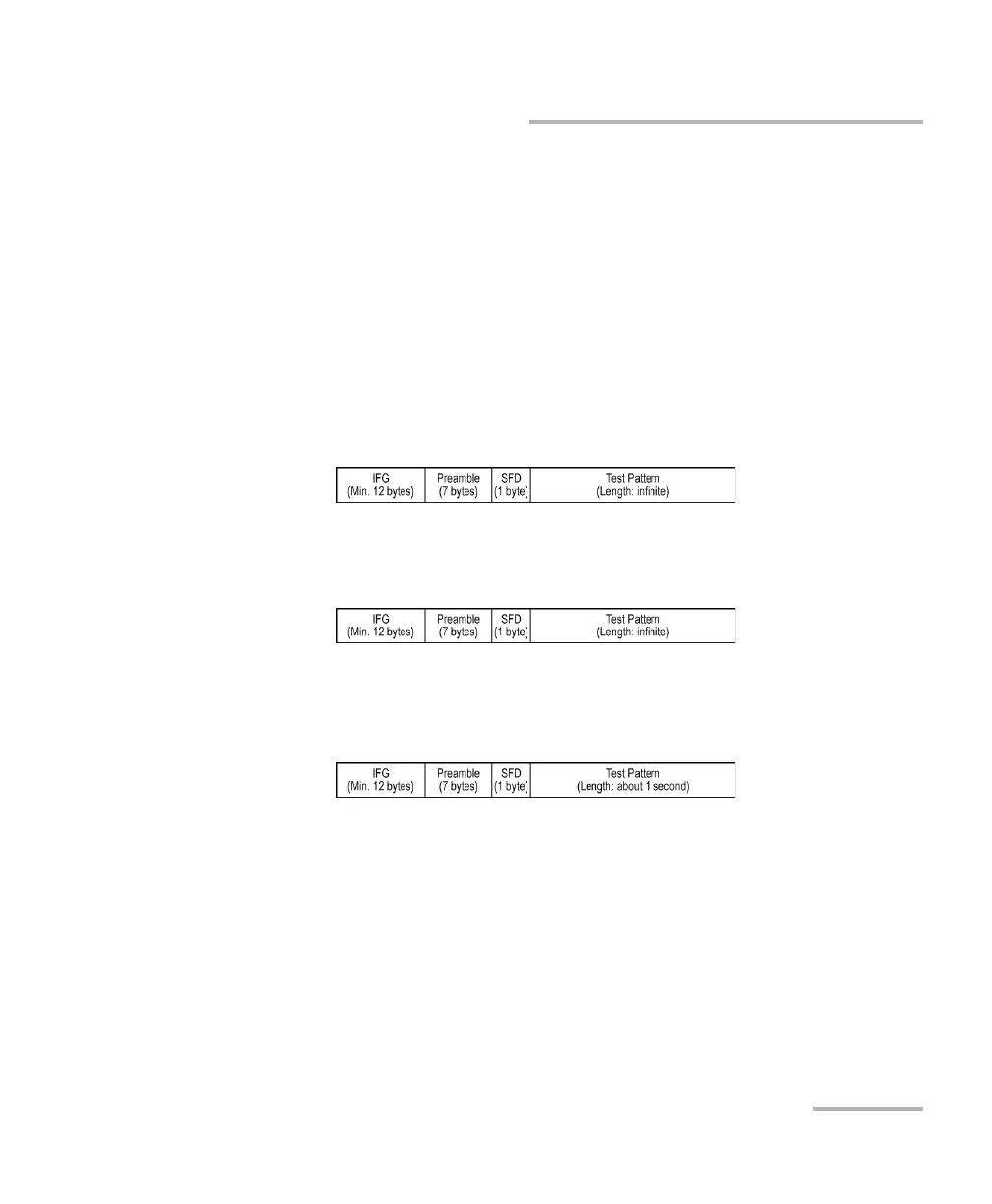

 Unframed is only available with optical interface up to 10G LAN:
Encoded pattern generated by the PCS scrambler.
 Unframed with Sync is only available with optical interface up to
10G LAN: Pattern of a length corresponding to the number of bytes
transmitted in 1 second.
