Getting Started
14 88000 Series
Inserting and Removing Transceiver System
4c. Push the transceiver system all
the way to the back of the
receptacle by pressing firmly on
the left edge of the transceiver
system until it is fully inserted.
4d. Turn the retaining screw
clockwise until it is tightened.
This will secure the transceiver
system into its “seated” position.

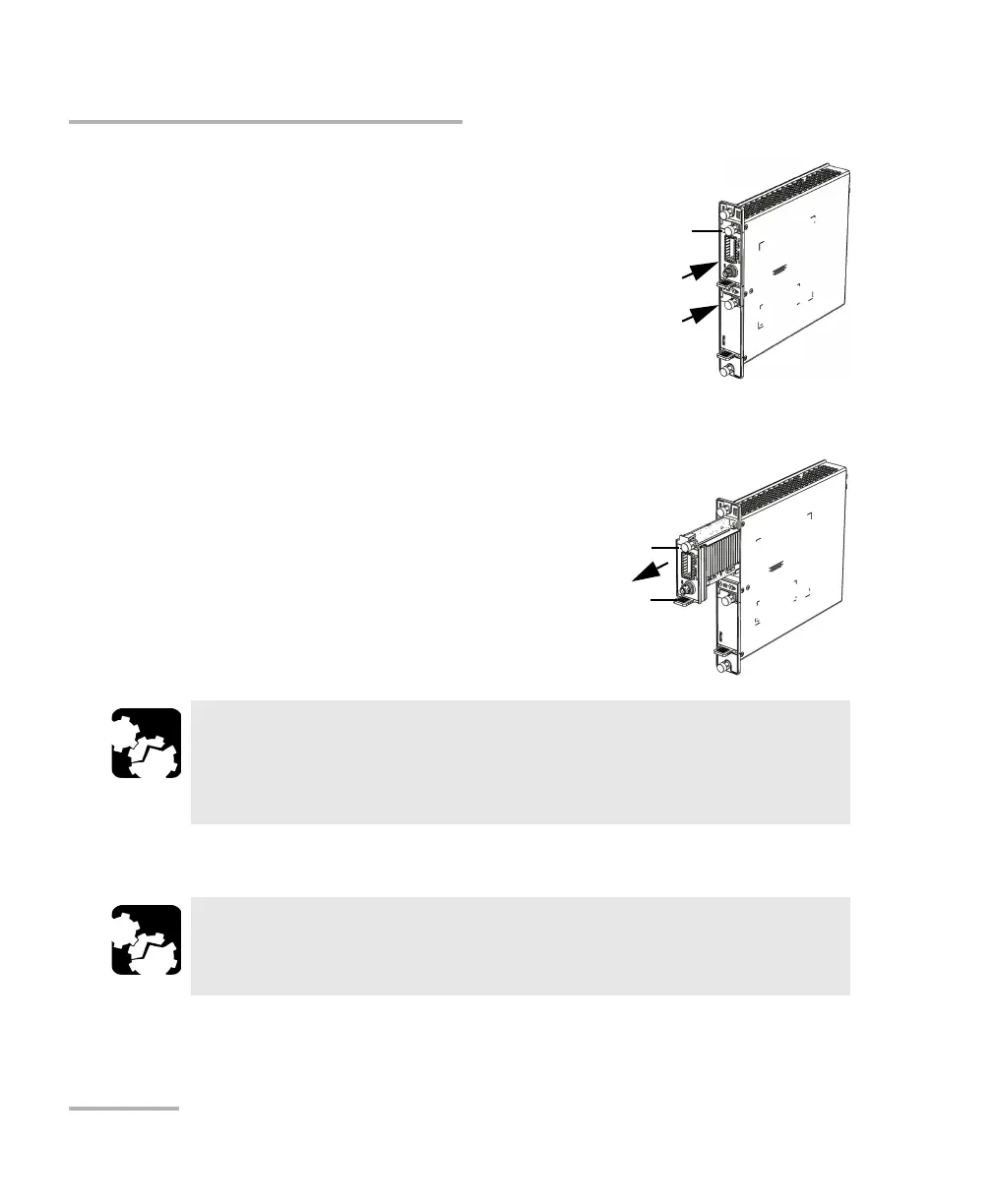

To remove a transceiver system from the FTBx-88260 module:
1. Position the FTB-x-88260 module so
that its faceplate is facing you.
2. Turn the retaining screw
counterclockwise until it is loose.
3. Hold the transceiver system by the
handle and/or the retaining screw
(NOT by the connectors) and pull it
out.
4. Cover the empty FTBx-88260’s receptacle with the supplied FILLER.
CAUTION
Pulling out a transceiver system by its connectors could seriously
damage both the transceiver system and connectors. Always pull
out a transceiver system by its retaining screw, and/or the handle.
CAUTION
Failure to reinstall the FILLER over an empty receptacle will result in
ventilation problems.
