RESTRICTED USE ONLY FARGO Electronic, Inc.
HDP 800 Series Card Printer/Encoders Service Manual (Rev. 5.0)
xii

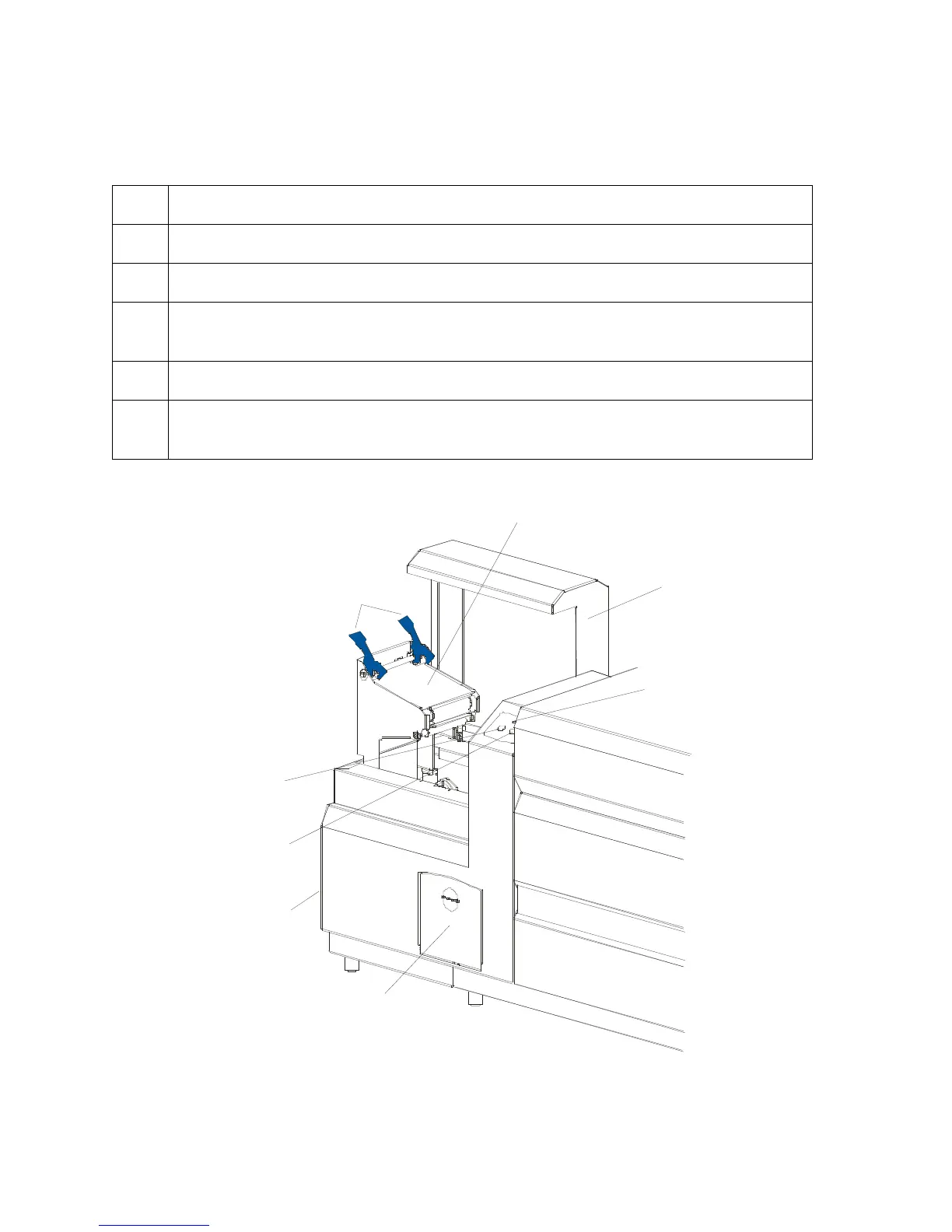

Reviewing the Lamination Module Sequence of Operations
The LAM sequence of operations begins after printing has occurred with the Card Printer.
Step
Process
1 The card is fed onto the Lamination Module Flipper Table.
2 The card is fed to the Card Position Sensor.
3 The Lamination Ribbon Motor begins cycling until the Upper Lamination Sensor
detects the mark.
4 The Card Feed Motor activates to center the card on the Platen Roller.
5 The Lamination Roller Lift Motor cycles until the Lamination Roller Lift Sensor
detects state change.
Continued on the next page
Lamination
Top Cover
Securing
Latches
Lamination
LED Light
Cancel
Button
Resume
(pause) Button
Rejection
Card Hopper
Card Output
Hopper
