RESTRICTED USE ONLY Fargo Electronics, Inc.
HDP 800 Series Card Printer/Encoders Service Manual (Rev. 5.0)
442

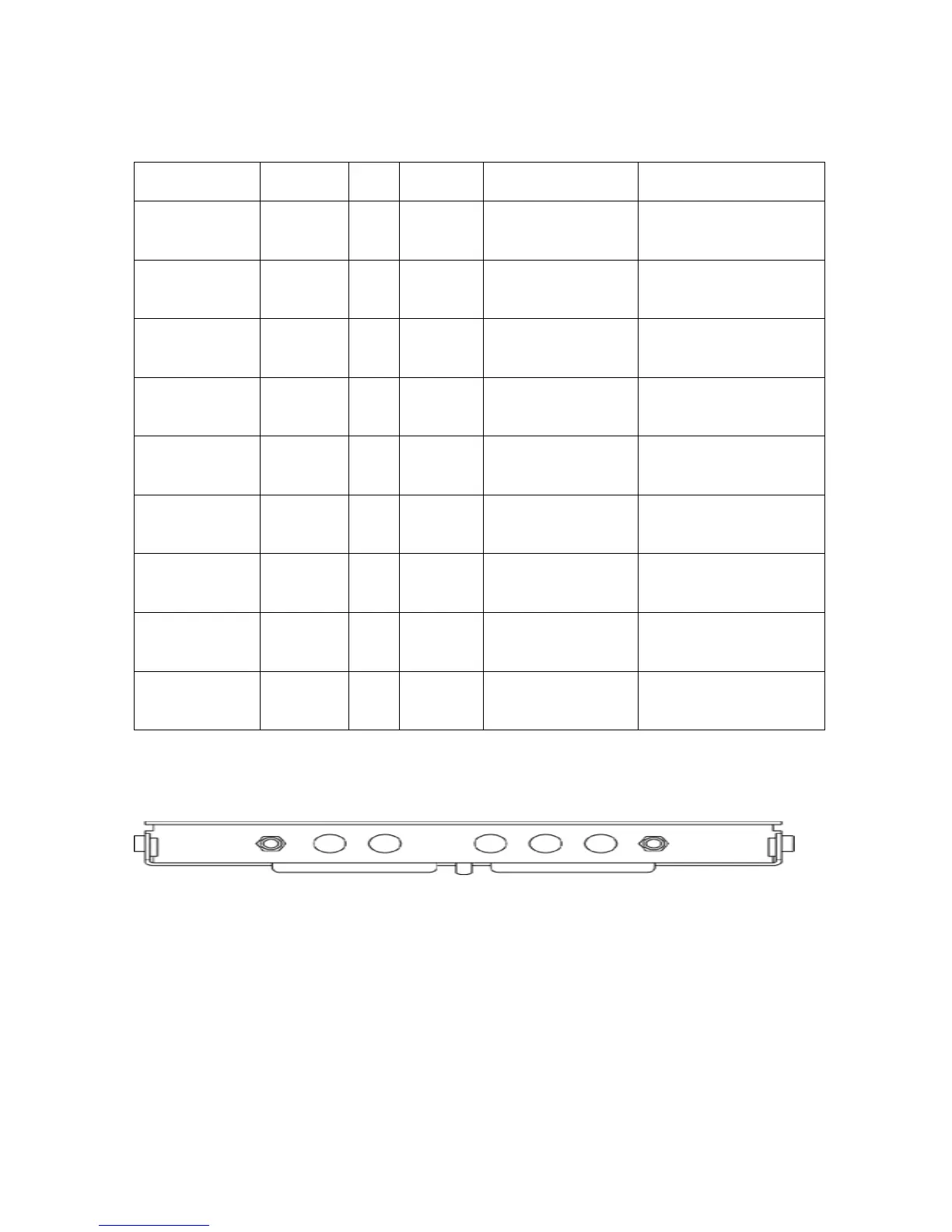

Reviewing the Sensor Location and Voltages(continued)
Sensor Location Pin Board Low Range VDC High Range VDC
Ribbon
Sensor (5)
J65 3 Print Covered .9 Uncovered 3.5 - 5.0
Ribbon
Sensor (4)
J65 5 Print Covered .9 Uncovered 3.5 - 5.0
Ribbon
Sensor (3)
J65 11 Print Covered .9 Uncovered 3.5 - 5.0
Ribbon
Sensor (2)
J65 7 Print Covered .9 Uncovered 3.5 - 5.0
Ribbon
Sensor (1)
J65 9 Print Covered .9 Uncovered 3.5 - 5.0
Latch Open
Sensor
J69 4 Lam Covered .9 Uncovered 3.0 - 3.3
Printer Open
Sensor
J64 12 Print Covered .9 Uncovered 3.0 - 3.3
Stacker Full
Sensor
J63 12 Lam Covered .9 Uncovered 3.0 - 3.3
Stacker
Position
H83 8 Lam Unblocked .9 Blocked 3.8-3.5
Reviewing the Sensor Layout on Ribbon Sensor array
(5) (4) (3) (2) (1)
