Printer Components: Access Card Slot to Parallel Interface Port (continued)
Component Description
Card Thickness
Adjustment
Knob
Adjusts the Printer to feed varying card thicknesses.
Card Cleaning
Assembly
Automatically cleans cards for higher print quality. (Note: Clean this
assembly after every 250 cards or as needed.)
Power Switch Turns the Printer power ON and OFF.
Power Port Connect to the included power cord.

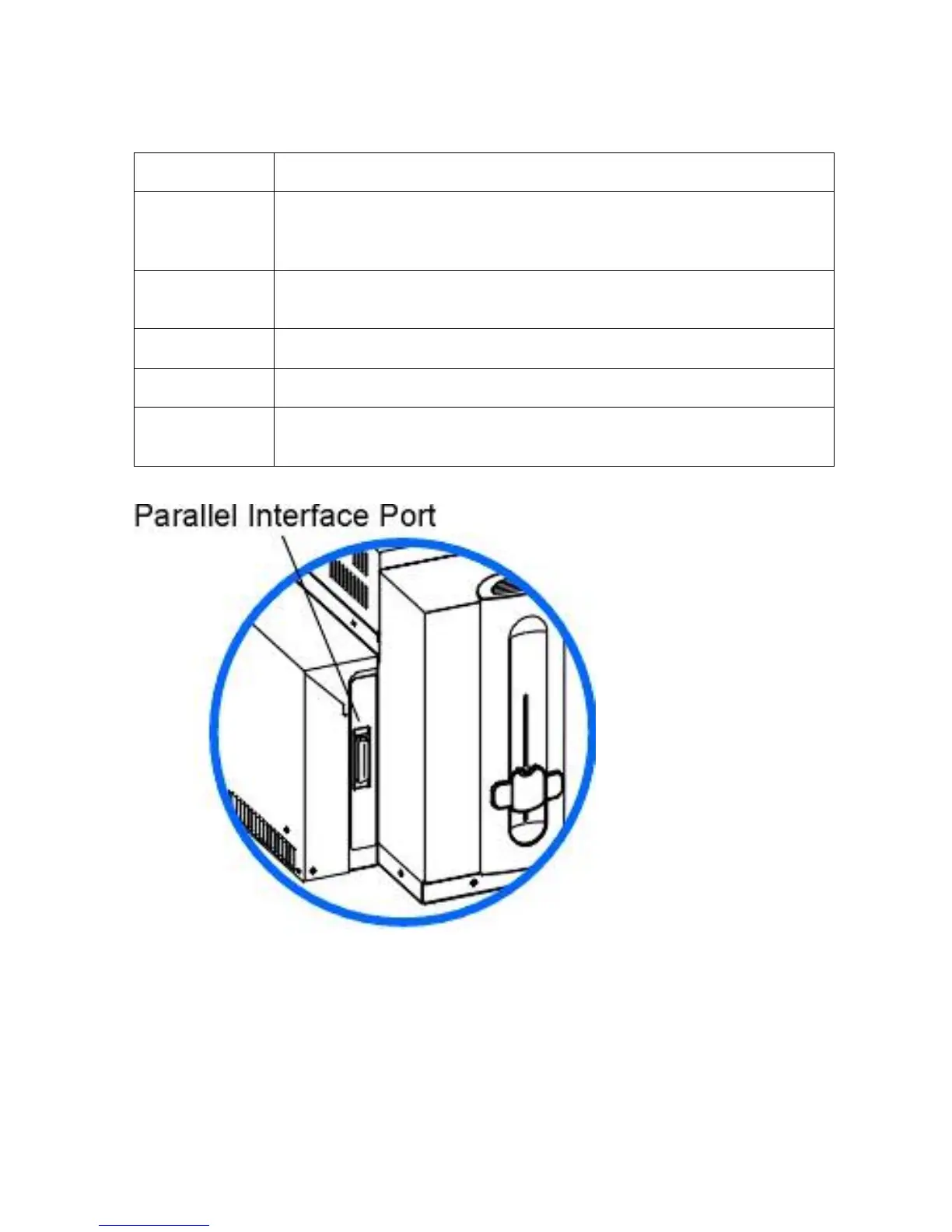

Parallel
Interface Port
Connect to a Windows PC with a parallel cable. See below.
