Step
Procedure
3
TO REPLACE BOTTOM ROLLERS.
Insert the D flat end into the grommet provided on the Sideplate.
Fit the bearing and E Clip into the slot provided on the other side of the Sideplate.
4

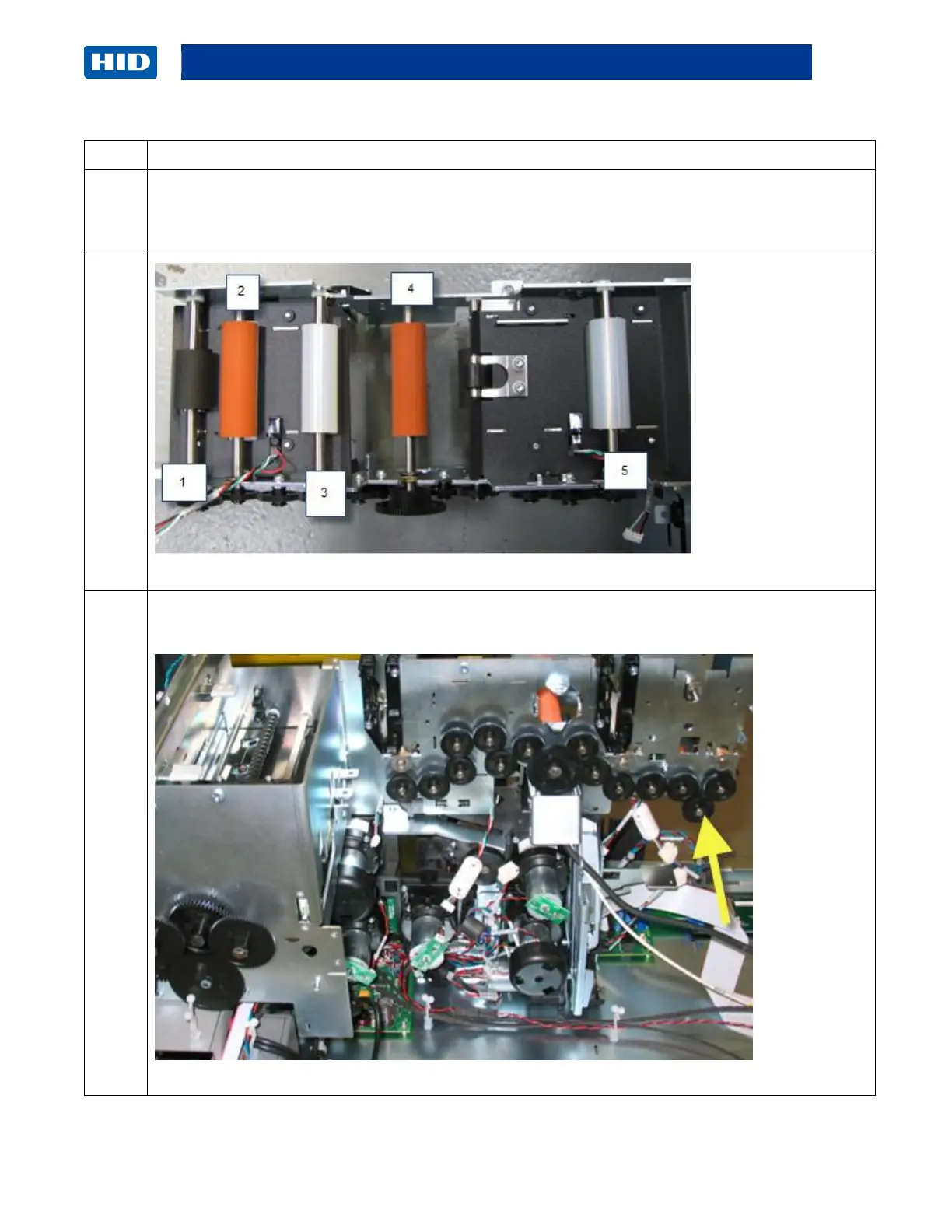

Bottom View
5
Bottom Roller #1 Transport Roller (Roller (D940099 with Bearing D940169)
NOTE: Remove the gear holding the Bearing in place for access.
Continued next page
