Ensure the flat on the bearing is aligned with the flat in the Sideplate hole.
(continued next page)
Verify roller rolls freely
6

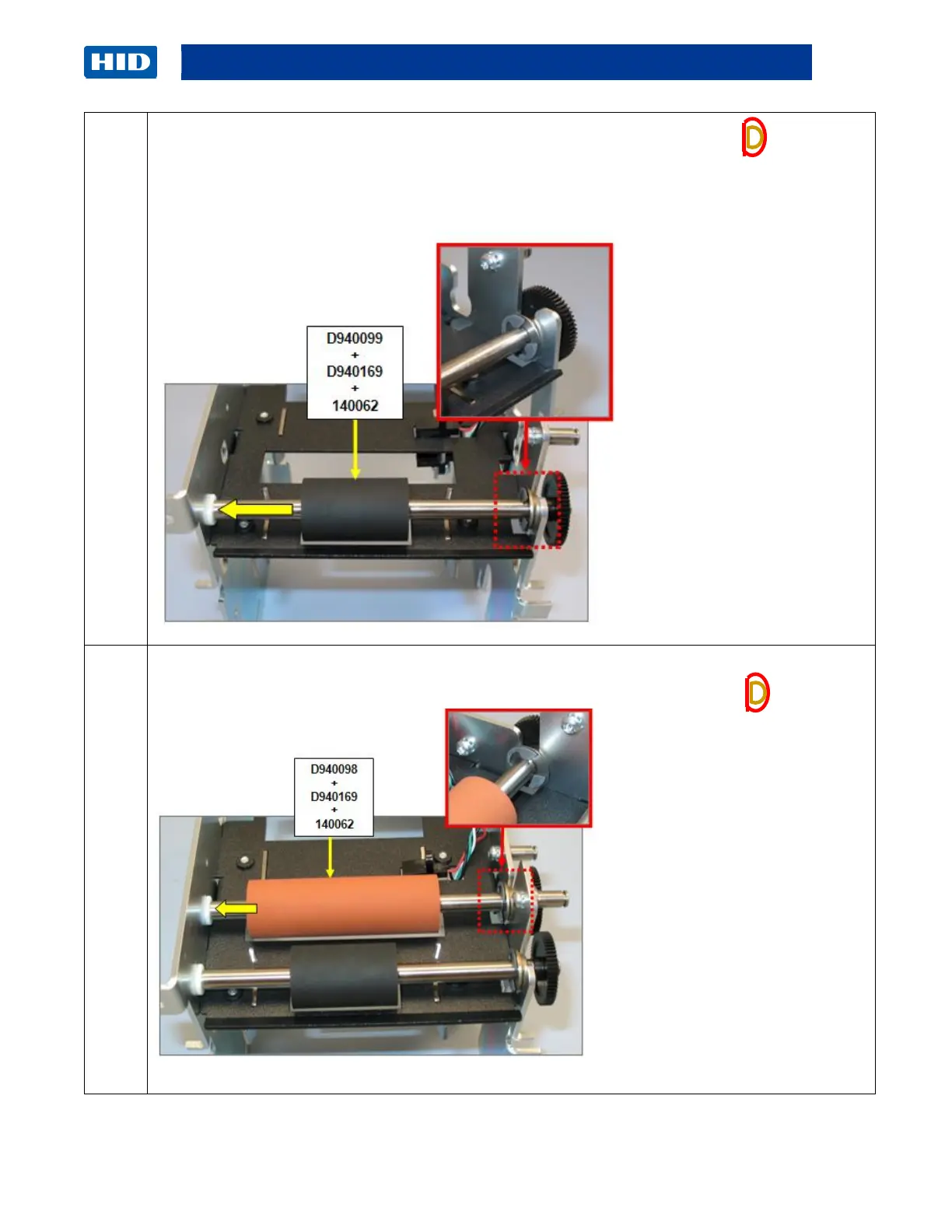

Bottom Roller #2 Flattener Roller (Roller D940098 with bearing D940169)
Ensure the flat on the bearing is aligned with the flat in the Sideplate hole.
Verify roller rolls freely.
