Step
Procedure
7

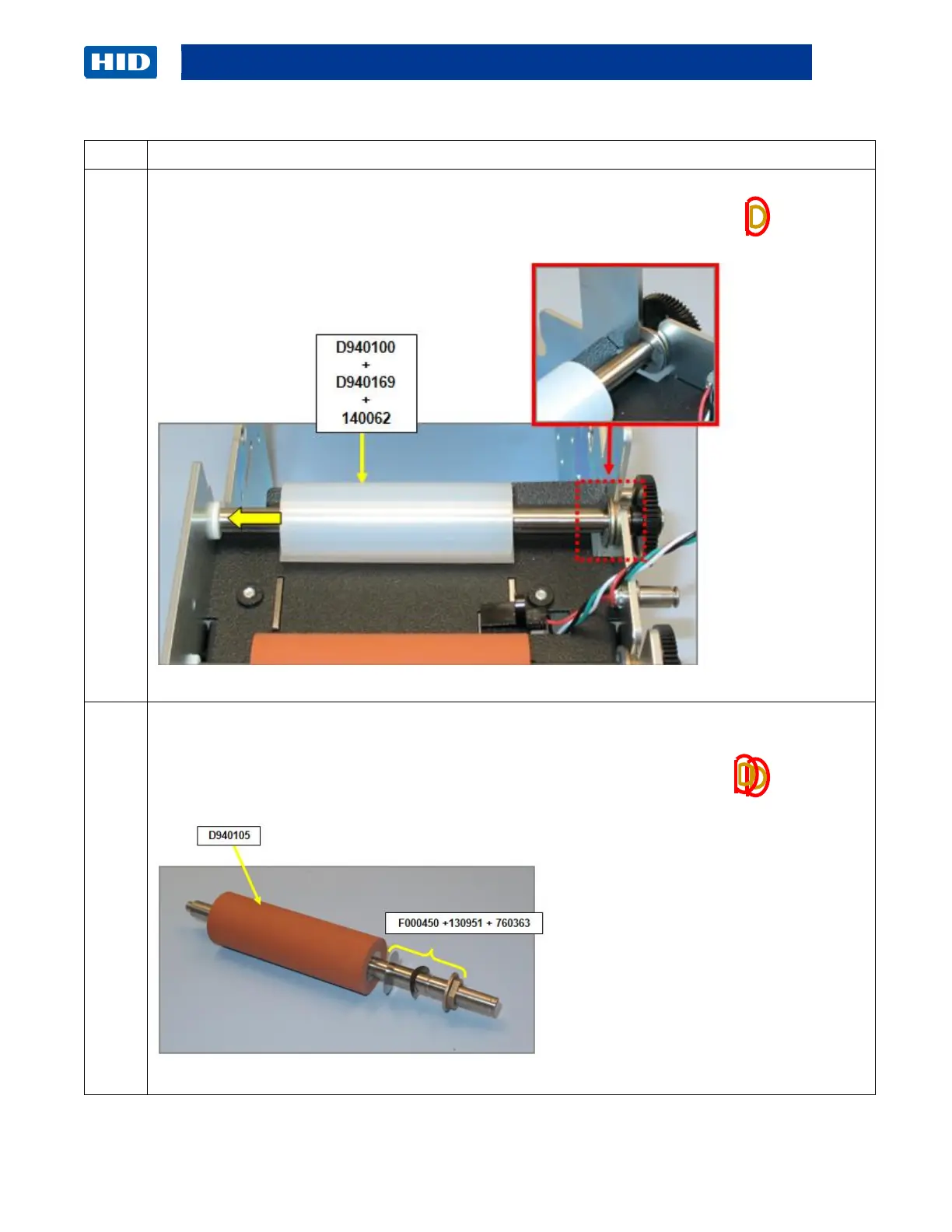

Bottom Roller #3 Cleaning Roller (D940100 with bearing D940169)
Ensure the flat on the bearing is aligned with the flat in the Sideplate hole.
Verify roller rolls freely
8
Bottom Roller #4 Transfer Roller ( D940105)
Long end goes to the LEFT side.
Ensure the flat on the bearing is aligned with the flat in the Sideplate hole.
(Continued next page)
(continued next page)
