FARO
®
Laser Scanner Manual
50
Chapter 6: Getting Started

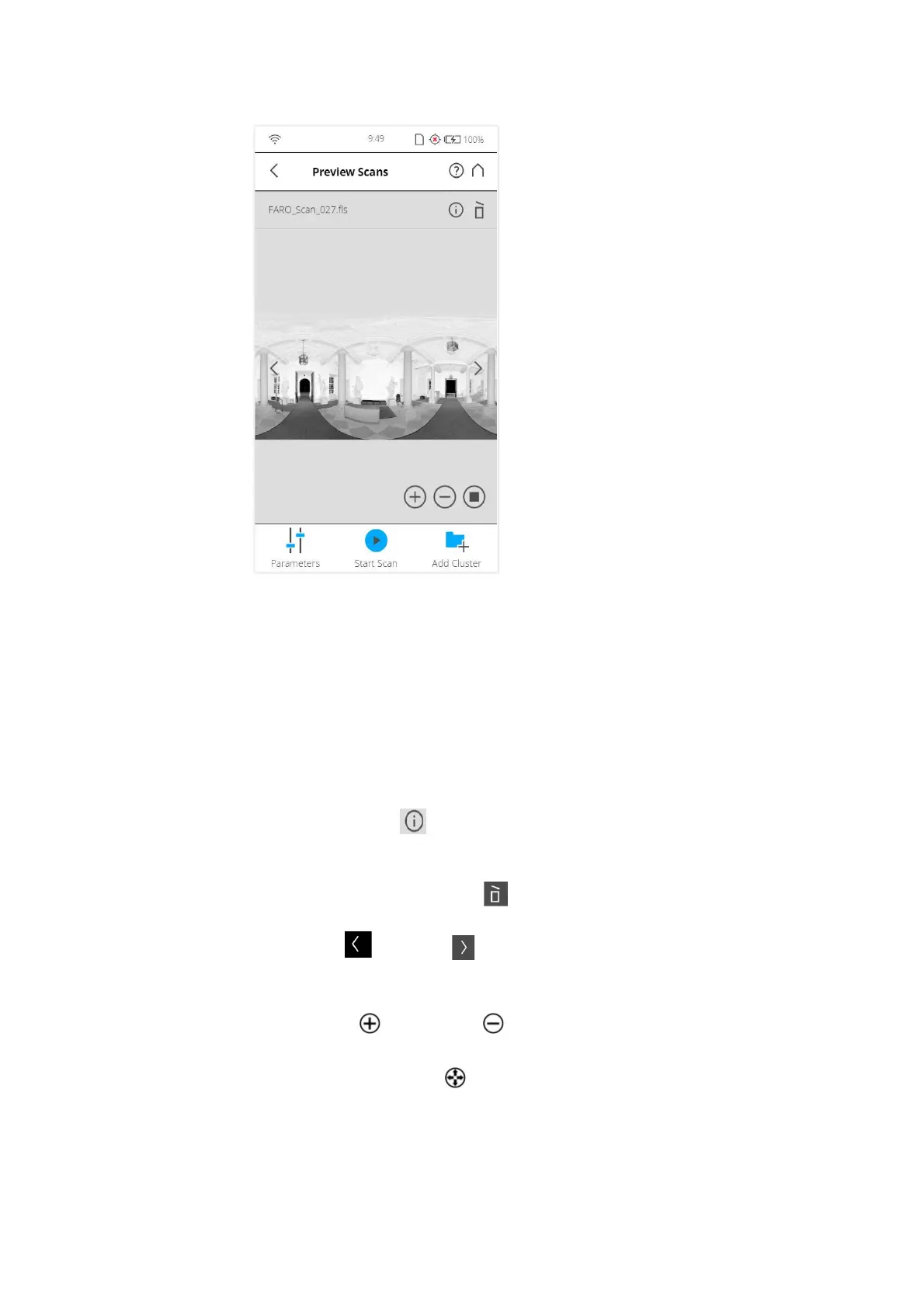

Figure 6-32: Scan Preview
The scan preview shows a grayscale picture of the captured scan to verify the
scan itself and to check if all objects (e.g., targets) are clearly visible. This
preview does not show color.
Parameters button - Tap to change the scanning parameters for the next
scans.
Start Scan button - Start a scan.
Tap the Info button in the scan preview to view the scan properties.
Resume Scan button - Resumes the previous scan. Displayed only when a
scan is paused. Delete button - Delete the viewed scan file.
Use the left and right arrow buttons to browse through already
captured scans.
Use the plus and minus buttons to zoom in or out.
The Reset Zoom button is only visible when you zoom into the scan
picture. With this button the scan picture can be zoomed back to its original
size.
When zoomed in you can move the zoomed picture by dragging it with your
fingers in any direction.
