70 Planning the electrical installation
AC cabling
Note: As standard, the inverter is supplied with blind plates. The cable lead-
throughs are option +H357.
The 18 cable lead-throughs limit the
maximum cable quantity for each phase to
6.
The permitted cable outer diameter is
8…67 mm/lead-through. The minimum
cable size is determined by the local rules.
The bending radius may limit the
termination of AC cables for thick power
cables. Especially if the cables are fed into
the cabinet from the rearmost cable lead-
throughs and terminate to the uppermost
busbar.

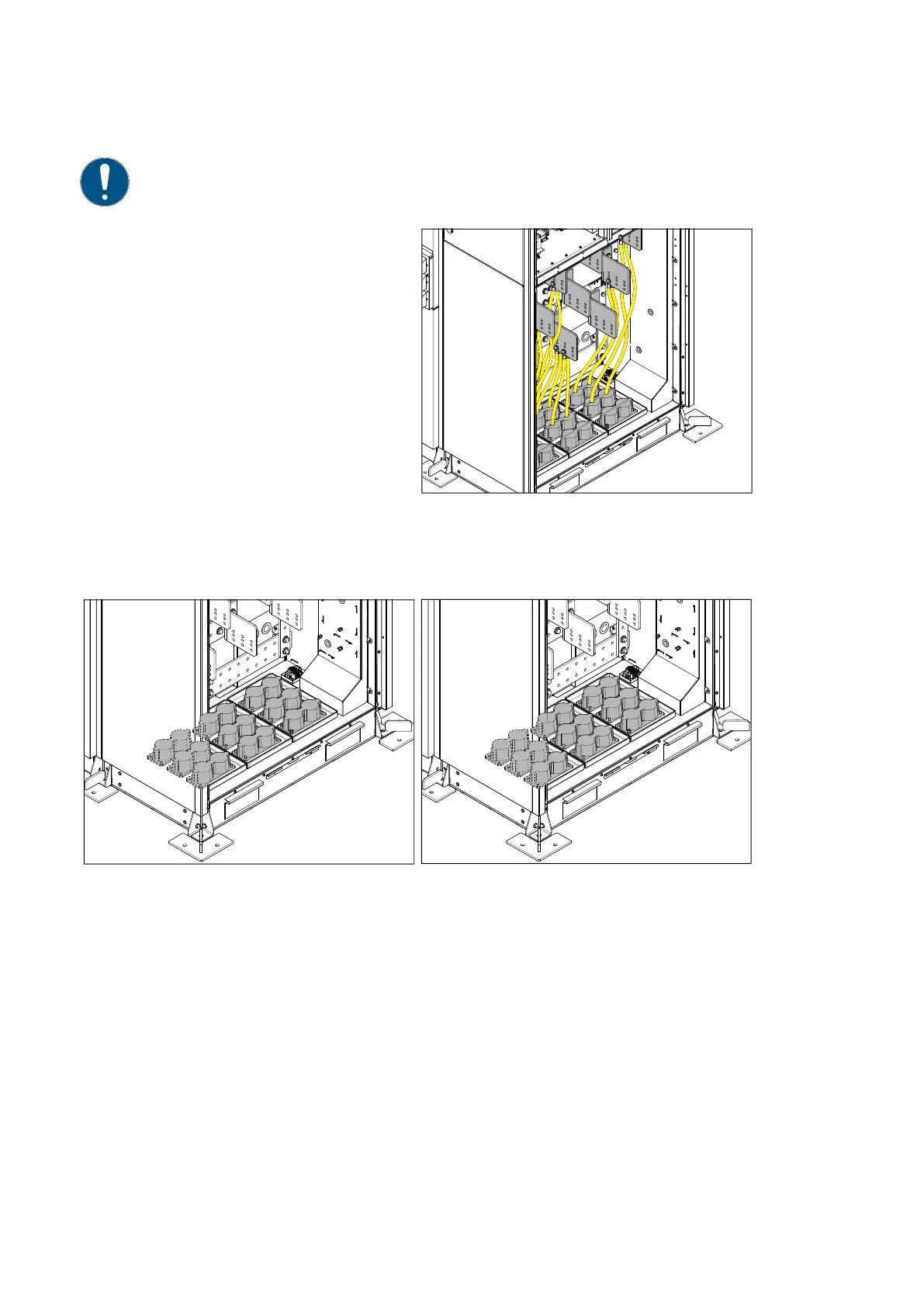

When you install the AC cables in the AC
section, use one of the following cabling
methods:
AC cabling method 1
AC cabling method 2
L1
L1
L1
L1
L1
L1
L2
L2
L2
L2
L2
L2
L3
L3
L3
L3
L3
L3
L2
L1
L2
L1
L2
L1
L2
L1
L2
L1
L2
L1
L3
L3
L3
L3
L3
L3
