7-4 Section 7: Model 9500B — Specifications
Final Width = 215mm
* = For High Edge, the Duty Cycle is different, but the specified edges correspond to those shown above.
0V
Specified
Edge
Specified
Edge
10% 90%
period
Rising Edge —
Low and Fast Edges*
0V
Specified
Edge
Specified
Edge
10% 90%
period
Falling Edge —
Low and Fast Edges*

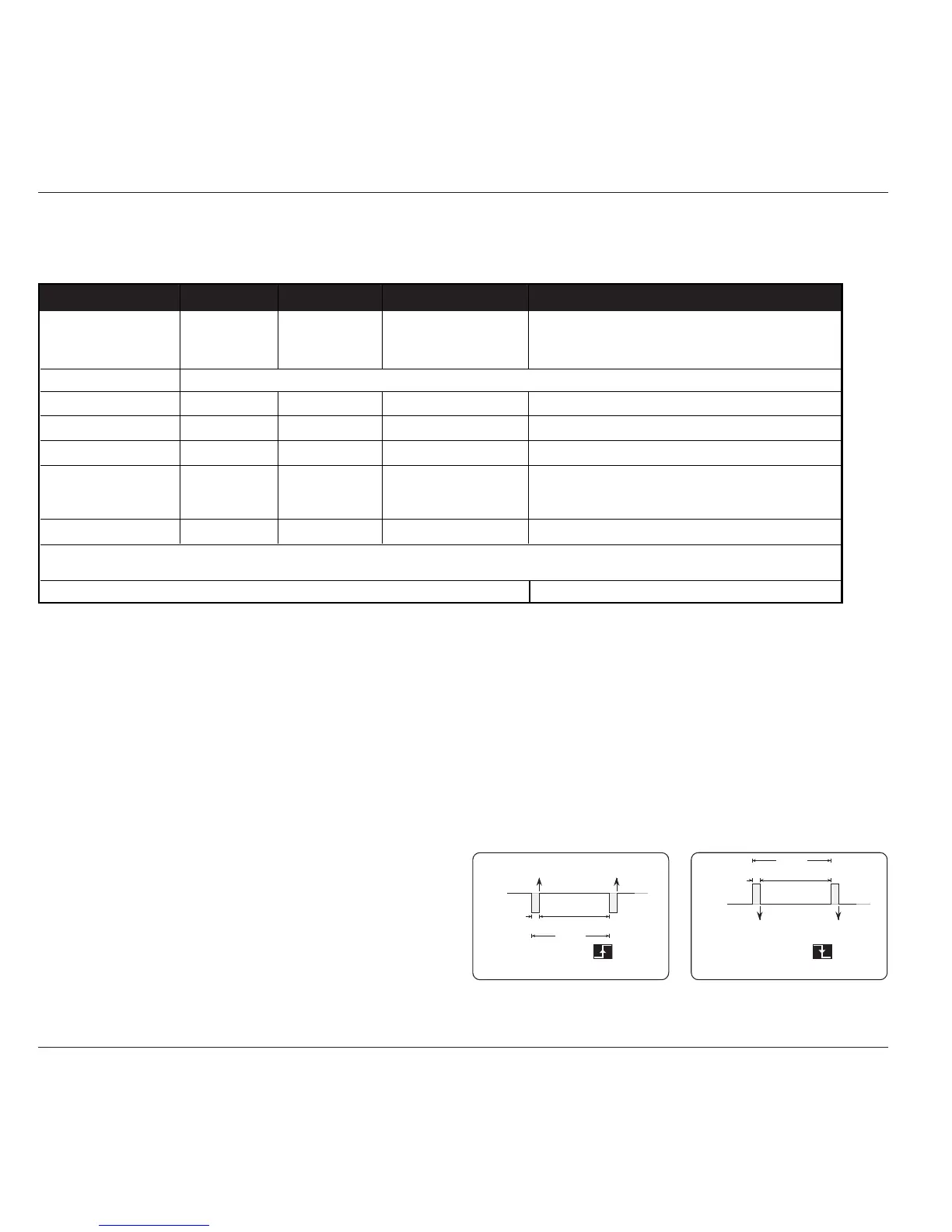

7.5 Timing Marker Function Specification
Styles: Square Pulse Narrow Triangle Sine (extension of Square)
Period 9.0091ns to 55s 900.91ns to 55s 900.91ns to 55s 450.5ps to 9.009ns for 9500B/1100 or 9500B/3200
909.1ps to 9.009ns for 9500B/600
180.19ps to 9.009ns for 9500B/3200 with 9560 Head
Ranging: Time/div ranging 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuously variable
Period Deviation Range: ±45%
Rise/fall Times: 1ns typ.. 1ns typ. 2.5% of period NA
Timing Accuracy: ±0.25ppm
Timing Jitter: <10ps pk-pk (<100ns)
(within time window) <100ps pk-pk (<100us)
<1000ps pk-pk (<10ms)
Duty Cycle: 50% 5% 5% NA
Amplitude: 100mV, 250mV, 500mV and 1V pk-pk symmetrical about ground
NB 9500B/1100, 500mV pk-pk max for period <1ns
Subdivision: Every 10th marker can be set to higher amplitude NA
Line frequency timing markers are available in the Square Wave function.
Jitter wrt Line zero crossing: <±20us pk-pk.
Frequencies above 500MHz are not recommended for 1MΩ input applications.
The 9560 Head is restricted to 50Ω loads only.
7.5.1 Timing Marker ((Not available via 9550 Active Head))
