Section 1: Introducing the Model 9500B 1-1
Final Width = 215mm
Descriptions assume 9500B/1100
Section 1 The Model 9500B High Performance Oscilloscope Calibrator
1.1 About Section 1
Section 1 introduces the Model 9500B High Performance Oscilloscope
Calibrator. It is divided into the following sub-sections:
1.2 Introducing the Model 9500B Page
1.2.1 Variants .............................................................. 1.1
1.2.1 Functions ........................................................... 1.2
1.2.2 Operating Modes ............................................... 1-3
1.2.2.1 Manual Mode .................................... 1-3
1.2.2.2 Procedure Mode................................ 1-3
1.2.2.3 Configuration Mode .......................... 1-3
1.2.2.4 Calibration Mode .............................. 1-3
1.2.2.5 Test Mode ......................................... 1-4
1.2.3 System Operation .............................................. 1-4
1.2.3.1 Remote Interface ............................... 1-4
1.2.3.2 Portocal II.......................................... 1-4
1.3 Model 9500B Associated Products and Options 1-4

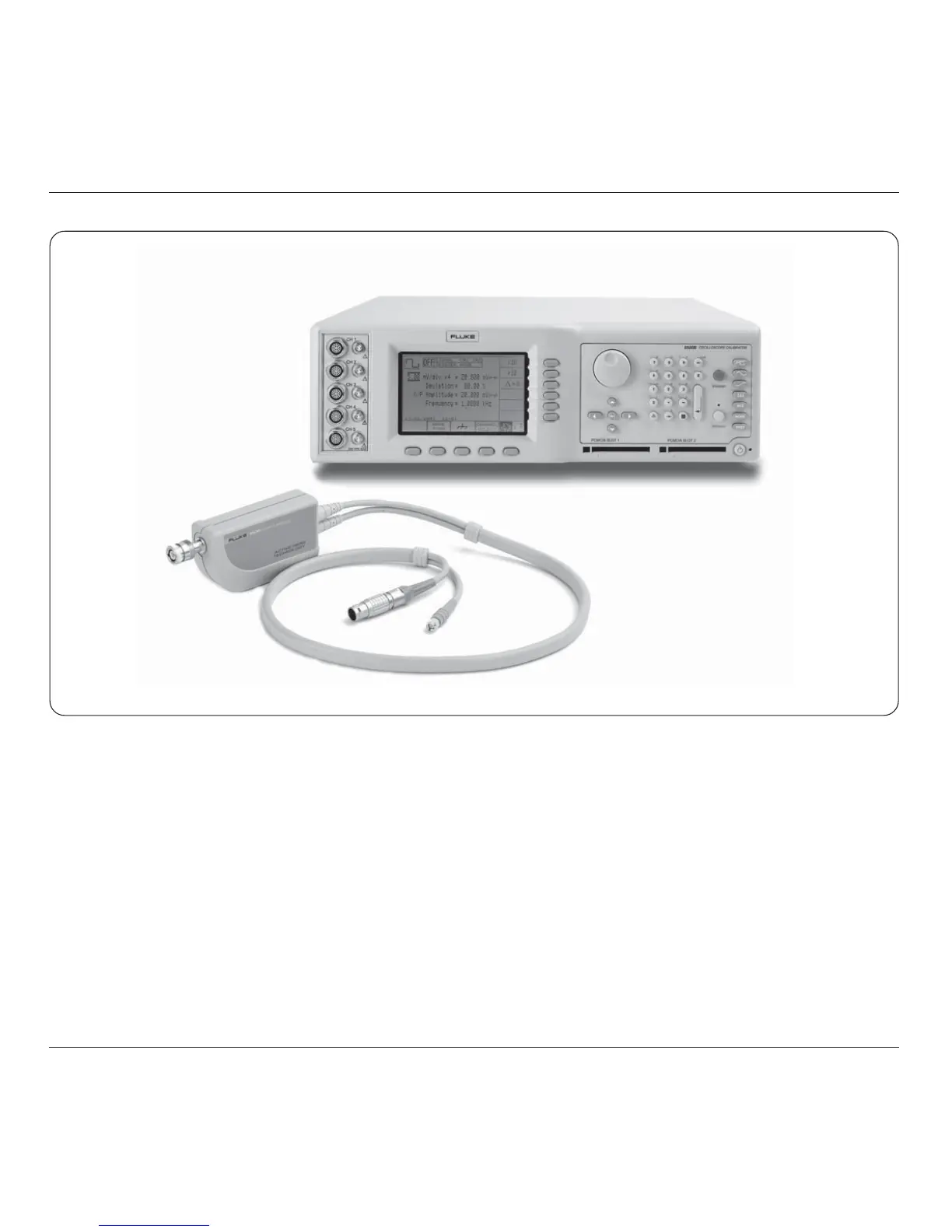

Fig. 1.1 General View of Model 9500B with an Active Head
1.2 Introduction to the Model 9500B
1.2.1 Functions
The Model 9500B is a state-of-the-art calibrator offering oscilloscope test and
calibration capabilities from a single source, providing wide functionality.
(Variant 9500B/1100 is described — for other variants, refer to their specifications
in Section 7.) The functions listed overleaf are not necessarily available via
every model of Active Head.
