PostBase Vision
32
The components are mechanically coupled
with catches (each on the right housing side)
and slots (each on the underside at the left)
and are secured in position relative to each
other in this way.
• Lift the feeder slightly, align it to the ramp
and lower it carefully. The catches on the
ramp must snap into the slots on the
Feeder.
• Couple the feeder to the postage meter in
the same way.
• Remove the protective film from the trans-
parent cover flap.

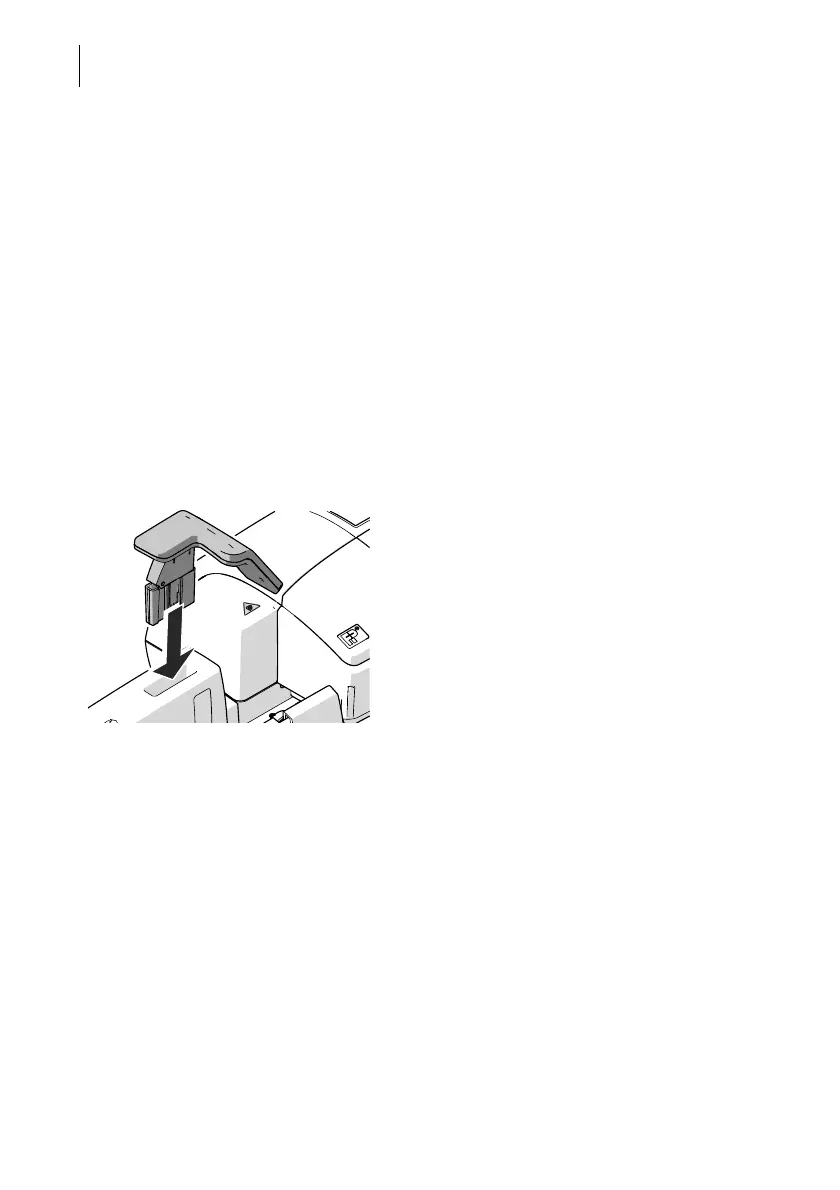

Mounting the pendulum
• Insert the base of the pendulum into the
fixture of the ramp.
• Press down firmly on the pendulum until it
clicks into the shaft.
