PRE STARTING CHECKS
4. Open air pre-cleaner flapper valve, and check
for debris (see Figure 59).
Flapper Valve

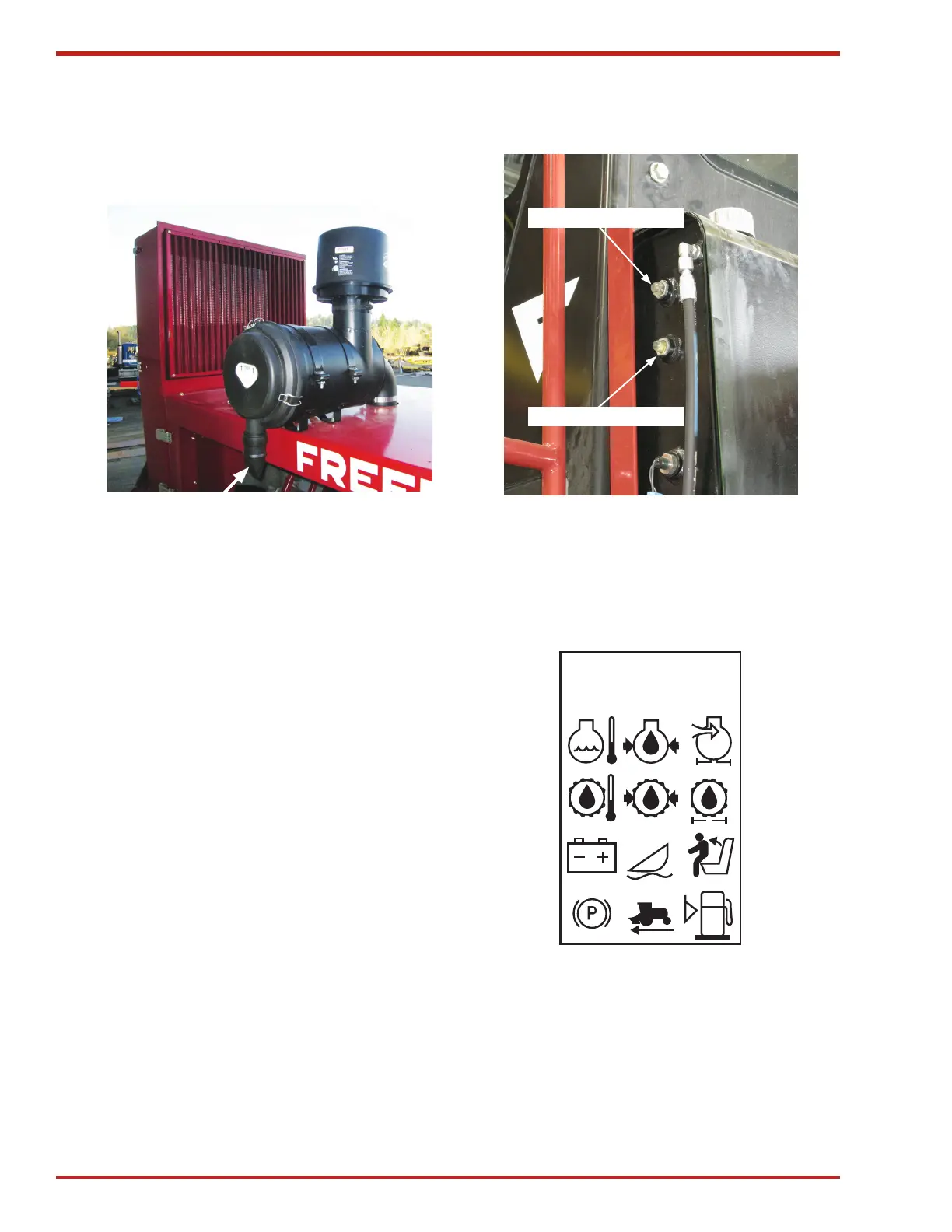

Figure 59. Flapper Valve
5. Check the hydraulic oil level in the tank located
behind the operator's cab. The oil level must
be between the two sight gauges (see Figure
60). Oil should always be visible in the lower
sight gauge and never visible in the upper sight
gauge, when parked on level ground.
If there is no oil visible in the lower sight gauge,
add the appropriate oil immediately (see "Fuel,
Coolant And Lubrication" on page 90) until
you can see oil in the lower sight gauge. Stop
adding oil before it becomes visible in the upper
sight gauge.
NOTE: Check hydraulic oil level with baler
on level ground and the pickup in the down
position.
Upper Sight Gauge
Lower Sight Gauge
Figure 60. Hydraulic Oil Site Gauge
(tank may vary between models)
6. Perform bulb check to insure all warning lights
and audible alarms are functioning. (See
"Checking Warning Lights" on page 50.)
Figure 61. Warning Display Panel
