10. Twine from the top guide bracket on the side of
the bale chamber routes first through the guide
mounted at the rear of the left needle guard,
then to the needle holder plate at the back of
the left needle (see Figure 156). The middle
twine goes directly to the middle needle holder
plate and the twine from the bottom guide goes
directly to the right needle holder plate.
Twine Tensioners
To Left
Twine Needle
To Right
Twine Needle
To Center
Twine Needle
Twine Box
Guide Bracket
11. Feed each strand of twine through the twine
holder plate on the bottom side of each needle,
running over the two (2) roll pins to hold it in
place.
12. Feed the twine through the tip of each needle
then pull the twine towards the back of the
baler and securely tie it to the baler frame.

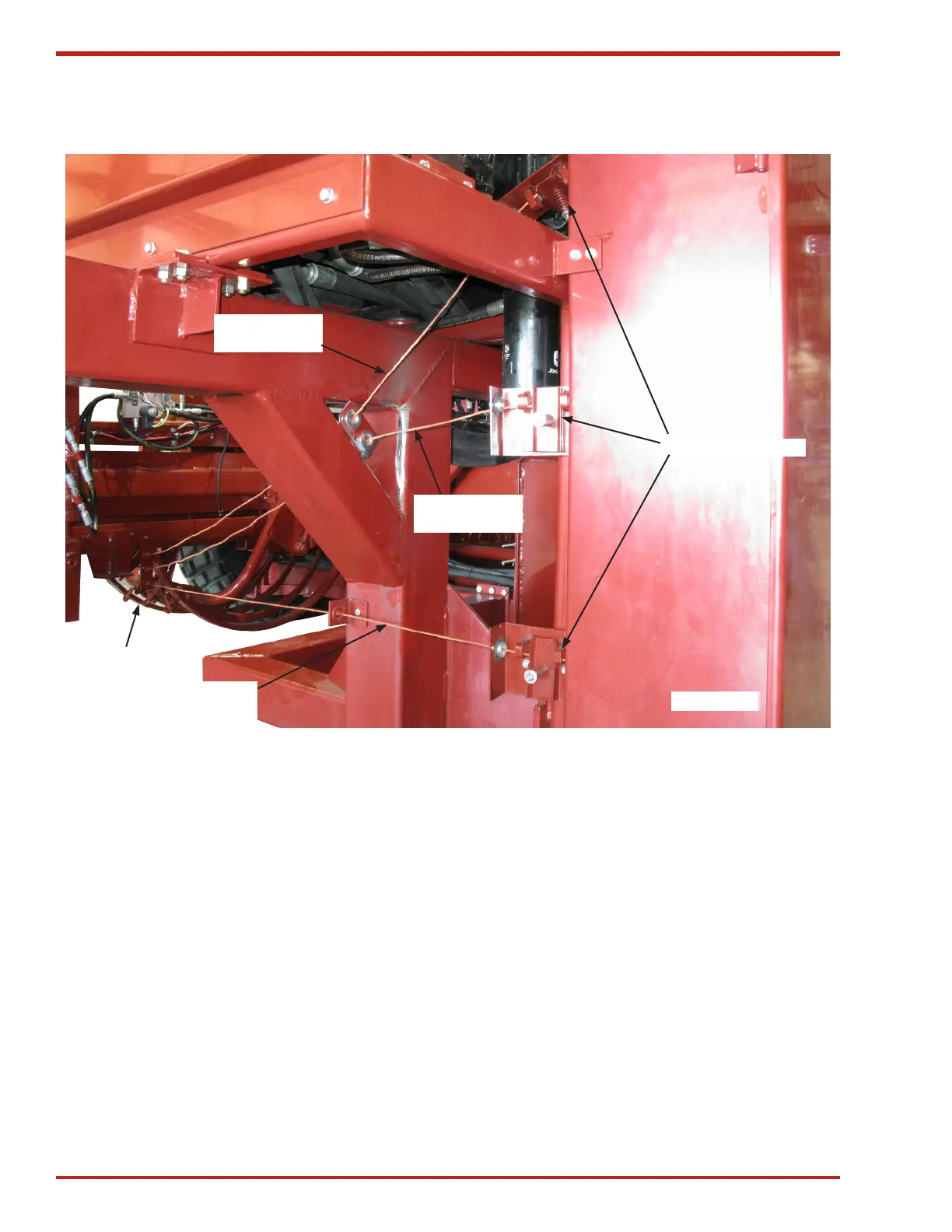

Figure 156. Twine Routing From Twine Box To Bale Chamber
