TWINE ROUTING
13. After the knotter ties the first bale, the tails of
twine should be removed from the frame.
NOTICE
Knots will form and may stay on the bill hooks
after the first tie cycle and cause the twine to
tangle in the next tying cycle. This happens
because the first bale may not be heavy
enough to pull the knots off of the bill hooks.
Remove the knots before the next tie cycle.
Twine Secured
To Frame
Roll Pins
Needle
Holder Plate
Guide
Bracket
From Top Tensioner
From Bottom Tensioner

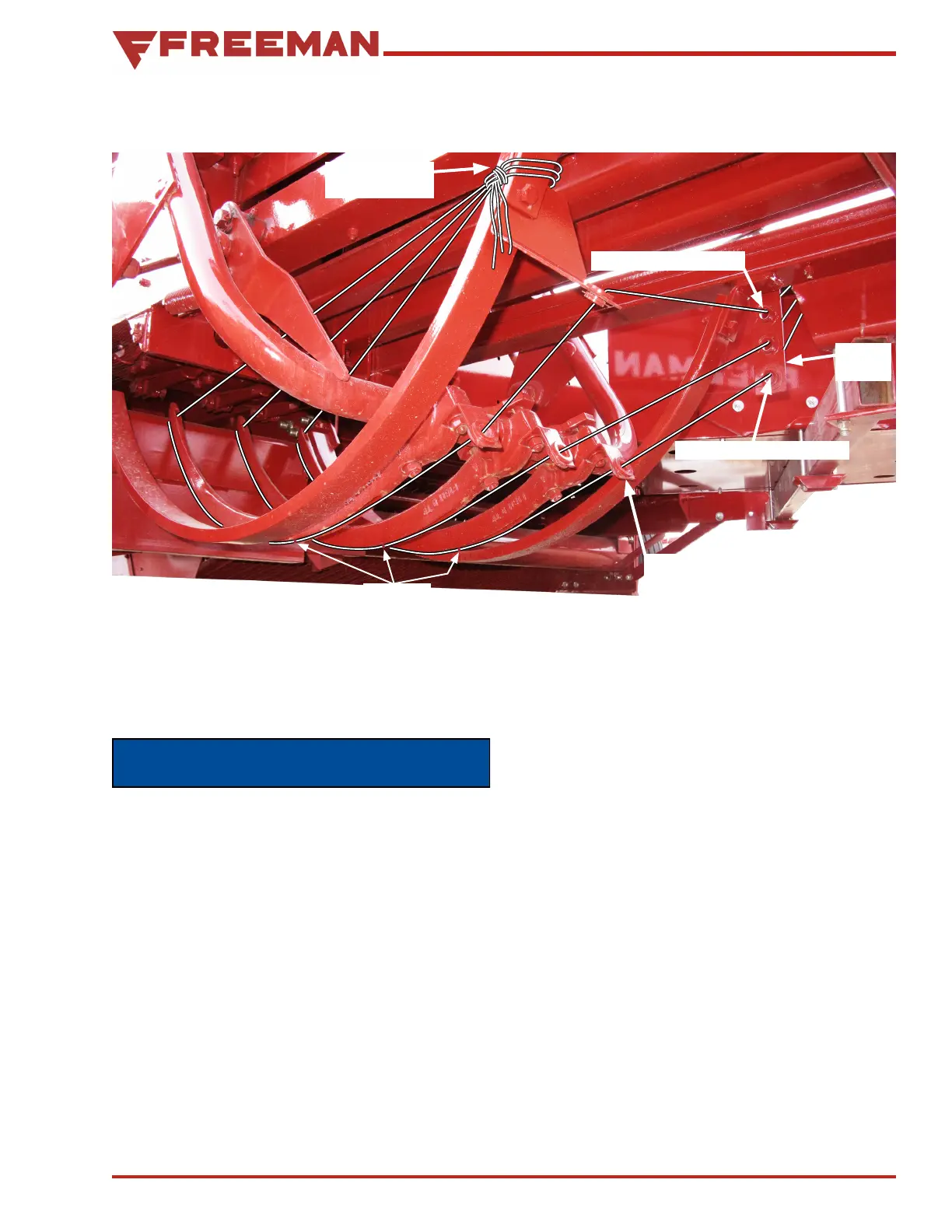

Figure 157. Twine Routing Through Needles (3 tie shown)
Please refer to your Engine Manufacturer's Opera-
tor's Manual for all engine information.
For diesel fuel, lubricity of diesel fuel, diesel engine
coolant, diesel engine oil, see your Engine Manu-
facturer's Operator's Manual.
IMPORTANT! Do not mix used diesel engine
oil or any other type of lubricating oil with
diesel fuel.
IMPORTANT! Improper fuel additive usage
may cause damage on fuel injection equip-
ment of diesel engines.
