Replacing Consumables
421
Maintenance
14

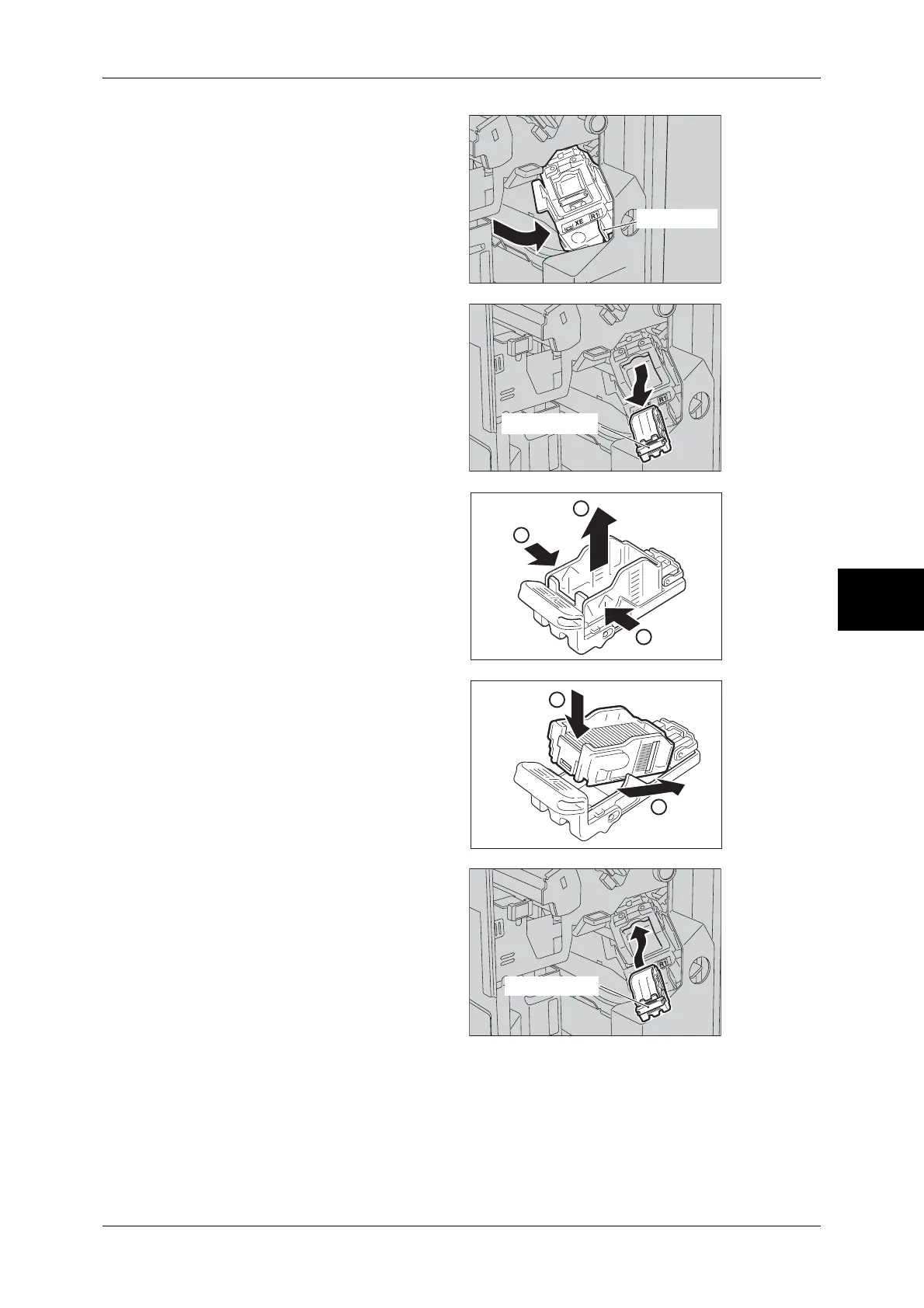

2 Grip the lever R1 of the staple
cartridge holder, and pull out the
holder to the right, towards you.
3 Take out the staple cartridge holder
by gripping the orange lever.
Note • The staple cartridge is firmly
inserted. When taking the
staple cartridge out of the
machine, strongly pull it out.
4 Pick the empty staple case with
your fingers (1), and then remove
the case from the cartridge (2) as
shown in the figure.
5 Prepare a new staple case. Insert
the front of the staple case into the
staple cartridge (1), and push the
rear of the case to set (2).
6 Hold the orange lever to push the
staple cartridge into the machine
until you hear it click into place.
7 Close the front cover of the finisher.
Note • A message will be displayed and the machine will not operate unless the front cover is
completely closed.
Lever (R1)
Orange lever
1
1
2
1
2
Orange lever
To Next Page
