Fuji Xerox ApeosPort-II C4300 - Paper Jams at 4 B in the Finisher (for C Finisher with Booklet Maker)

To Next Page

To Previous Page

15 Problem Solving

540

Problem Solving

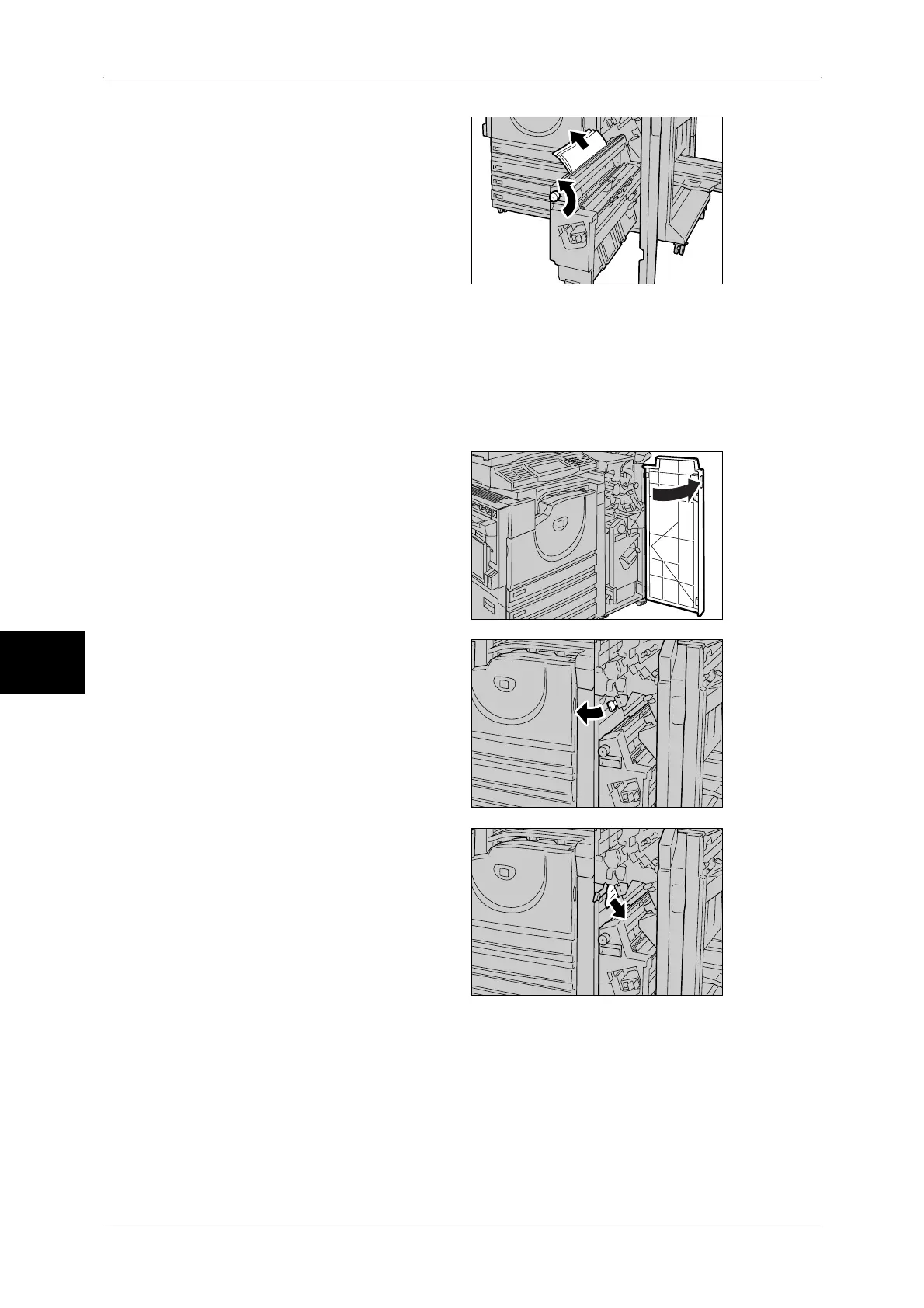

3 Turn the wheel 4a to the left to

remove all the jammed paper.

4 Return the unit 4 to its original position.

5 Close the front cover of the finisher.

Note • A message will be displayed and the machine will not operate unless the front cover is

completely closed.

Paper Jams at 4b in the Finisher (For C Finisher with Booklet Maker)

1 Open the front cover of the finisher.

2 Move the lever 4b to the left.

3 Remove the jammed paper if there

is.
